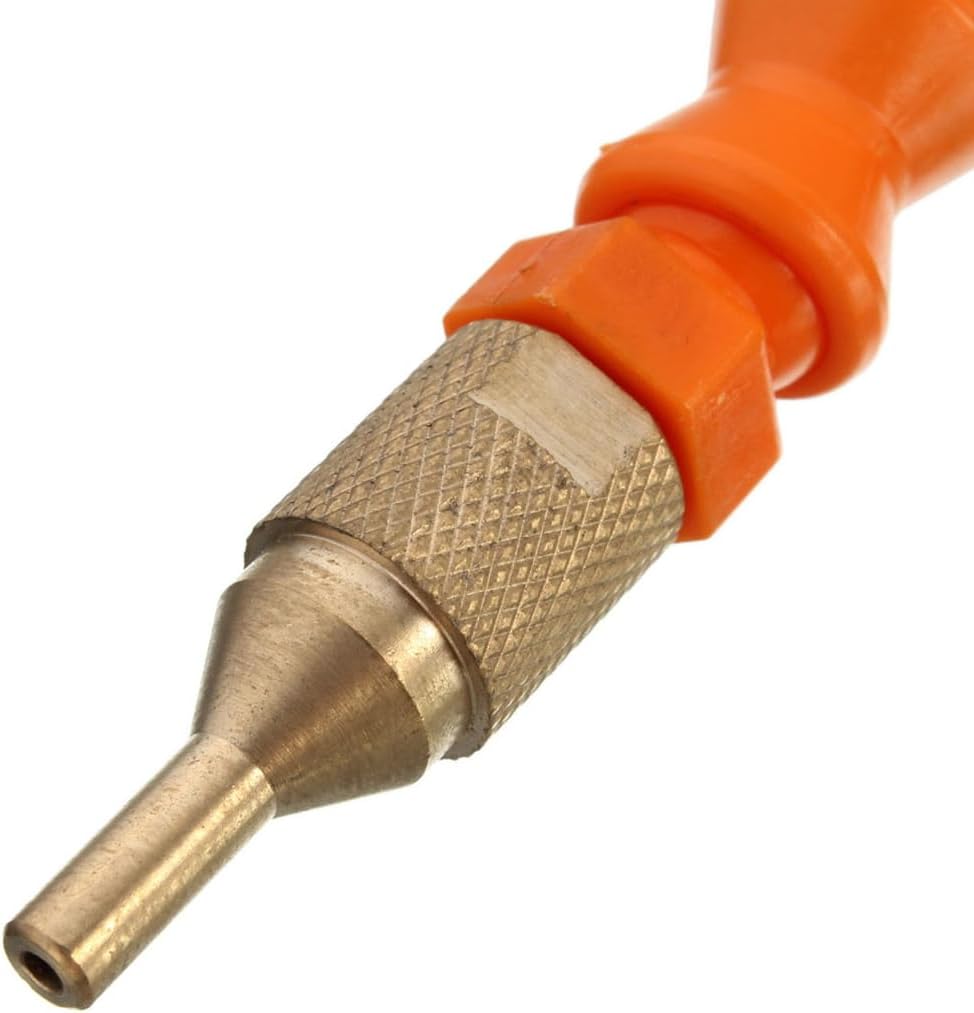

OriGlam Mist Coolant Lubrication Spray System for Metal Cutting Engraving Cooling Sprayer Machine for Air Pipe CNC Lathe Milling Drill

Features: Cooling Pipe Length: 300 mm PU Tube Length: 1.5 m Oil Outlet Port Size: 4 mm Air Inlet Port Size: 8 mm Type: Coupling Check Valve: Yes Filter: Yes Product Name: 320mm Fully Sealed Mist Coolant Lubrication Spray System Features: - Fully sealed structure design. The air is directly sealed inside the pipe, and will not leak at the contact surface when bent at will, real realize no air leakage. - No air leakage, stable air suction. Ensure that the machine will not restart frequently due to high gas consumption, save energy and long service life. - Easy to use. Air flow and spray mist volume adjustable design, easier to use on different processing conditions. - Can be used to blow away metal fragments, making your work safer; A lot of water problem solving tools, easier to clean up. - Can be installed on CNC lathes and milling machines to improve processing capacity and cutting speed, Save time, reduce machining cost and tool wear. - In the liquid without pressure output required to ensure that the air pressure in the range 5-7KGF / CM2 (atomization and gas, associated gas pressure). - Application to: metal cutting engraving, cooling stone metal ceramic tile engraving machine, CNC lathe milling drill machine, 8mm air pipe. Common Product Problems： - Question 1: I find it produces a mist, not a fine spray. Cause: Too much atomization. Solution: Turn down your breath, you need to give some air pressure to the liquid at the same time as the gas supply. - Question 2: Coolant doesn't seem to be sprayed as much. Cause: Need to pressurize the fluid. Solution: Turn the gas down a bit, and give the liquid a certain amount of power. Maybe you need a pressure barrel. - Question 3: The valve is not fully closed. There is some air and some liquid making the mess. Cause: Water tank to prevent too high. Solution: The liquid is left in the pipeline, so that it can start faster next time, otherwise it will take a while. You can lower the tank a little bit lower than the sprinkler. Note: - Be sure to use filtered clean air source and clean liquid spray to avoid clogging. - Please predict the location of the sprayer hole first, so that the nozzle is too far away from the cutter. Material: Aluminum + Copper +Plastic Air Pressuer: 0.3-1.0 MPa Liquid Viscosity: 0-88 cst Input Tube: 150 cm Output Tube: 30 cm Product Weight : 180 G / 6.35 Ounces Product Dimensions (L*W*H) : 180*135*20 MM / 7.09*5.31*0.79 Inches Package Include: 1 x Mist Coolant Spray System

• Fully sealed structure design - The air is directly sealed inside the pipe, and will not leak at the contact surface when bent at will, real realize no air leakage.
• Working Safer - Gas processing chips are blown away, working safer; A lot of water problem solving tools, easier to clean up.
• Save Time - Not only increases the machining cutting speed, save time and reduce processing costs and tool wear.
• Easy To Use - Air flow and spray mist volume adjustable design, easier to use.
• Widely Used - In the liquid without pressure output required to ensure that the air pressure in the range 5-7KGF / CM2.
