Peristaltic Pump Dosing Pump 12V 24V, High Flowrate for Aquarium Lab Analytical(Silicone tube,24V)

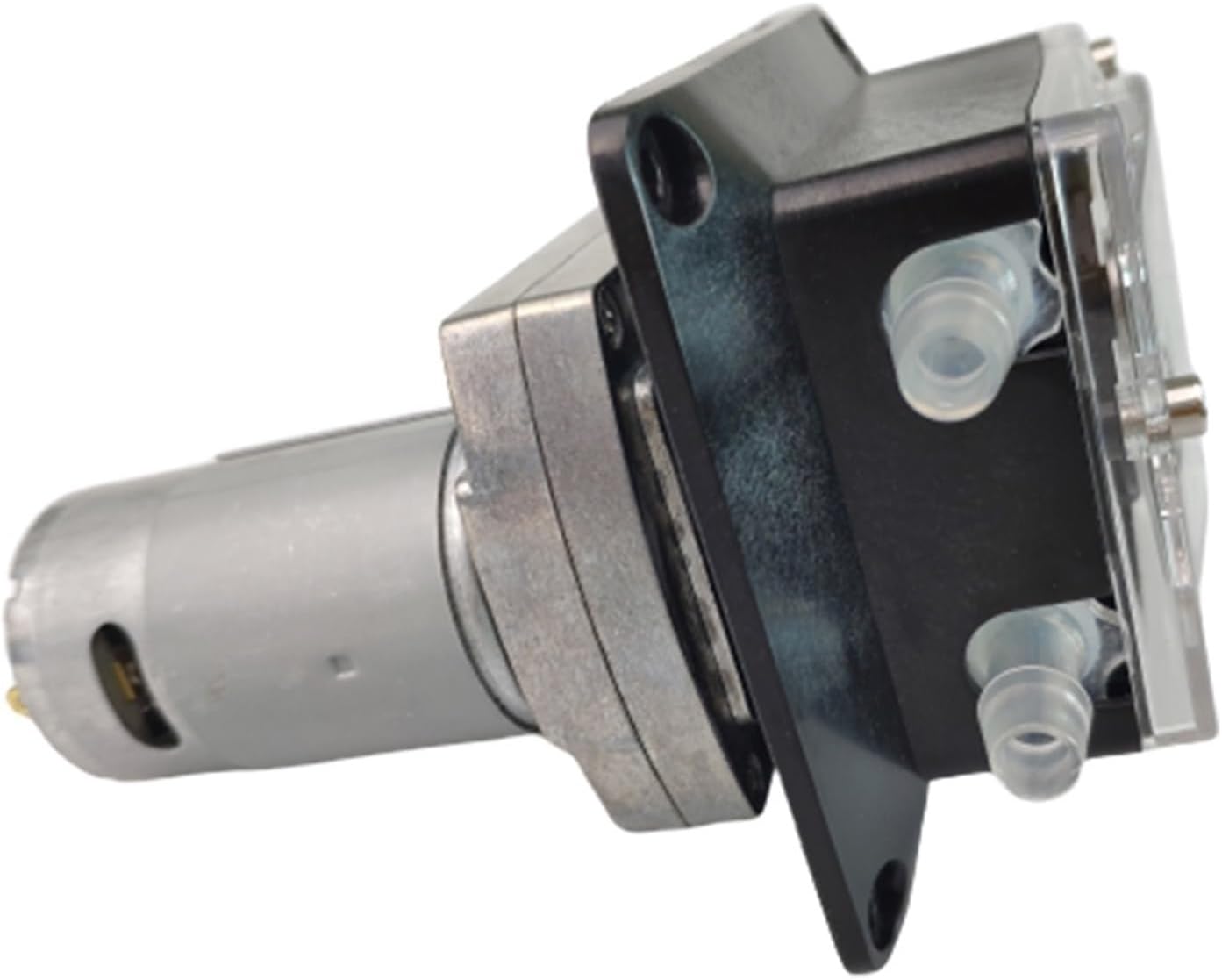

CablesG1016 is the peristaltic pump of big flowrate that is over 1500ml/min at rated voltage 12V. This pump is being widely used in detergent delivery,analytical instrument,printing equipment,food machinery ect.Product detailsTube material: transparent food-grade silicone tube for peristaltic pumpTube specifications:7.9*11.1mmTube life: >200 hours, replaceableRoller: two rollersCorrection wheel: four rollers to prevent deviation of the pump tubeMotor: gear motorNoise: 65dbWeight: 0.7KG<;80%Medium flow direction: depends on the positive and negative connection of the motor, the positive and negative terminals can be selected arbitrarilyProduct materialsPump cover: PC Connector: PP Pump casing: PA66 Roller: PA66+MoS2Product flowrateThe pump can be running for a long time at 6~12V. Different voltage leads to different flowrate, as below.warning: when working voltage is at 12V~24V, it's overloaded. If you need pump work at 12V~24V in order to get much bigger flowrate, current restrict must be bigger than 2A, and the power supply must be greater than 48W.Voltage/flowrate chartThe flowrate increases linearly with the voltage. The diagram as follow, only for reference, there will be slight deviations in practice.Voltage/Flowrate Formula: flowrate =144.39*voltage-307.34 (for estimation only)Time/flowrate chartThe silicone tube gradually wears out as working, and the flowrate will slowly rise. After 20 hours' operation, the flowrate tends to be stable. The following chart is the "time/flowrate" at 12V rated voltage.Stable flowrate = initial flow rate* (1+20%) (for estimation only)==========Application : MeteringTheory : Rotary PumpStructure : Peristaltic PumpModel Number : G1016Power : ElectricStandard or Nonstandard : NonstandardPressure : High PressureUsage : Peristaltic PumpFuel : Electric
