Phased Array Scanner NDT R20-S Chain Scanner PAUT Inspection Weld Scanner Ultrasonic Inspection on Rail Transit

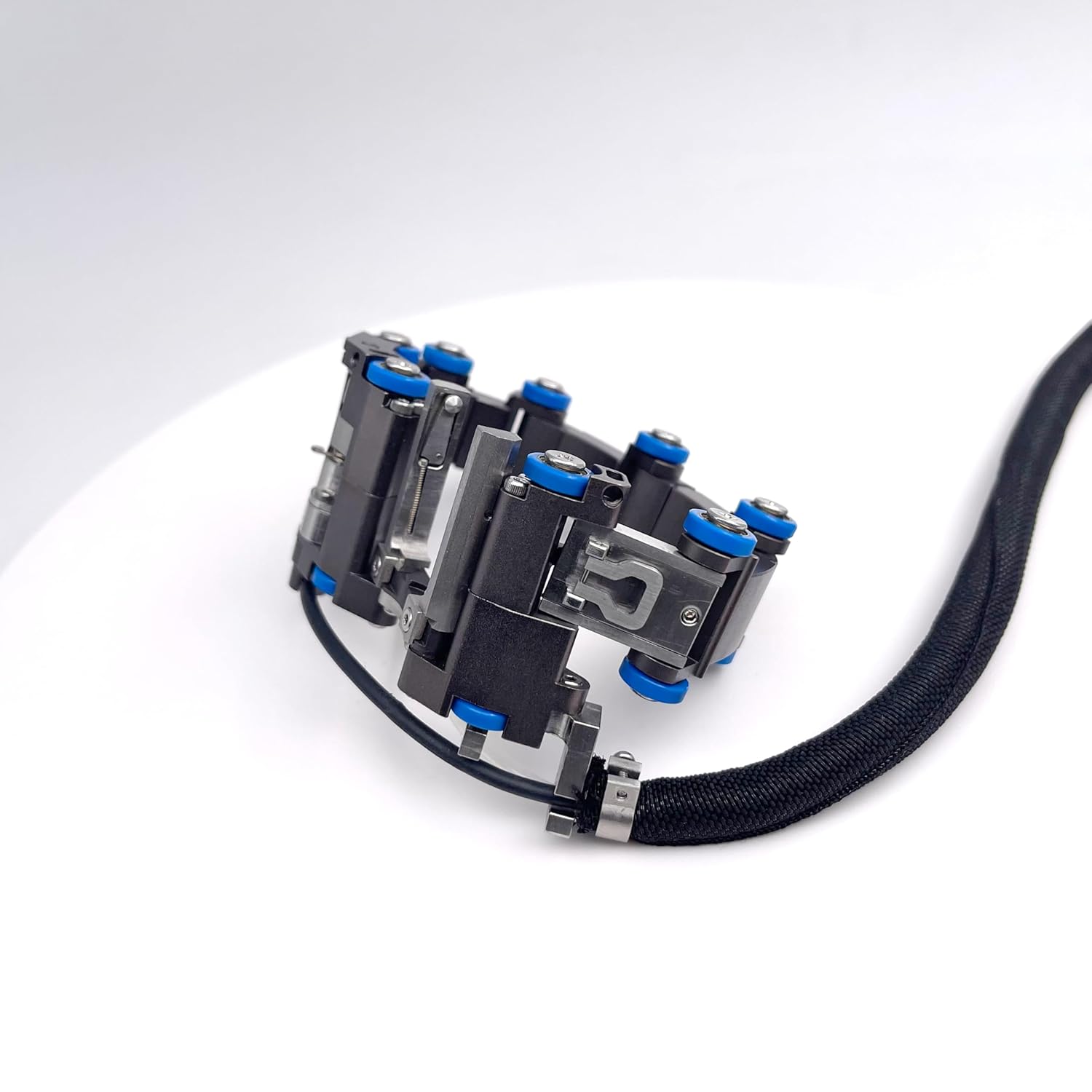

NDT R20-S Pipe Scanner – 0.84" to 12.8" OD (21.3–325.1 mm), Encoder Included, M15 Probe Compatible, Customizable The NDT R20-S is a versatile pipe scanning solution designed for NDT professionals working on small to medium diameter piping. It accommodates pipe outer diameters from 0.84" to 12.8" (21.3 mm to 325.1 mm), delivering reliable, encoder‑encoded inspection for weld inspection, corrosion mapping, and general pipe integrity assessments. Key Features Wide Pipe Diameter Range – Supports pipes from 0.84" to 12.8" OD (21.3–325.1 mm), covering multiple pipe sizes with one scanner. M15 Probe Compatible – Standard clamping frame fits M15 series probes (clamping width 22 mm) for secure and consistent coupling. Encoder Included – Comes standard with an encoder for position‑encoded data acquisition, enabling C‑scan imaging and full documentation. Customizable Configuration – Encoder cable length, connector type, and even the pipe diameter range can be customized to match your specific instrumentation and project requirements. Technical Specifications Model: R20-S Pipe Diameter Range: 0.84" – 12.8" (21.3 mm – 325.1 mm) Standard Probe Compatibility: M15 series (22 mm clamping width) Encoder: Included (standard) Customization Options: Encoder cable length, connector type, pipe diameter range Package Includes 1 x NDT R20-S Scanner with clamping frame 1 x Encoder (with standard cable) Probe sold separately unless otherwise specified. Why Choose the NDT R20-S? The R20-S combines a wide pipe range, built‑in encoder, and M15 probe support in a compact design. For specialized applications, customization options ensure you get a scanner tailored exactly to your workflow.

• Customizable Configuration: 1;To meet specific application requirements, the R20-S can be customized. Options include: 1 Encoder cable length – Tailored to your working environment 2 Connector type – To match your instrumentation (e.g., Lemo, BNC, etc.) 3 Pipe diameter range – Adjustments for specialized projects Contact us for custom orders to ensure the scanner fits your exact needs.
