Pneumatic Punching Machine, Pneumatic Press Transfer Punching Machine For Sheet Metal Holes,Footswitch(Doublebutton,200KG)

Pneumatic press more hygienic, clean! The use of advanced photoelectric protection technology, can achieve a substantial increase in safety performance, with the computer count and the program, can achieve unattended processing, greatly improving the efficiency of the work.Pneumatic punching machine adapt to electronics, instruments, cameras, jewelry, hardware and clothing, shoes and hats industry; Can be used for thin, strip, coil shear, punching, blanking, forming, bending, riveting and other processes; Suitable for non-ferrous metals, plastic parts, such as processing.Pneumatic presses Allows easy customization of punching speed, stroke, pressure, and time to accommodate different product requirements and models. The working pressure can be seamlessly adjusted between 0.4 and 0.7 MPa to meet specific needs.Parameters:Name: Pneumatic Punch Press MachineVoltage: 110V/220VPower Type: pneumaticPressure: 200 kg / 300kgThe die hole diameter: 1.6 cm /2.0 cmWorking Countertops Size: 15x13.5 cm / 15x15 cmTracheal diameter: 0.8x0.5 cm / 1x0.65 cmAdjustable cylinder size: 6.3x7.5-5 cm / 8x10-5 cmWorking Height: 20 cmOperations pressure: 0.4-0.7 MpaLayout form: verticalUsage Scope: in common useFor industry: in common usePackage contesnts:1 x Pneumatic Punch MachineNote:For your safety, when using manual switches(double button), this product requires both hands to press two manual switches to start the machine.

• ❤【Parameters】Voltage: 110 V/ 220V ; Power Type: Pneumatic; Pressure: 200 kg / 300kg; The Die Hole Diameter: 1.6 cm/2.0 cm; Working Countertops Size: 15x13.5 cm/15x15 cm; Tracheal Diameter: 0.8x0.5 cm/1x0.65 cm; Adjustable Cylinder Size: 6.3x7.5-5 cm/8x10-5 cm; Working Height: 20cm; Operations pressure: 0.4-0.7 Mpa.

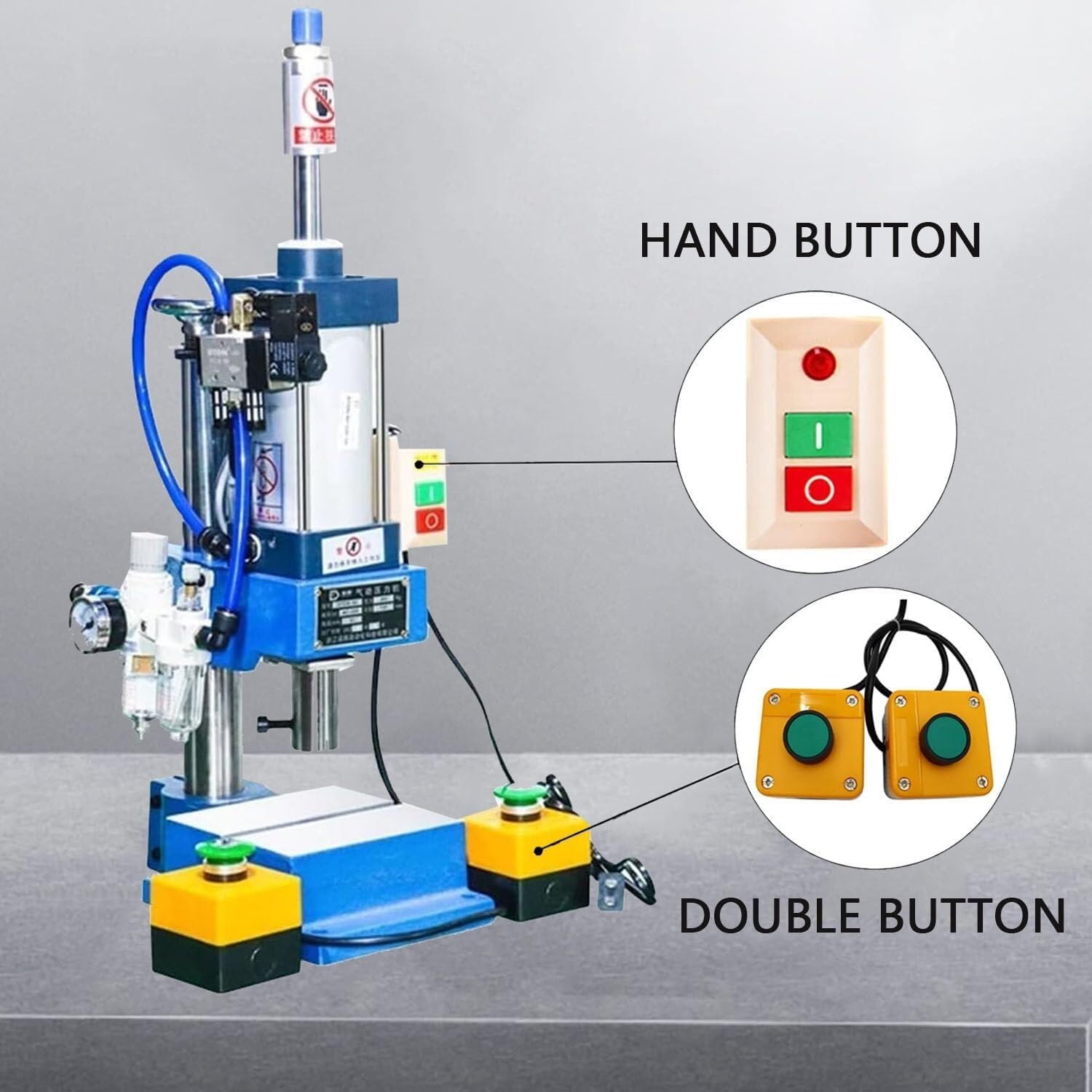

• ❤【Two Control Methods】It adopts microcomputer control system.You can choose hands button or foot switch control, can increase the protection device, temperature control and pressure sensors, control devices and control counter device in accordance with safety standards, ensure the safety of the operator.
• ❤【Saving power consumption】The pneumatic punch machine has a simple structure, easy to operates and is superior performance. The hydraulic system and electric backup system do not produce noise, which can save electricity consumption and reduce production costs.

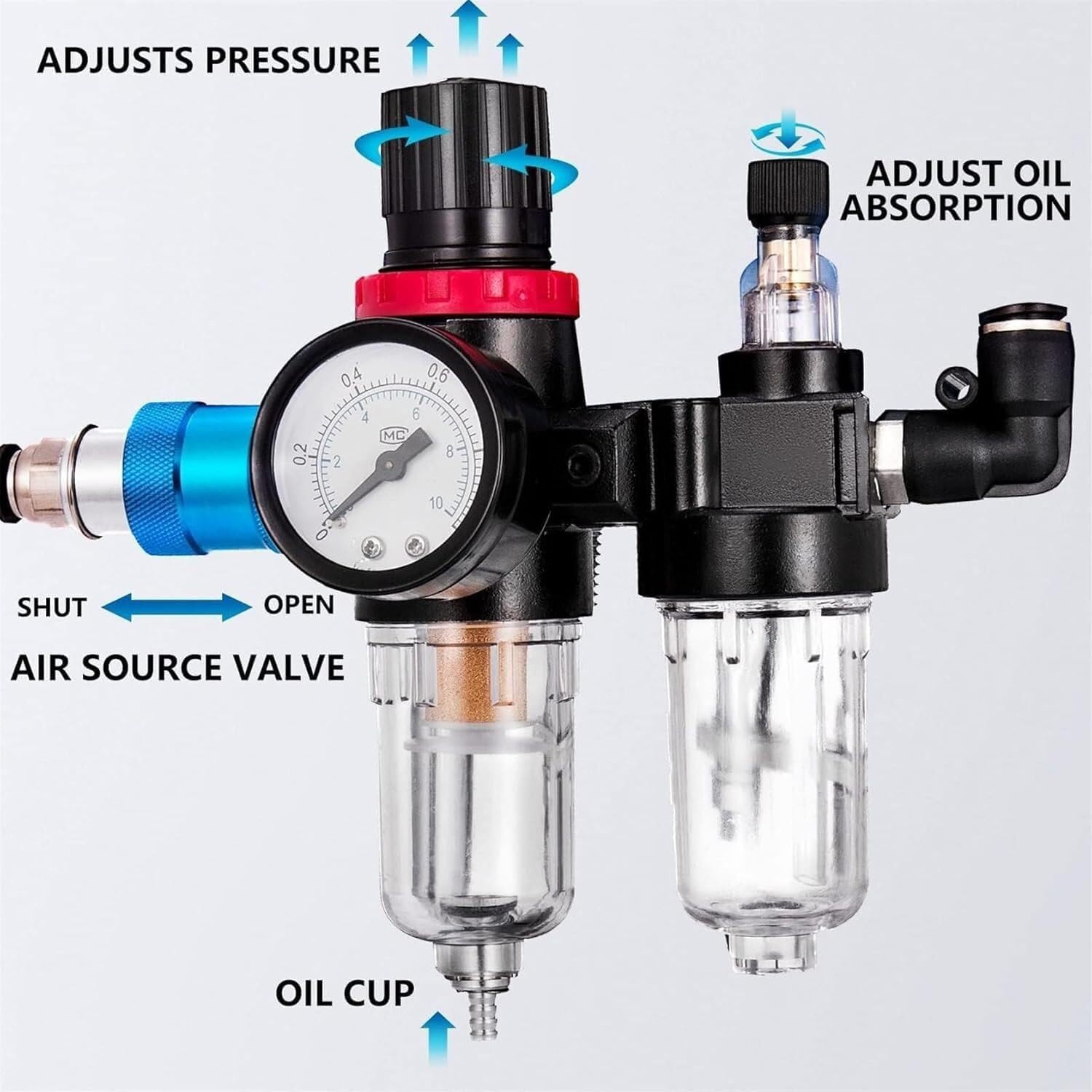

• ❤【Adjustable Design】Pneumatic presses can adjust the speed, pressure and stamping time according to different products or molds. Output is easily and quickly adjusted, only the air pressure needs to be adjusted to the desired pressure, thus realizing high output. Equipped with high accuracy rotational resistance guide rod and guide plate, will adapt to high speed precision impact load.
• ❤【Application】Pneumatic press takes compressed air as the power source, high efficiency, easy to operates and can reduce manual labor. It can be applied to integrated manual operations and automated assembly line. Suitable for electronics, electrical appliances, instruments, meters, cameras, watches, jewelry, hardware and garment, shoes and hats. It can punch, rivet, assemble, and cut materials.
