Pneumatic Rotary Actuator, 10A 20A 30A 190 Degree Adjustable Rotary Pneumatic Air Cylinder, M5 Air Cylinder, 0.1-1.0MPa, Angle Adjustment Range 0-190° (MSQB-10A)

Spec:Item Type: Rotary Pneumatic Air CylinderMaterial: Aluminum AlloyModel MSQB 10A MSQB 20A MSQB 30A Inlet Thread Hole M5x0.8 M5x0.8 G1/8 Allowable Motion Energy (J) 0.007 0.025 0.048 Stable Swing Time Adjustment Range in Action (S/90°) 0.2-1 0.2-1 0.2-1 Use Fluid Air Maximum Service Pressure 1MPa Minimum Service Pressure 0.1MPa Ambient Temperature and Operating Fluid Temperature 0-60℃ (Non Condensing) Angle Adjustment Range 0-190° Maximum Swing Angle 190° Cylinder Inner Diameter D15 D18 Port Size End Face Piping M5x0.8 M5x0.8 G1/8 Side Piping M5x0.8How to Use:Take out the product and use it after installation.PackageList:1 x Rotary Pneumatic Air Cylinder

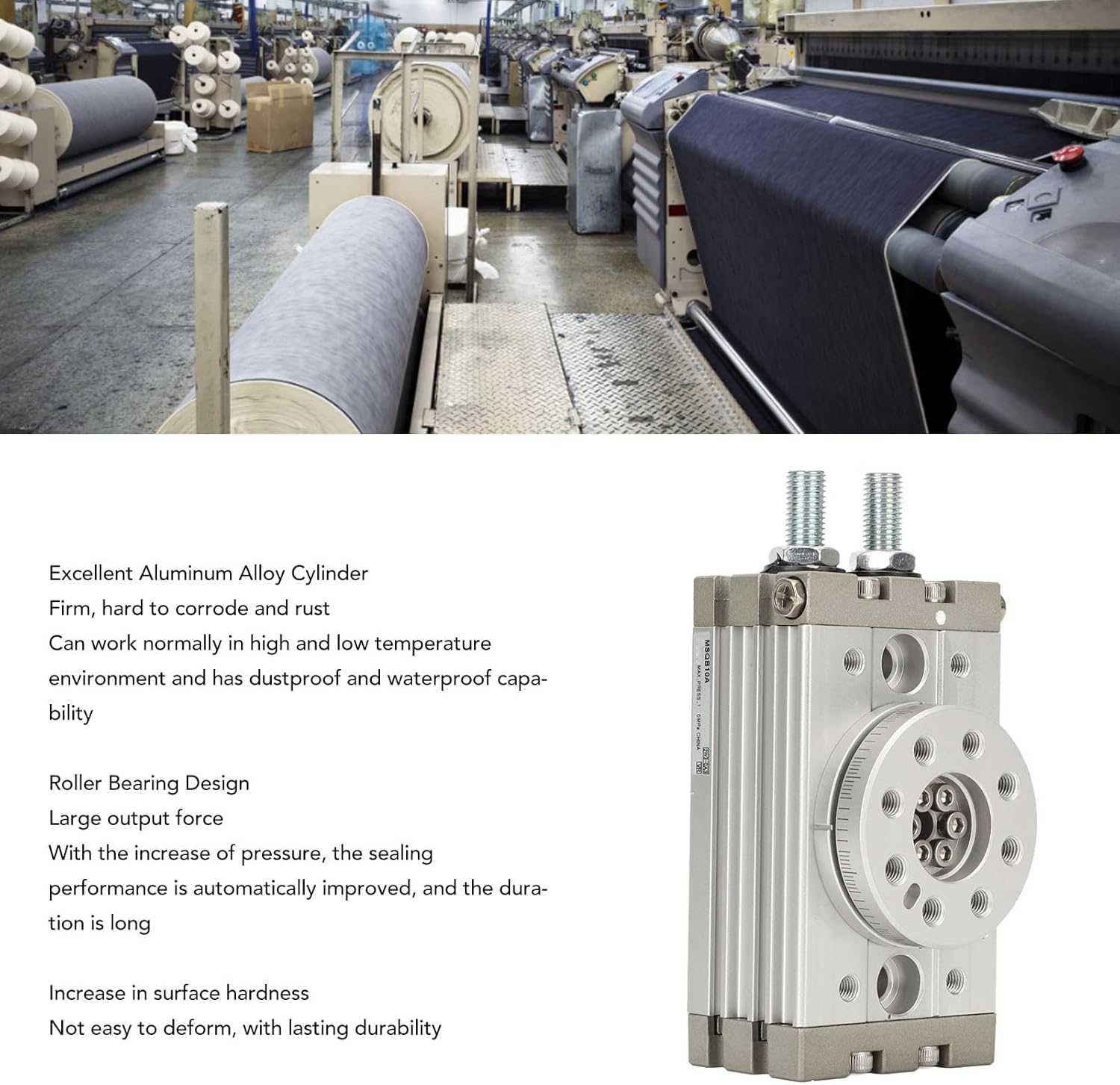

• [Aluminum Alloy Made] The cylinder is made of aluminum alloy, which is sturdy, hard to corrode and rust, can work normally in high and low temperature environment.
• [Large Output Force] The air cylinder is designed with roller bearing, with large output force, the sealing performance will be improved automatically with the increase of pressure.
• [Wide Application] Cylinder is widely used in automation equipment in light industry, chemical industry, textile, electronics, machinery and other industries.
• [Design Feature] Built in magnetic ring, can be installed with magnetic switch. The cylinder is double acting, alternating air supply from both sides of the piston, one or two way output force.
• [Angle Adjustable] The rotary cylinder uses an angle adjustment unit, and can be adjusted by 0 to 190 degree, the swing is smoothly and accurate.
