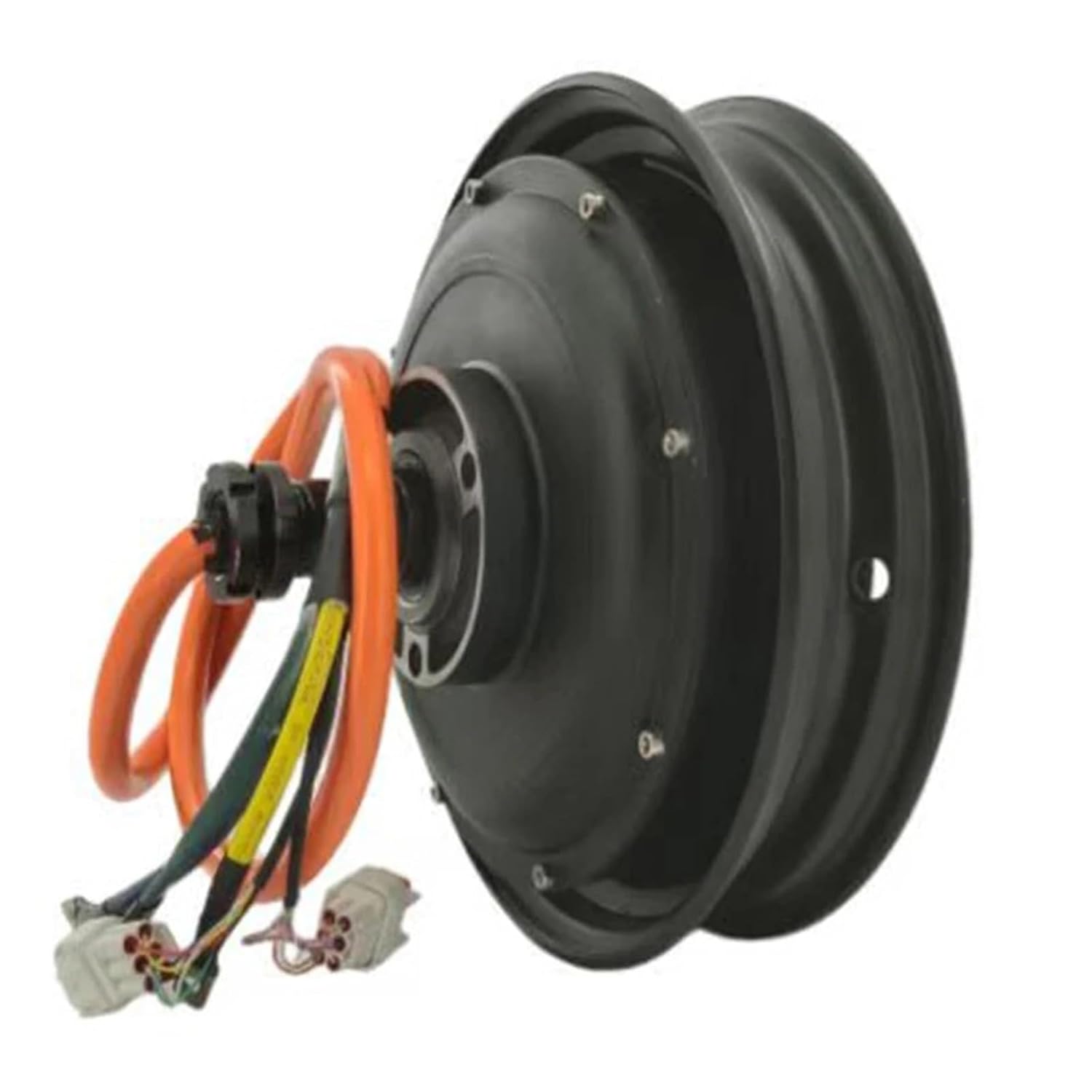

QS205 10inch 4000W 55H V3 Single Shaft in-Wheel Hub Motor Compatible with E-Trike Or Tractor AVT UGV(High Speed)
4.4 (145 items)
Limited Time Sale$583.06 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210364854 | Release Date | 2026/04/02 | List Price | $388.71 | Model Number | 210364854 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
QS20510inch 4000WSingle Shaft In-Wheel Hub Motor(55H) V3 Type10inch Single Hub Motor specially designed Compatible With electric scooters ,Electric trik or 4-wheel electric vehicles, the rated power can be made 1000W,1500W,2000W,3000W or 4000W Compatible With options.Different speed selection:Motor Specification:1. Motor Type: BLDC Hub Motor with Permanent Magnets2. Motor design: Double axle out with 10inch rim3. Rim size:2.15-104. Matching Tire: 3.0-10, 3.5-105. Magnet Height: 55MM6. Pole Pairs: 16 pairs7. Rated Power:4000W8. Peak Power: 700W9. Rated Voltage: 72V10. Speed: 90-100km/h11. Max No-load RPM: 1400RPM12. Max Torque: 160N.M13. Max Efficiency: 90%14. Continious current:61A15. Max current:90A16. Brake type: Disc brake17. Winding Frame material: Aluminium18. Cross Section of Phase wire: 10 mm219. Hall sensor phasing angle: 120 degree20. Temperature Sensor: KTY83-12221. Max. Working Temperature: 70 degree, Peak 120 degree22. WP Grade: IP6723. Color: Black24. N.W./ G..W. : 14kgs / 15kgs25. Package Size: 34*34*33CMMotor drawing:2.15x10 rimApplication:==========High-concerned chemical : NoneOrigin : Mainland ChinaWe’re so glad you’re here! Need help? Just message us – we’re happy to assist.
- Hub motor
- Direct drive, reduces energy loss.
- Regenerative braking, extends range.
- Eliminates transmission parts, saves space.
- Motor direct control, fast dynamic response.
- Independent wheel control, enhances handling.
| Model | YangXing68 |
|---|---|
| Brand Name | HENGCHUG |
| Manufacturer | YangXing68 |
