Qunguan IDE（Interdigital Electrode) on ito Glass 80μm Indium-Tin-Oxide Film Superpolar Conductivity Transparent Biosensor Medical Chemical Optical Sensor Chip (15mm×20mm, 12 pcs)
4.3 (83 items)
Limited Time SaleUntil the end
20
51
09
$65.40 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $109.00
Product details
| Management number | 211700546 | Release Date | 2026/04/04 | List Price | $43.60 | Model Number | 211700546 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 🍏 1. Packing Includes: 12 pieces of 80 μm ITO interdigitated electrodes. If needed, we can accommodate any custom requirements, such as special sizes or precision pattern etching on the surface of the conductive glass.You're welcome to send us your drawings or samples for inquiry.
- 🍏2. The substrate: soda lime glass. The size of the substrate is: Width 15mm, length 20mm, thickness 0.7mm.
- 🍏3. The conductor layer structure: Indium-Tin-Oxide (ITO) film. Sheet resistance ≤ 6 ohm/sq(4 point probe)；The thickness of ITO film: 2100Å ±50Å . Transmittance ≥ 84%.

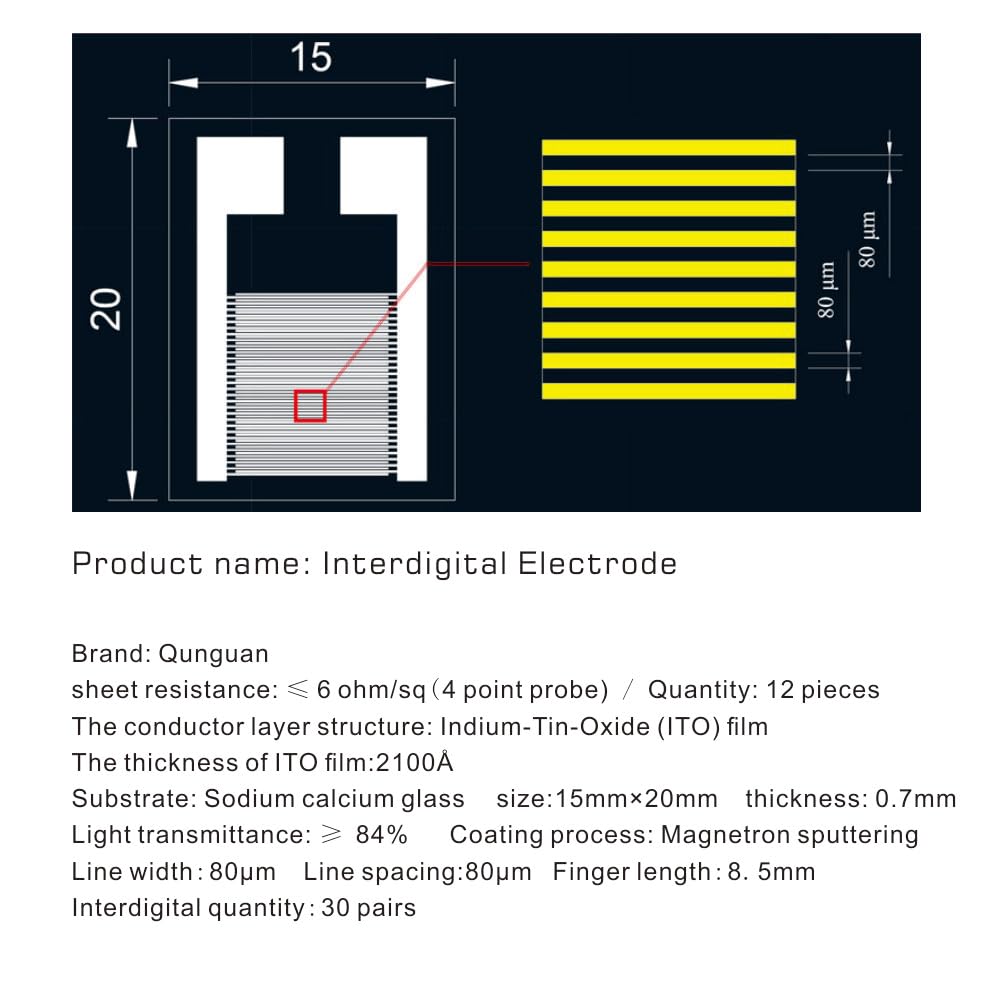

- 🍏4. Line Width: 80μm; Line Space: 80μm; Finger Length: 8500μm; Number of interdigitate pairs : 30(60 fingers).
- 🍏5. The electrode has large pads, so operation is easy. This product can be used as core part of biological, medical and optical sensors.it is widely used in important fields such as biomedical testing, online environmental monitoring, food safety testing, and public safety.
| Item Weight | 4.6 ounces |
|---|---|
| Manufacturer | Qunguan Electronics |
| Package Dimensions | 5.67 x 5.59 x 3.58 inches |
| Is Discontinued By Manufacturer | No |
