RK9974-DC20 Programnable Withstanding Voltage Tester Hi-Pot Tester DC 20KV 10mA

This series of programmed ultra-high voltage tester is designed to provide high voltage withstand voltage test and analysis for high voltage optocoupler and high voltage relay, high voltage switch, PV module and other devices with high insulation resistance. It adopts high speed MCU and large-scale digital circuit design. The size of the output voltage, the rise and fall of the output voltage, and the frequency of the output voltage are completely controlled by the MCU, which can display the breakdown current value and voltage value in real time, and has the wireless remote control function, equipped with PLC, RS232C, RS485, USB, LAN interface, convenient and computer or PLC system to form a comprehensive test system.

• DCW output voltage range：0.50~20.00kV；DCW Maximum output power：200VA(20.0kV 10mA)；Voltmeter range：DC(0.50~20.00)kV；Voltmeter accuracy/setting :± (1.5%+5 words);Ammeter measuring range:DC 0~10mA
• Ammeter measurement accuracy:± (1.5%+5 words);± (1.5%+5 words):0.1S;Test time:0-999s Continuous setting, 0= continuous test
• Arc detection:0-20mA;Output frequency:50Hz/60Hz;Operating temperature:0-40℃ ≤75%RH:Power requirements:220+10% 50Hz/60Hz+3HZ;Port:Standard RS232, RS485, USB, PLC;Screen:7 "TFT LCD screen
• 7 inch TFT(800*480) is used to display setting parameters and test parameters, and the display content is eye-catching and rich

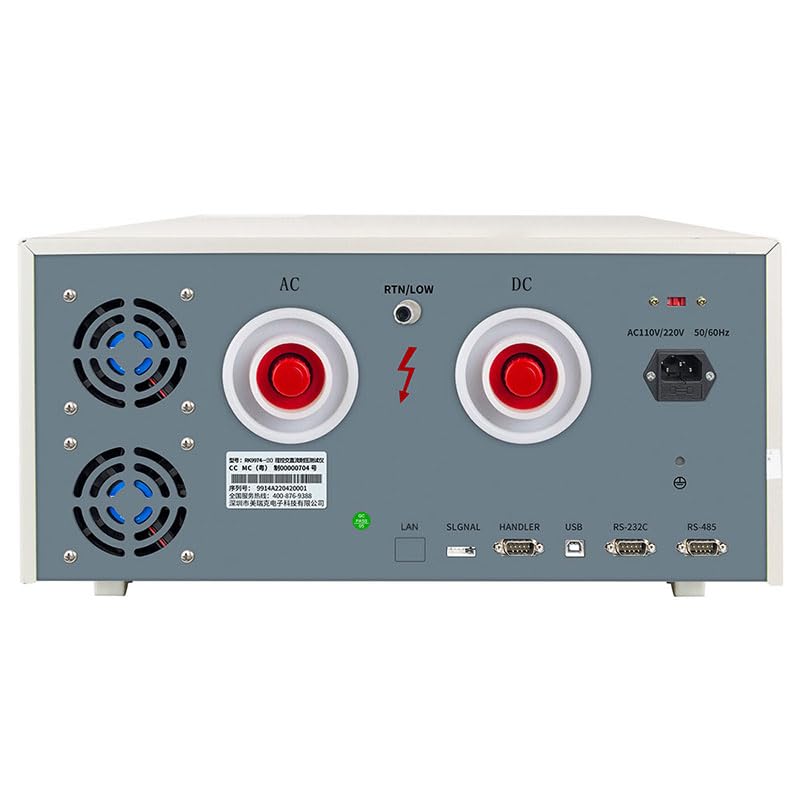

• The tester can save the set parameters in a file through the U disk call or storage.Standard with PLC interface, RS232 interface, RS485 interface, USB interface.Adjustable high pressure rise and fall time, can adapt to different test object requirements
