SGX Ball Screw Slide Table,Linear Guides,CNC Linear Stage Motion Actuator,Reciprocating Motion Module,SFU1605 Ball Screw + nema23 (57 Stepper Motor)，Effective Stroke: 200mm/7.88in
4.2 (119 items)
Limited Time Sale$38.71 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211204754 | Release Date | 2026/04/04 | List Price | $25.80 | Model Number | 211204754 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Parameters Product Type: SGX Single Linear Rail Slide Table Effective stroke: 50mm-1500mm (SFU1204 can only do 600mm) Material: aluminum alloy + steel Increase effective stroke:10mm (as extra space to protect the slider) Positioning accuracy: 0.05mm Total length of the product: effective stroke + increase the effective stroke 10mm + flange piece 8mm + bearing piece 8mm + coupling 25mm + width of the slider 60mm + motor length Motor speed: stepper motor 10r/s Screw Type: SFU1605 Screw Diameter 16mm, Lead (distance traveled in one revolution) 5mm Slider size: 60*42*32mm Size between slider mounting holes: 30*30mm
- Product specification: SFU1605 ball screw, screw diameter 16mm, guide (screw turn a circle to move the distance) 5mm, the effective stroke of the slide table 200mm/7.88in
- The maximum load of the product is 50kg horizontally and 30kg vertically.

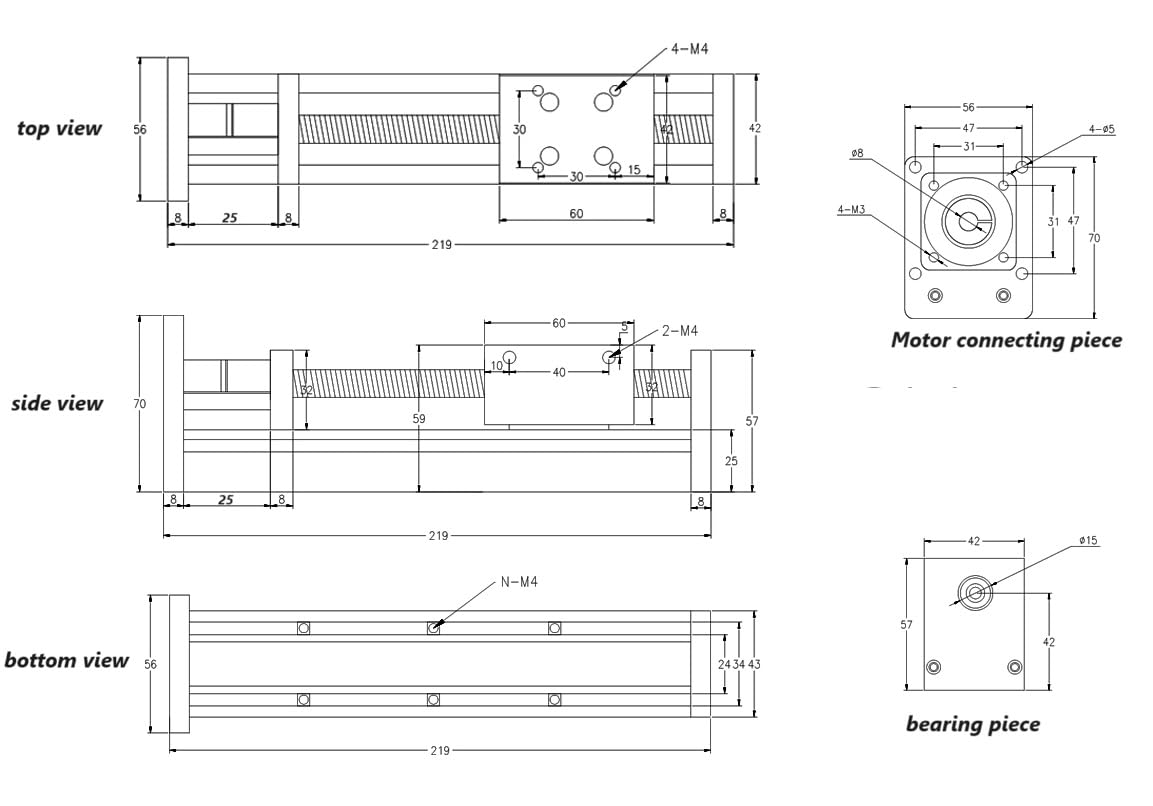

- The total length of the product is: effective stroke + increase effective stroke 10mm + flange piece 8mm + bearing piece 8mm + coupling 25mm + width of the slider 60mm
- The product consists of 8 parts: motor, coupling, stabilizer bearing, slider, bearing steel guideway, base, ball screw and bearing plate.
- We can provide customized service, you can customize the length of the ball screw slide up to 2900mm, if you have the demand, please contact us through Amazon
| Item Weight | 8.14 pounds |
|---|---|
| Manufacturer | LD-Teemm |
| Package Dimensions | 14.57 x 2.76 x 2.2 inches |
