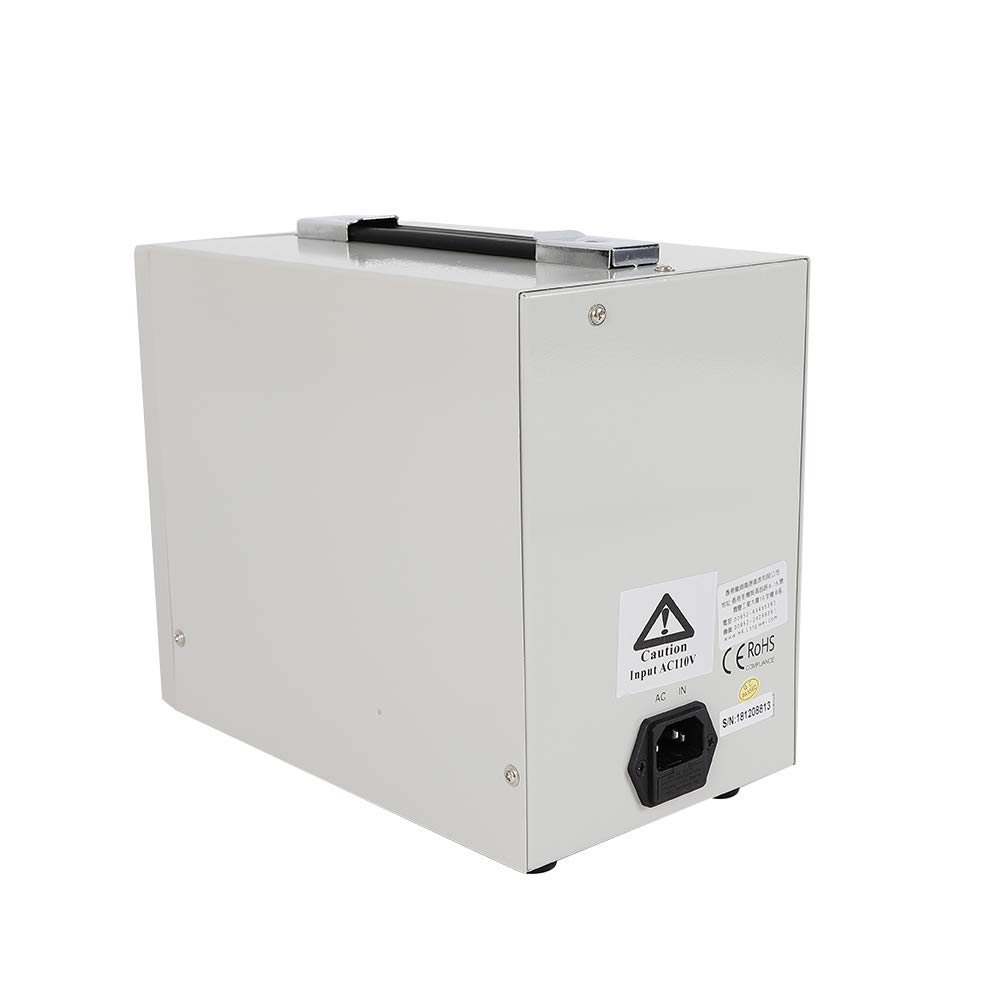

Signal Generator, 110V Audio Signal Source 10Hz-1MHz Audio/Low Frequency Signal Generators TAG-101

SpecificationsProduct size: 23.5*14*20cm/9.4*5.5*7.87inchNet weight: about 2kgFrequency rangeX1 range: 10Hz-100HzX10 range: 100Hz-1KHzX100range: 1KHz-10KHzX1K range: 10KHZ-100KHzX10K range: 100KHz-1MHzSine wave characteristicsOutput voltage: 5V rms or moreOutput distortion: 400Hz-20KHz, 0.1% or less(X100 range for 1KHz)50Hz-500KHz 0.5% or lessOutputFlatness: ±1.5 dB (refer to 1KHz)Square wave characteristicsOutput voltage: 10Vp.p or moreRise time: 0.25 us or lessDuty ratio: 50%±5%(referto1KHz)External synchronization characteristics Range±3% of oscillator frequencyInpu impedance: 10K approximateMaxi mun input: 10V rmsOutput characteristicsImpedance: 600Ω±10%Attenuator: 0dB, -10dB, -20dB, -30dB, -40dB, and -50dB in 6 steps (accuracy +1 dB at 600Ω load)Input: AC110V, 60HzConsumption: 5 WattDimension:142(w)*233(D)*197(H) mmWeight:3.5KgFeaturesReliable circuitry insure high stability and accuracyEasy operation on vertical type panel assemblingFrequency range from 10Hz to 1MHz selectable in 5 ranges are calibrated with single-scale graduations.More than 5Vrms at no load and more than 2.8Vrms on 600Ω loading (sine wave).Output level can be adjusted by a 10dB-step, 6 range attenuator and a level adjuster.Sine wave and square waves is available. Synchronizing input terminalAccessories1pc Power cord 1pc Test clip1pc Instruction manual

• ➤Reliable circuitry insure high stability and accuracy. Easy operation on vertical type panel assembling. Sine wave and square waves is available. Synchronizing input terminal.
• ➤Frequency range from 10Hz to 1MHz selectable in 5 ranges are calibrated with single-scale graduations.
• ➤More than 5Vrms at no load and more than 2.8Vrms on 600Ω loading (sine wave).
• ➤Output level can be adjusted by a 10dB-step, 6 range attenuator and a level adjuster.
