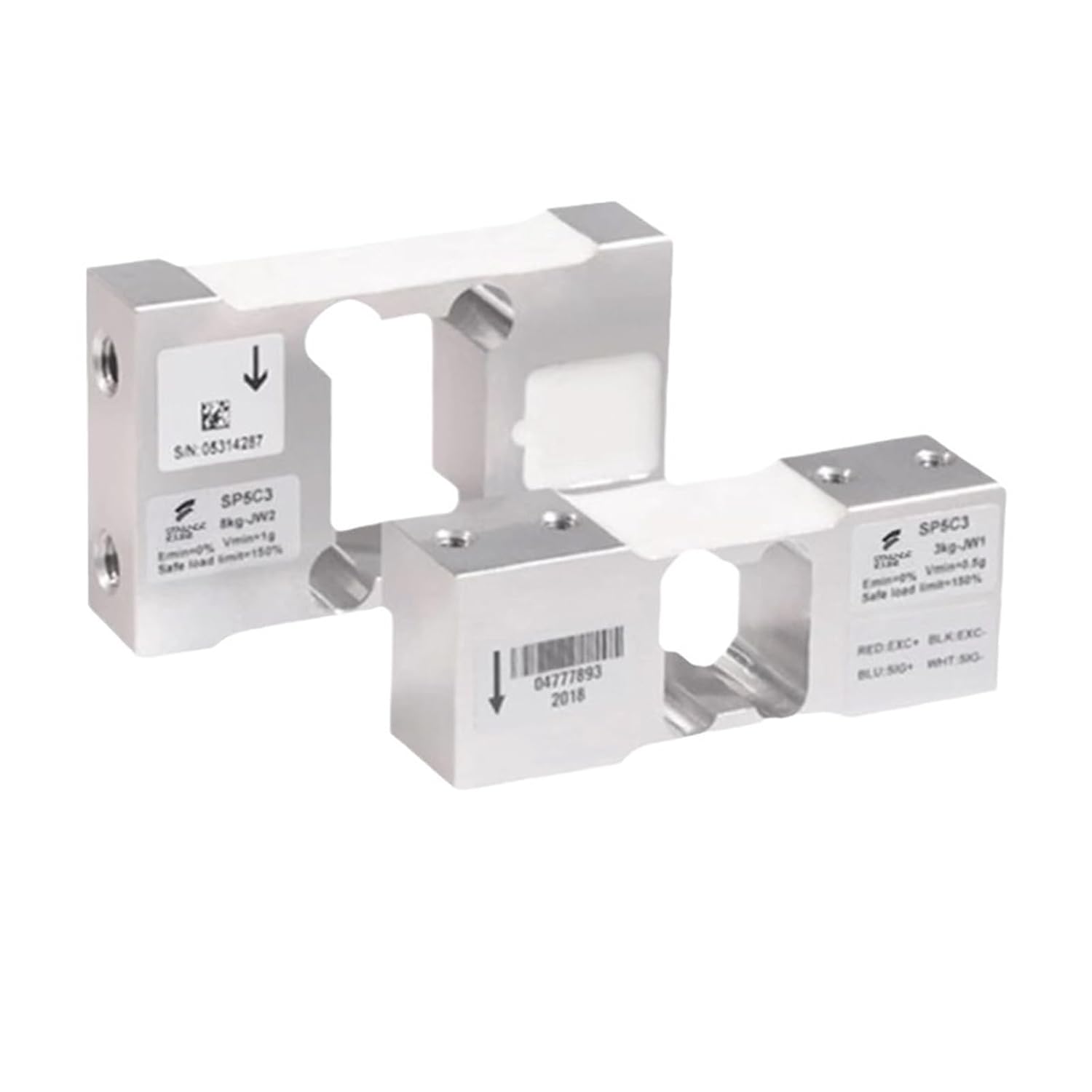

SP5 JW-2 Weighing Sensor Single Point Load Cell 8KG High Precision Electronic Scale Industrial Automation Structural Stress
4.3 (51 items)
Limited Time Sale$191.17 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210899466 | Release Date | 2026/04/04 | List Price | $127.45 | Model Number | 210899466 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SensorsHigh-concerned chemical : Noneis_customized : YesTheory : Resistance SensorMaterial : MetalType : Magnetic SensorOutput : Analog SensorUse : Pressure SensorType : Load Cell/Force SensorAccuracy class : C3Maximum capacity : 8KGMinimum load cell verification interval Accuracy class C3MR : 2gTemperature coefficient of zero signal per 10 K : ±0.0166Sensitivity : 2.3±0.2Temperature coefficient of sensitivity +20 - +40 °C -10 - +20 °C : ±0.0175,±0.0117Non-linearity : ±0.0150Hysteresis error : ±0.0150Load creep in 30 minutes : ±0.0166Max. platform size : 350 x 350Eccentric error : ±0.0233Zero balance : ±0.2Input resistance : 380±38Output resistance : 380±38Reference excitation voltage : 5Nominal (rated) range of the excitation voltage : 1-15Insulation resistance : >2Nominal (rated) range of ambient temperature : -10 - +50Service temperature range : -10 - +60Storage temperature range : -25 - +70Safe load limit : 150Breaking load limit : 300<; 0.5Degree of protection : IP65Strain gage requirement : ModcoMaterial : Aluminum
- Sensors
- SP5 JW-2 Weighing Sensor Single Point Load Cell 8KG High Precision Electronic Scale Industrial Automation Structural Stress
| Model | QEJWWGFI |
|---|---|
| Brand Name | QEJWWGFI |
| Manufacturer | QEJWWGFI |
