Sta-Kon 10RC-10F 12-10 AWG Vinyl-Insulated Fork Terminal, Yellow #10, Copper, Tin Plated, 50 Pack
4.9 (137 items)
Limited Time Sale$26.09 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210873664 | Release Date | 2026/04/04 | List Price | $17.40 | Model Number | 210873664 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

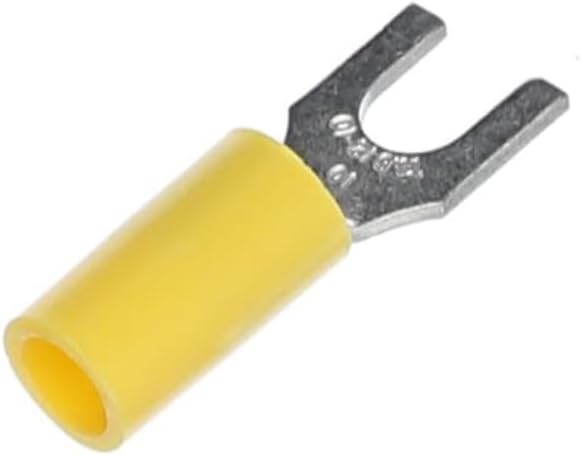

Product Description These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wires flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded. From the Manufacturer Fork Terminal; Standard; Vinyl Insulated; 1.09-Inch Length; 0.38-Inch Width; 0.21-Inch Maximum Insulation; 0.04-Inch Stock Thickness; 12 AWG To 10 AWG Conductor Size; #10 Stud Size; 600-Volt Voltage Rating; Copper Material; Electro Tin Plated Finish; Yellow Color; 105 Degree C Temperature Rating; UL 486-A, CSA 22.2 Approval; RC Terminal Series; 50 Standard Package.
- Deep internal serrations maximize contact with wire to help ensure high pull-out values and low electrical resistance
- Long, chamfered barrel design helps eliminate wire hang-ups and maximizes crimp area
- Constructed of electrolytic copper with electro-tin plating for high conductivity
- Brazed seam using silver solder helps ensure a uniform crimp and maximum conductivity
- Color-coded according to wire size. Complete wire and stud size identification on tongue.
| UPC | 786210800431 |
|---|---|
| Color | Yellow |
| Gauge | 12-10 |
| Model | 10RC-10F |
| Terminal | Fork Terminal |
| Stud Size | #10 |
| Brand Name | Thomas & Betts |
| Unit Count | 50.0 Count |
| Item Weight | 454 Grams |
| Manufacturer | ABB |
| Material Type | Copper, Polyvinyl Chloride |
| Connector Type | Fork |
| Maximum Voltage | 600 Volts |
| Contact Material | Copper |
| Specification Met | CSA, RoHS, TSCA, UL |
| Temperature Rating | 105°C |
| Included Components | (50) Fork Terminals |
| Warranty Description | T&B warrants that its products will be free from defects in material and workmanship for a period of two years (tools are warranted for ninety days) from the date of shipment. Upon prompt notification of a warranted defect, T&B will, at its option, repair or replace any products found to be defective. 2. In no event will T&B be liable for any consequential, indirect or special damages, nor (except as may otherwise specifically be agreed to in writing through an authorized representative) shall T&B be liable for transportation, labor, or other charges arising out of the removal or reinstallation of its products. Liability for breach of warranty is limited to the cost of repair or replacement of the warranted product. |
| Insulation Material Type | Vinyl |
| Item Dimensions L x W x H | 1.09"L x 0.38"W x 0.27"H |
| Global Trade Identification Number | 00786210800431 |
