Starrett Shaft Alignment Chain Clamp Set with Case - 196B5 Indicator, PT18724 Snug, Extension Plate, Posts (5", 7-7/16", 9") - S668CZ

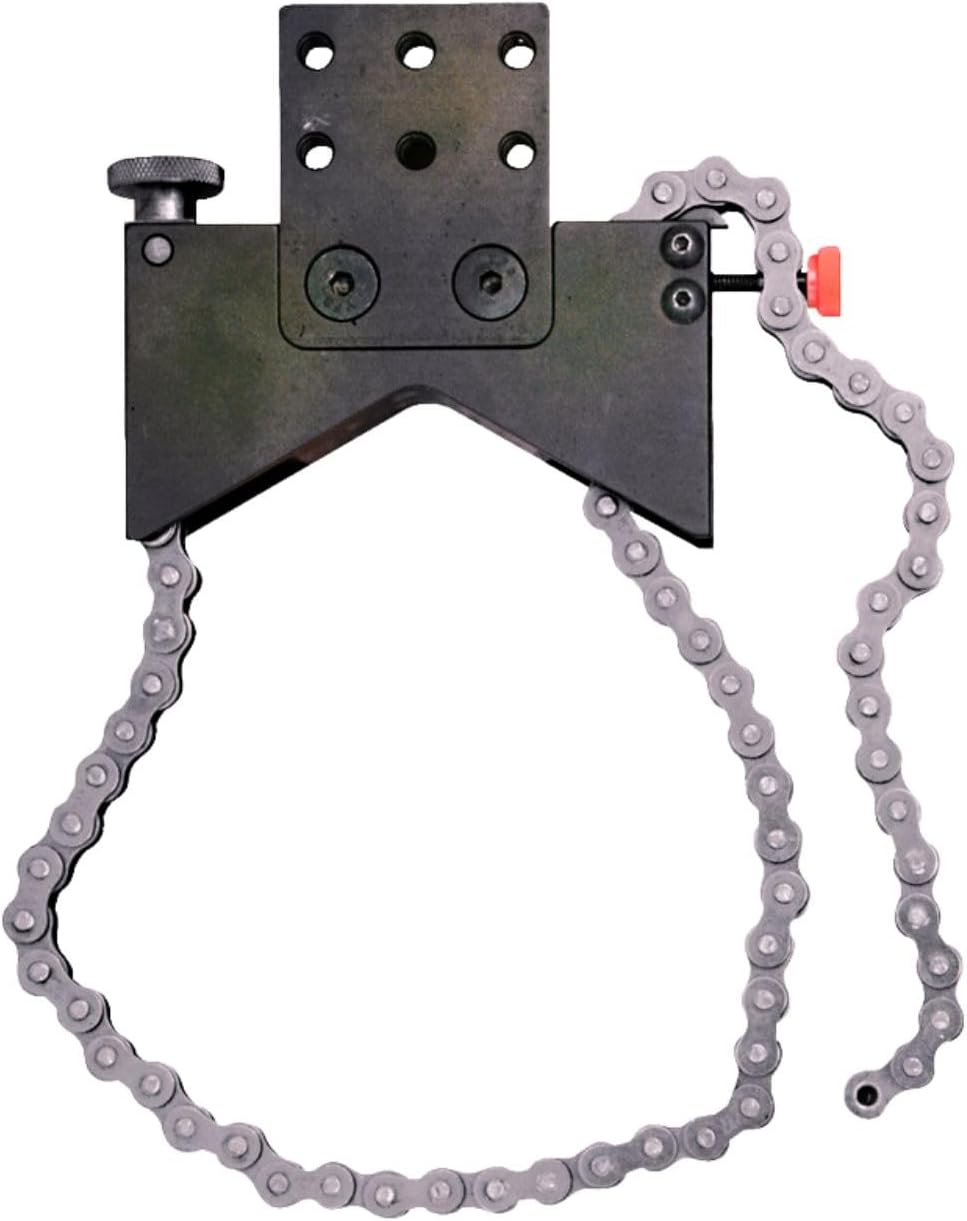

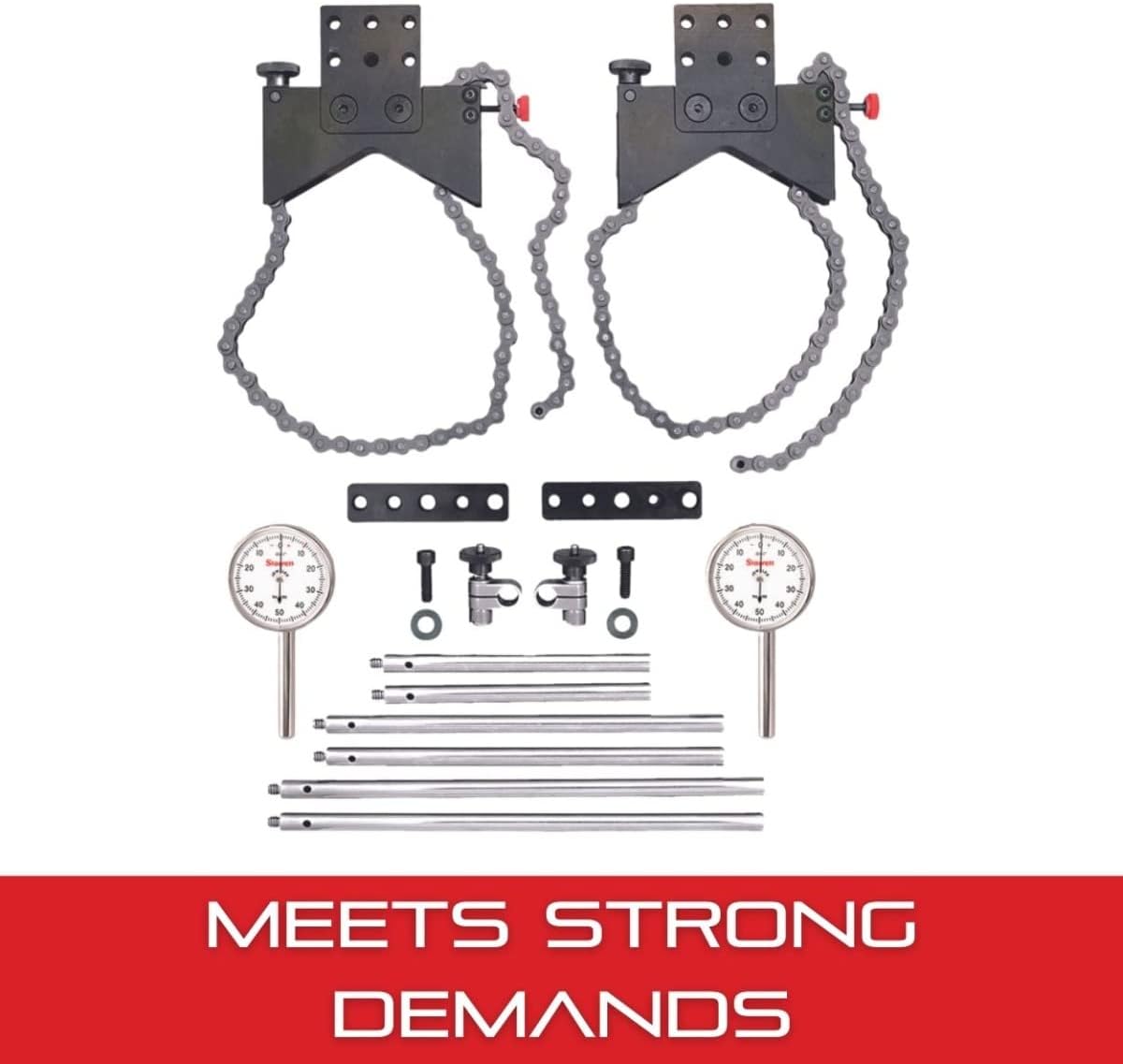

The Starrett S668CZ shaft alignment clamp set includes two chain clamps, two 196B5 back-plunger dial indicator gauges, two PT18724 snugs, two extension plates, and various posts to perform radial and angular alignment of motors, pumps, and compressors. The portable set comes in a fitted, convenient case for organization and storage. The clamp set provides a pair of indicator gauges to measure alignment distortion, with a configurable armature to secure the gauges in position on two axes. The two chain clamps consist of a black anodized aluminum frame with a roller chain that can secure the clamp around a shaft up to 7.5 inches in diameter. The three pairs of 3/8-inch diameter posts measure to 5", 7-7/16", and 9" in length, and are made of stainless steel for rigidity. Two extension plates provide additional radial clearance when needed. Two stainless steel snugs secure one post to another, to hold the gauges in measuring position. The two 196B5 back-plunger dial indicator gauges have three contact points and are graduated to 0.001", with a travel range to 0.2" The gauges have a 0.25" shank, a white dial face with numbers ascending from 0 to 50 and descending back to 0, and a rotating knurled bezel to set the dial pointer to the zero position. Clamps are fastening tools that use pressure to secure workpieces to each other or to a workspace and prevent movement. Clamp style varies widely, depending on general and specialized applications. Many clamps are for temporary use during construction, repair, or alignment of a workpiece, while others may be used to secure a component in its final installation or assembly. The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment, and saw blade products. The company was founded in 1880 and is headquartered in Athol, MA.

• Perfect For Any Job - Whether you're measuring height, depth, or width, this indicator will get the job done quickly and easily. With its precision gear-driven design and smooth jeweled movement, it's ready for any task.
• Easy to Use - Our indicators features high contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading. It also has three dovetail positioning mounts that works with most existing accessories.
• Wide Range Of Selection - It offers a variety of each of the major classes; mechanical dial, electronic display, lever style test and back plunger. Each type has its own unique strengths.
• Made For You - It offers everything you need, including a broad line of each indicator type, an extensive range of accessories to configure and position the gage, and as needed, an indicator-based, custom engineered solution.
• The Standard for Excellence - Proudly made in the USA, Starrett combines over 140 years of American heritage and innovation with globally sourced materials to deliver exceptional quality tools and products.
