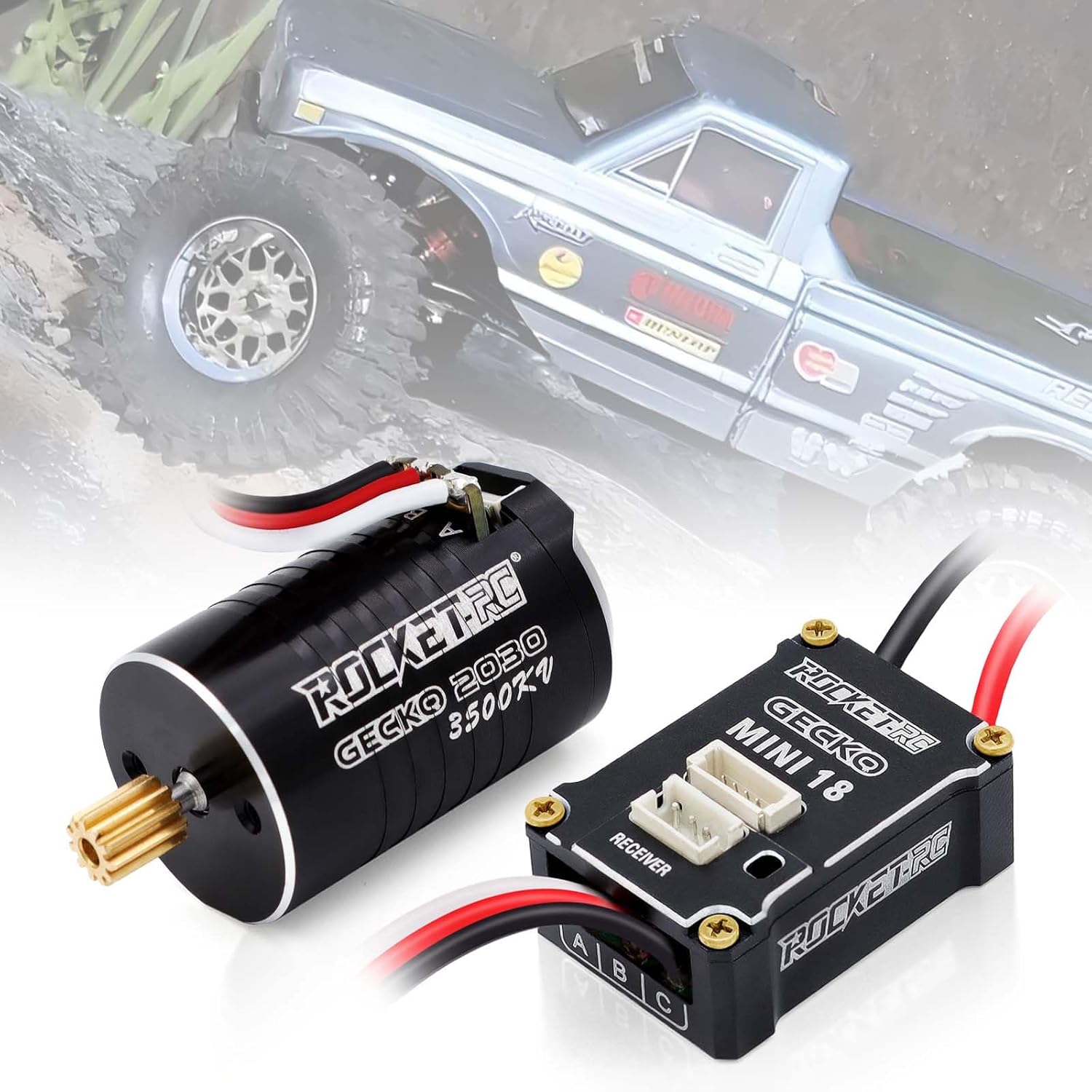

Surpass Hobby Sensored Brushless Motor and ESC Combo for TRX4M 1/18 Crawler Car Upgrades(3500KV)

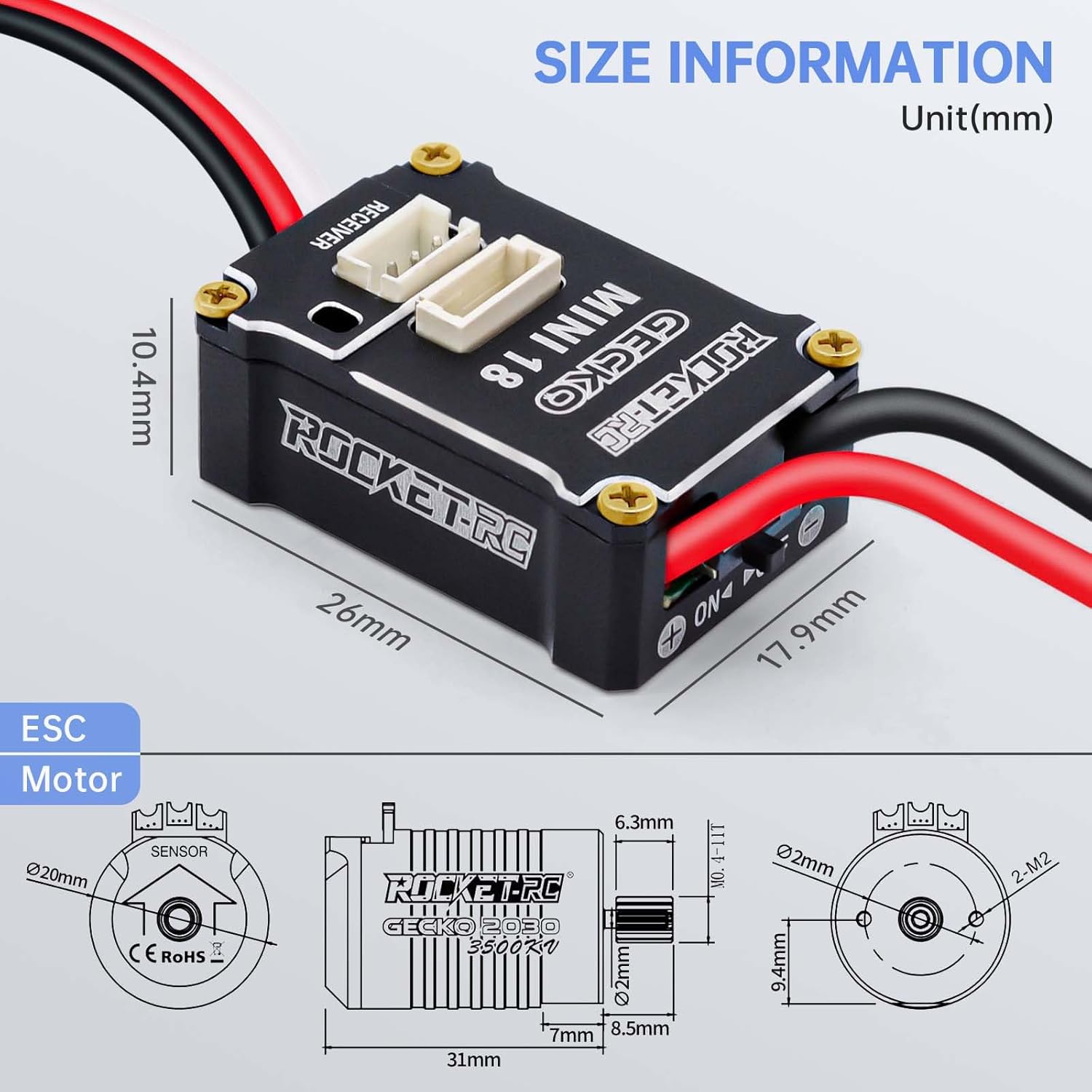

Surpass Hobby GECKO 2030 Sesored Brushless motor and ESC Combo for TRX4M 1/18 mini Crawler UpgradeFeatures: Comprehensive Protection SystemLow Voltage Protection – Prevents over-discharge.Overheat Protection – Reduces power if overheating occurs.Overvoltage Protection – Limits excessive voltage input.Overcurrent Protection – Prevents damage from high current.Phase Loss Protection – Shuts down ESC if a phase wire disconnects.Throttle Signal Loss Protection – Stops runaway scenarios.Motor Disconnection Protection – Alerts and limits power if motor communication is lost.ESC Specifications:ESC Type: Rocket RC 30A Brushless ESCContinuous/Peak Current: 30A / 80ASupported Motors: Only compatible with Brushless Sensored 180 MotorScale Compatibility: ≤1/18 scale vehiclesBattery Support: 1-2S LiPo; 3-6S NiMHBEC Output: BEC 5V/500mASize: 17.9mm×26mm×10.4mmWeight: 9.5gMOTOR Specifications:Motor KV: 3500KVMotor Type: Brushless Sensored 2030 MotorMax Watts：120WMax Voltage:8.4VMax Amps:10ARotor Poles: 2SSize: 20mm×31mm×20.5mmWeight: 35g

• Specially designed for 1/18 RC Crawler car with excellent start-up,acceleration and linearity features.
• Speed close-loop control to the power system of rock crawle, the lowspeed torque ls very strong, adjustable Drag Brake (Up to 200%),Enhanced climbing and speed control. Improved efficiency and reduced noise. Twice the braking power of standard brushless systems, ensuring superior downhill control.
• Powerful Low-Speed Torque & Smooth Operation: Intelligenttorque output &speed closed-loop control for easy control, delivering strong torque even at extremely low speeds for smooth and responsive driving.
• Multiple protection features: Low voltage cut-offprotection for lithiumor nickel battery/Over-heat protection /Throttle signal loss protection /Motor blocked protection.The strong resistant current capability, excellent heat dissipation.
• Built-in switch-mode BEC 5V/500mA for usage with high torque andhigh voltage servos. Note: The BEC supports up to 8.4V output for low-current applications only (e.g., powering receivers or sensors). For high-current servos, we recommend using 6V–7.4V for reliable and safe operation.
