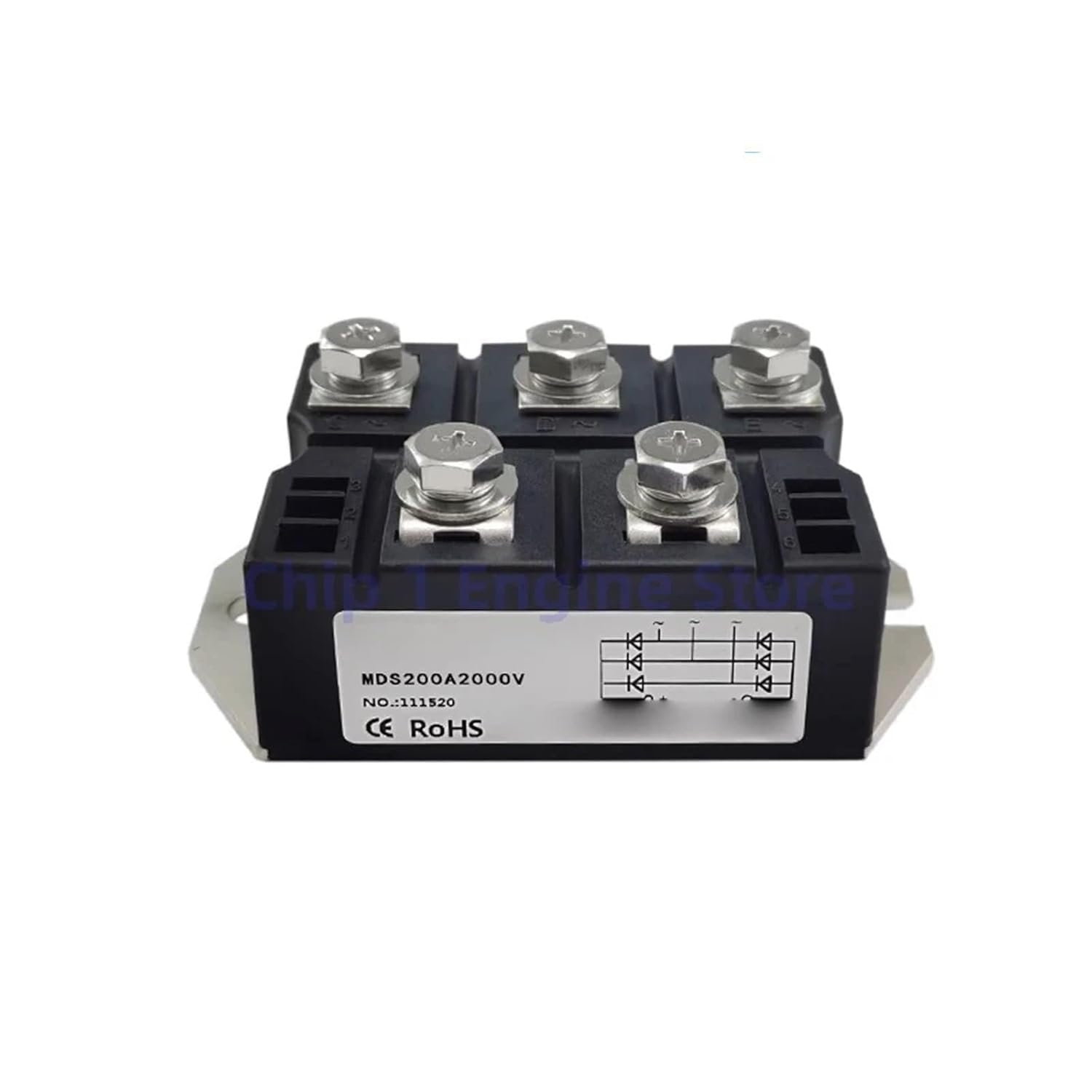

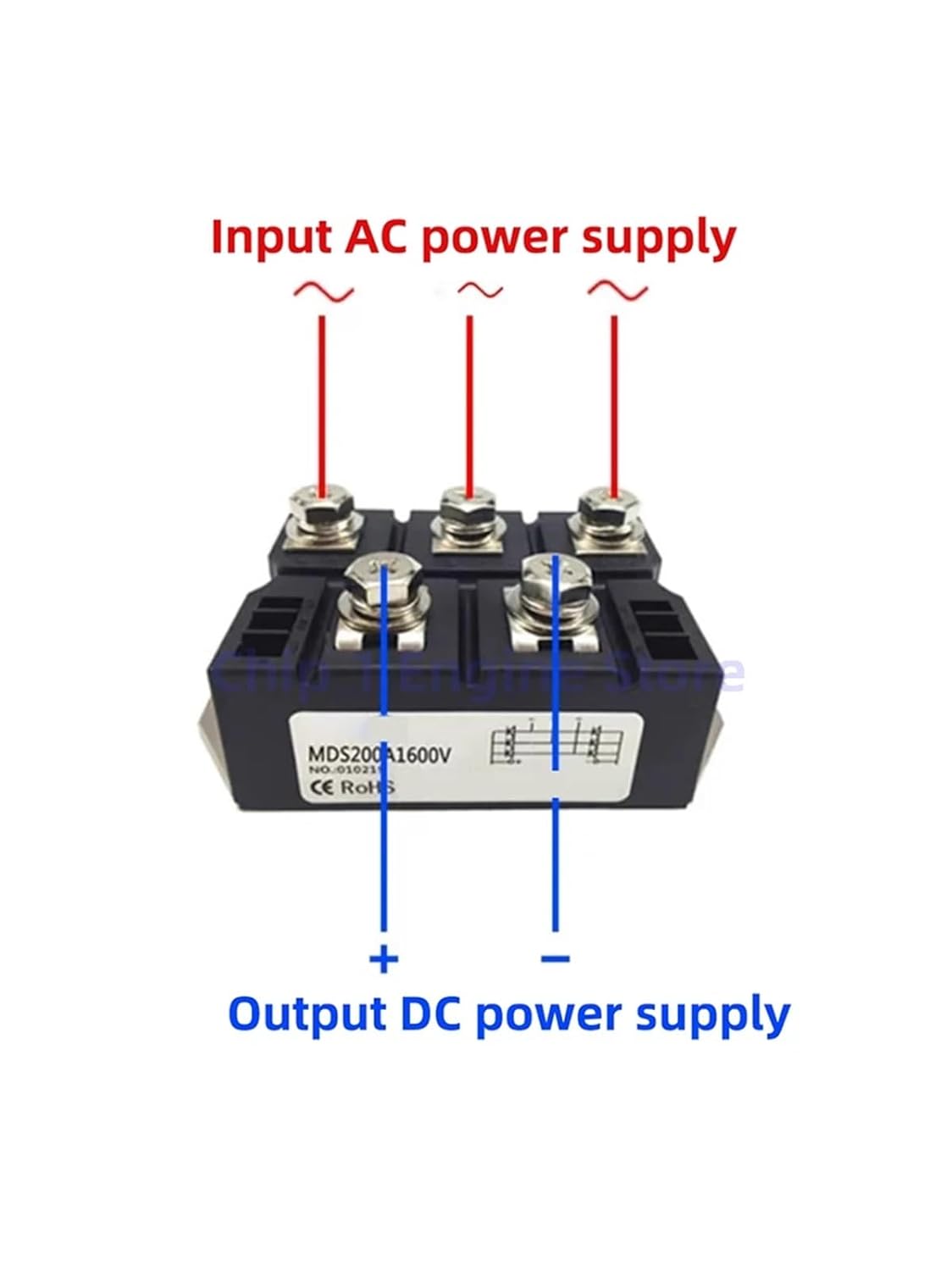

Three phase rectifier bridge MDS75 75A 100A 150A 200A 250A 1600V 2000V AC/DC diode rectifier module(MDS75-16 75A1600V)

Schottky Diodes1. Product selectionThe power module identification current is the average on-state value, not the actual effective value for long-term operation,and sufficient margin should be left according to the actual working environment and working conditions.(1) pure impedance load margin: 2-2.5 times the actual current (A) x2 (~2.5) = module nominal current (A) (2) the perceptual load margin: 6 to 7 times the actual current (A) x6 (~ 7) = module nominal current (A2. Configure the heat sinkWhen the actual operating current of the device is greater than 5A, you must configure a proper heat sink.==========High-concerned chemical : NoneVoltage : 220VMax. Reverse Current : standardMax. Forward Current : standardMax. Reverse Voltage : standardMax. Forward Voltage : standardType : Rectifier DiodeCondition :

• Schottky Diodes
• Three Phase Rectifier Bridge Mds75 75a 100a 150a 200a 250a 1600v 2000v Ac/dc Diode Rectifier Module|High Current Range:Available in 75A to 250A, this rectifier bridge caters to diverse power requirements.
• High Voltage Compatibility:Operates efficiently at 1600V to 2000V AC/DC, suitable for high-voltage systems.
• Heat Sink Compatibility:Designed for optimal performance with a heat sink when operating currents exceed 5A.
