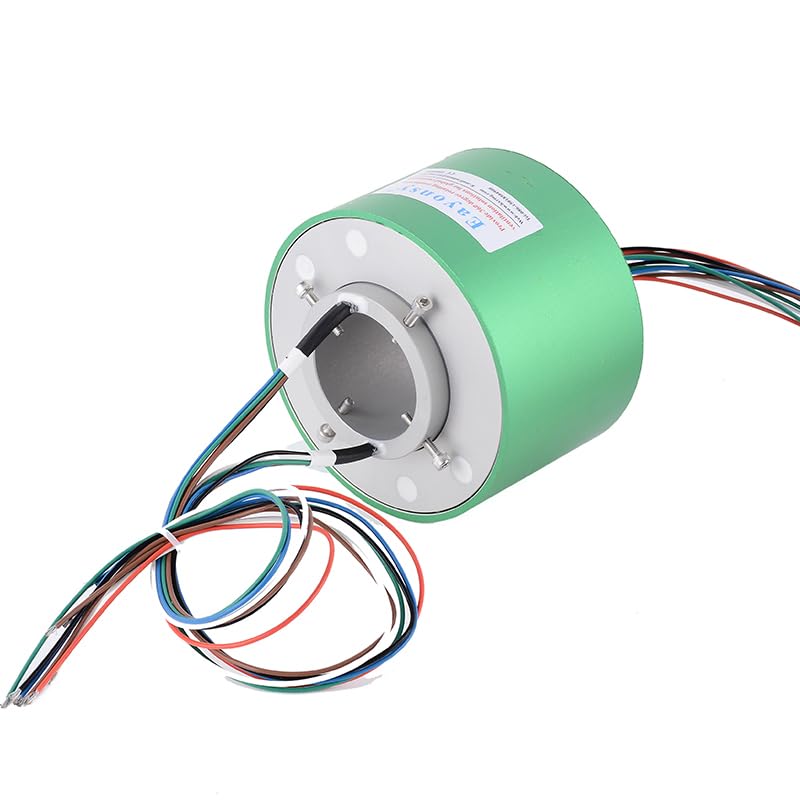

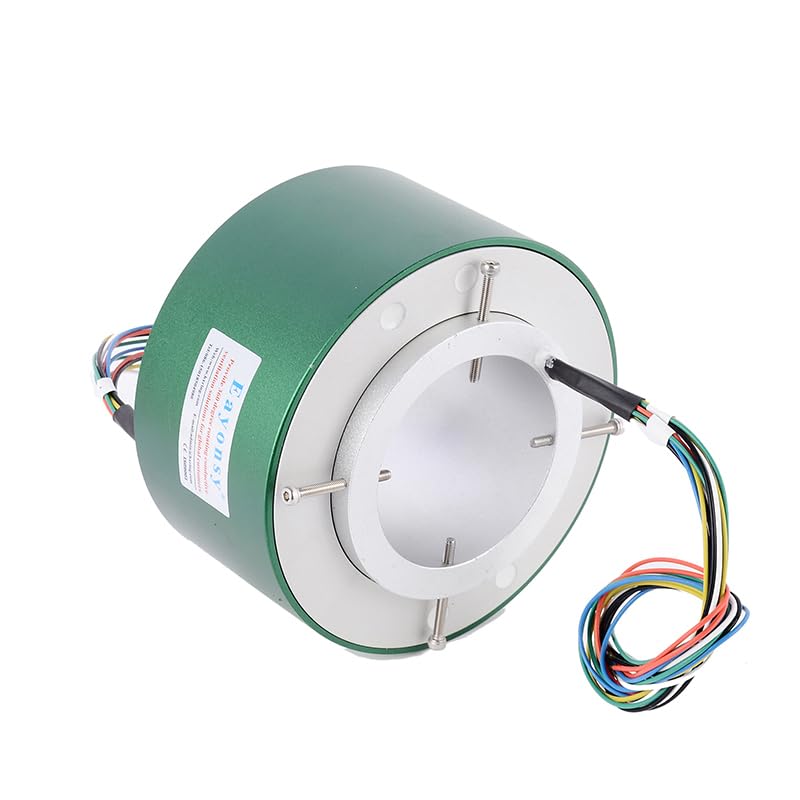

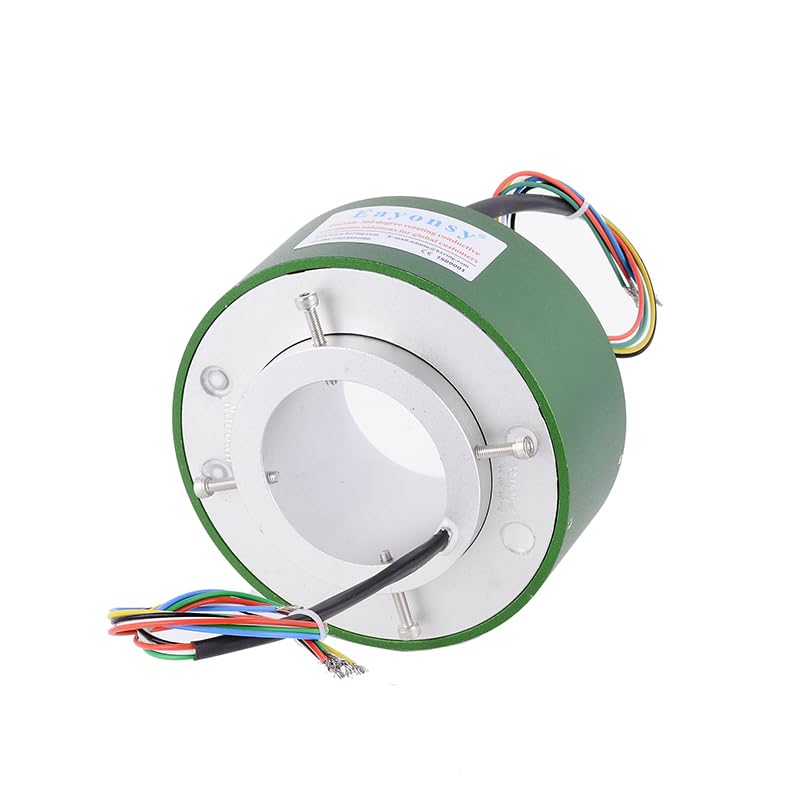

Through Bore Slip Ring 50mm / 60mm, 6/12 Wires 10A Aluminum Alloy Rotary Electrical Connector, Durable Conductive Slip Ring for Motor, PTZ Camera, CNC Machine, and Industrial Equipment (HD50119-0610)

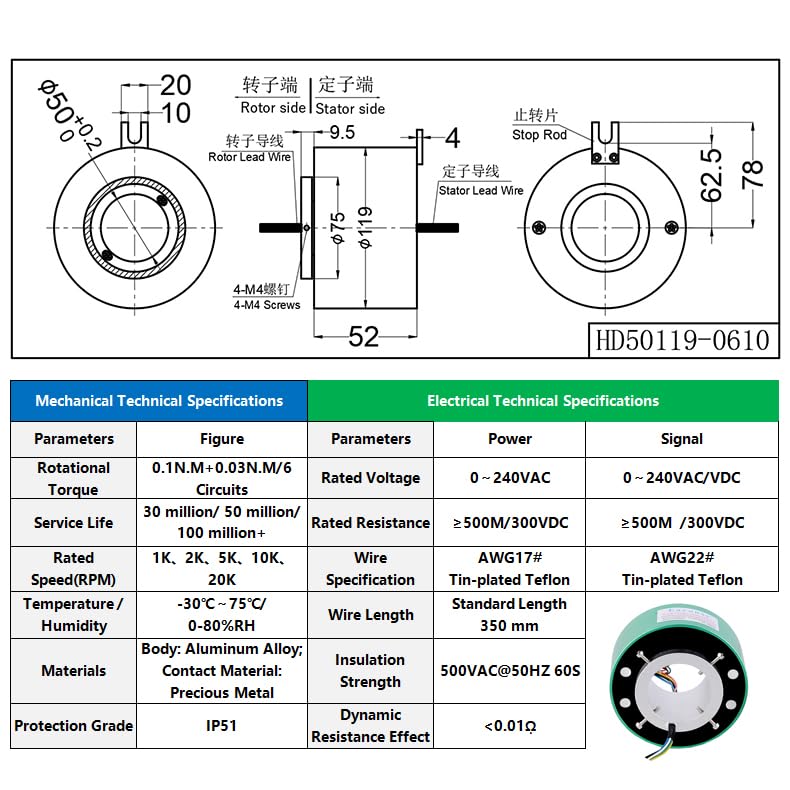

This through-bore conductive slip ring is made of durable aluminum alloy, available with a 50mm and 60mm inner bore. It allows smooth rotation while transferring power between stationary and rotating parts. Easy to install and maintenance-free, this slip ring provides long-lasting and reliable performance. Package includes: one conductive slip ring. Technical Specifications: 1. Inner bore: 50 mm or 60 mm 2. Outer diameter: 119mm or 130mm 3. Material: Aluminum alloy shaft and housing 4. Standard circuits: 6 wires / 12 wires (custom available) 5. Current rating: 10 A per circuit (standard; other ratings customizable) 6. Voltage rating: typically up to 550VAC/VDC (model dependent) 7. Contact type: brush / multi-point contact (industry standard) 8. Max speed & lifetime: industry: 0–500 rpm; millions of revolutions

• Through-bore design: inner diameters 50mm or 60mm — easy shaft routing and compact mounting
• Durable aluminum alloy Material — light, strong, and good heat dissipation.
• Reliable transmission — supports 10A per circuit (standard), low electrical noise
• Low torque & maintenance-free operation with proven brush technology.
• Wide applications — CCTV/PTZ, robotics, motors, CNC machines, rotating test rigs, and more.
• Package: one conductive slip ring included.
