Tianiuseen Silk Screen Printing Machine 4 Color 1 Station Screen Printer Screen Printing Press Equipment Table Type T-Shirt Press Printer

PARAMETERSize of the pallet:22x18x0.7inch(55x45cmx1.8cm)Width of the frame clamp:10inch(25cm)Suitable frame thickness:1.6inch(4cm)Suitable frame outside size:24inch(60cm)Frame clamp moving distance:2inch(5cm)

• 【4 COLOR 1 STATION】 The Silk Screen Printing Machine is used for 4 color 1 Station T-shirt overprinting. This machine is combination structure, attached with whole set installation tools. THE MACHINE NEEDS TO BE FIXED ON THE TABLE BY SCREWS.
• 【SCOPE OF APPLICATION】The width of the screen frame clamp is 10inch, suitable for screen frame within the outsize size of 24inch and within the thickness of 1.6inch. The screen frame clamp can be moved up and down within 2 inch. Especially suitable for small businesses and individual printing shop.
• 【EASY TO USE】Screen frame holder could spin at 360 degree to match color. This press come with bracket.Please install bracket on pallet first and then install bracket+pallet on the pallet arm as a whole.The platen can be moved back and forth by 4”.

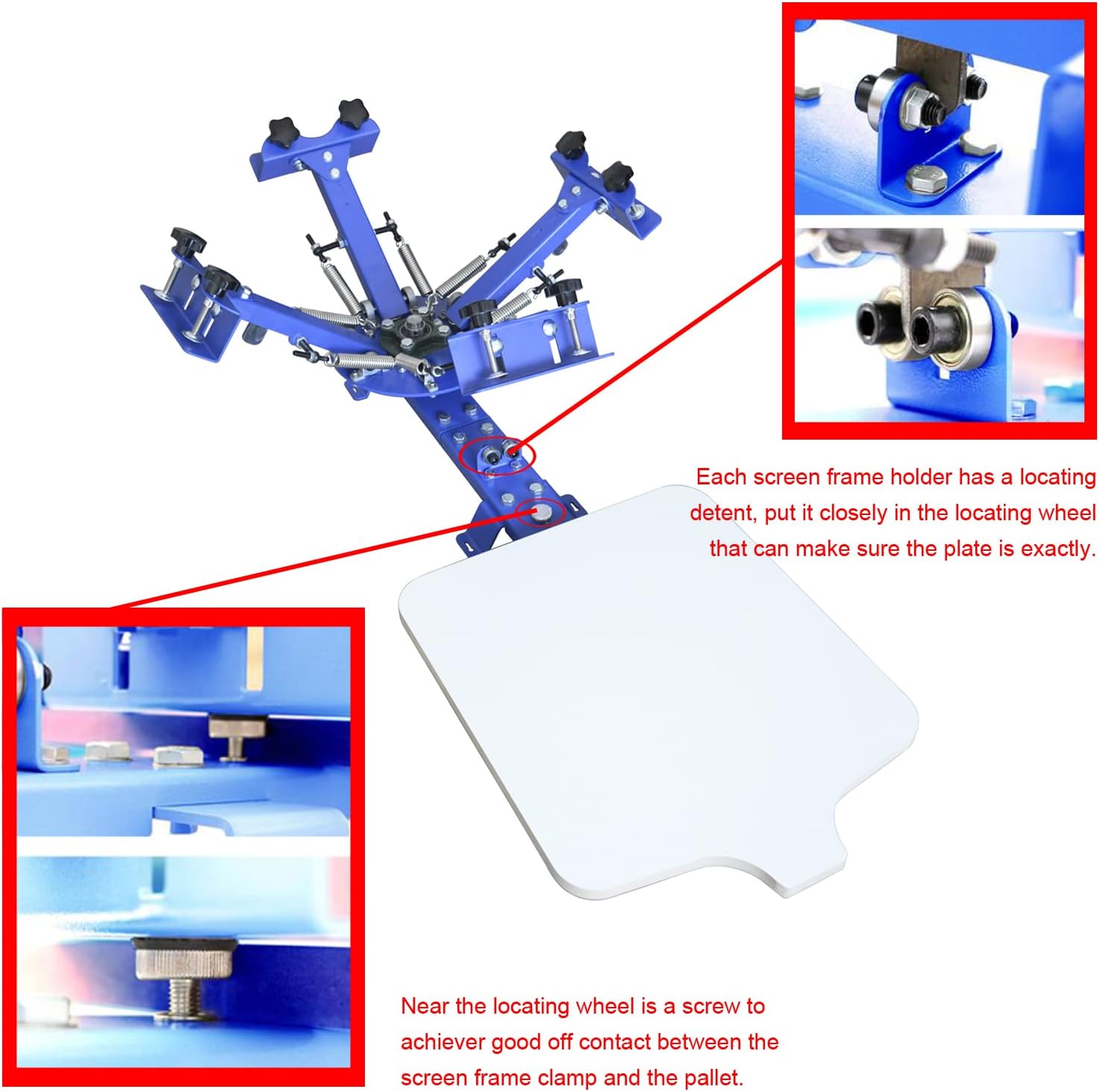

• 【FEATURES DESIGN】Each screen frame holder has a locating detent, put it closely in the locating wheel that can make sure the plate is exactly. According to the weight of the screen frame, spring tension can be adjusted by the screws to achieve balance. Near the locating wheel is a screw to achiever good off contact between the screen frame clamp and the pallet.

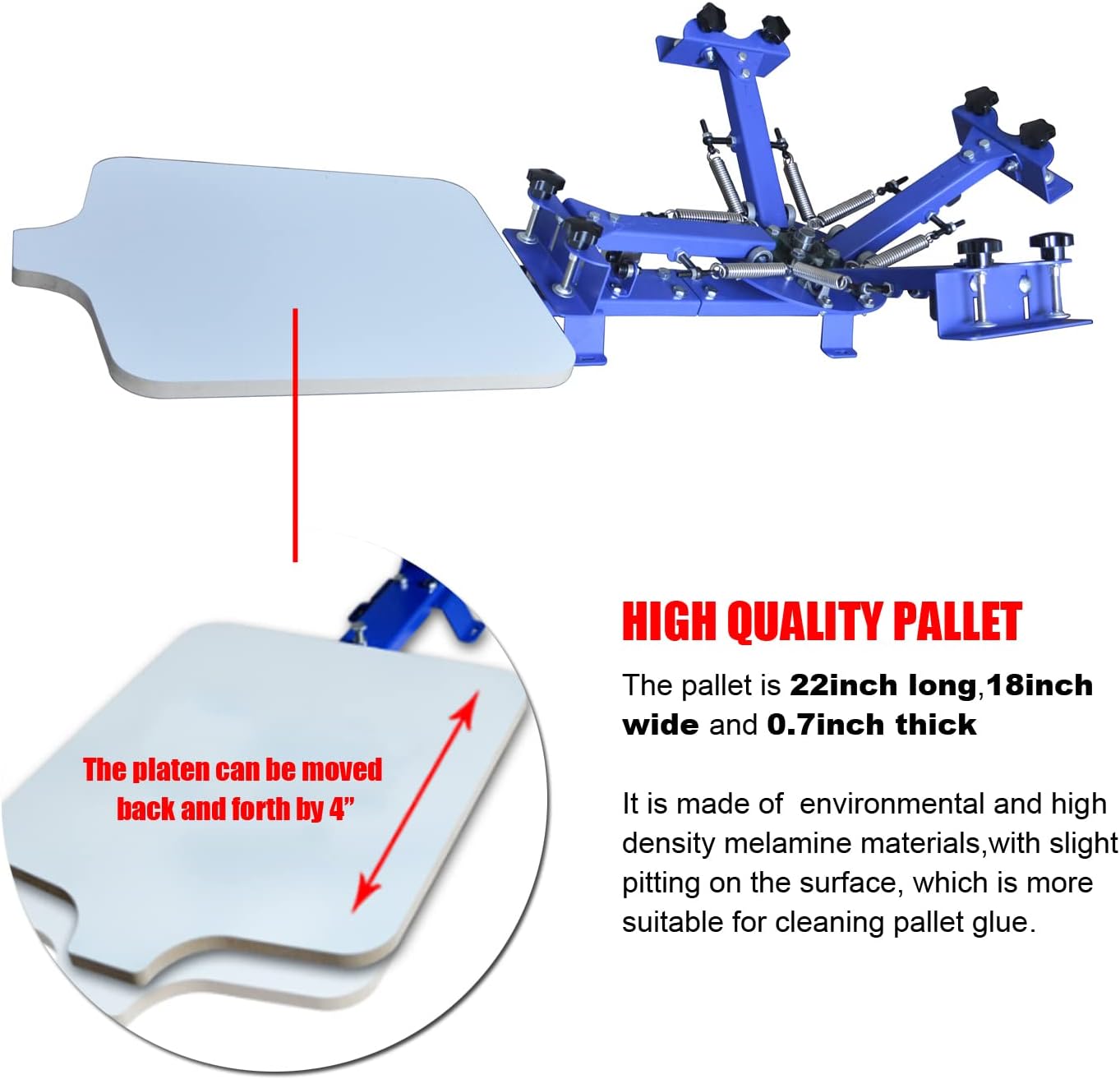

• 【HIGH QUALITY PALLET】The pallet is 22inch long,18inch wide and 0.7inch thick, It is made of environmental and high density melamine materials,with slight pitting on the surface, which is more suitable for cleaning pallet glue.
