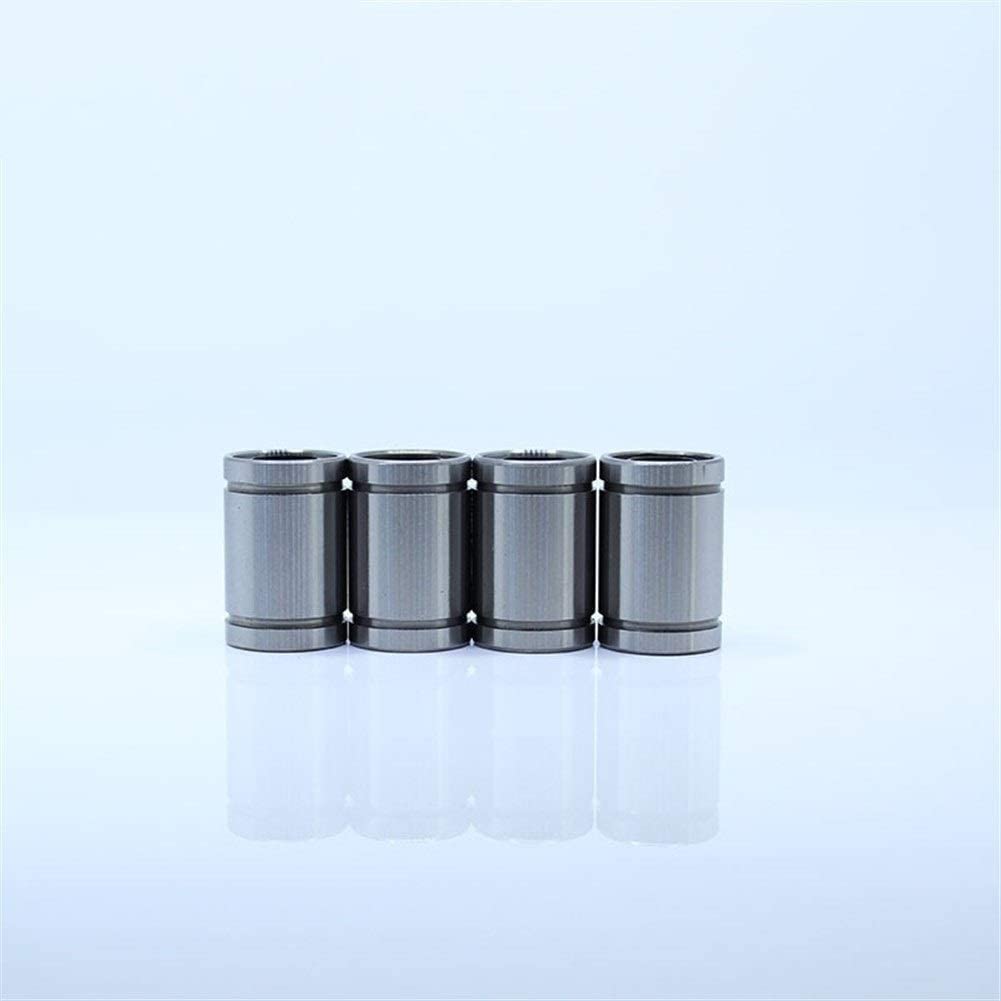

TMP1105 LM25UU LM30UU LM35UU Linear Motion Bushing ABEC-5 Standard Linear Bearing LM 25mm 30mm 35mm Precision Linear Bearings(LM30UU A5 2PCS)

bearingBearingDetailsModel: LM25UU Ball circuit: 6Inscribed circle Diameter: 25 mmOut Diameter: 40 mmLength: 59 mmDynamic Cr: 100 kgfStatic Cor: 160 kgfWeight: 206 gQuantity: 1 Lot = 2 PCS Grade: ABEC-5Model: LM30UU Ball circuit: 6Inscribed circle Diameter: 30 mmOut Diameter: 45 mmLength: 64 mmDynamic Cr: 160 kgfStatic Cor: 280 kgfWeight: 240 gQuantity: 1 Lot = 2 PCS Grade: ABEC-5Model: LM35UU Ball circuit: 6Inscribed circle Diameter: 35 mmOut Diameter: 52 mmLength: 70 mmDynamic Cr: 170 kgfStatic Cor: 320 kgfWeight: 370 gQuantity: 1 Lot = 2 PCS Grade: ABEC-5Advantages of the Product：1.The friction is small, the noise is small, the moment of inertia is low, the noise is smaller, the operation runs smoothly.2.Efficient operation, long life, due to fluidity contact can greatly reduce the starting friction resistance and dynamic friction resistance3.Rugged, good material, high quality rotation accuracy, not easy to burn, suitable for high-demand occasions.ApplicationThe nut uses high-carbon chromium bearing steel and its outer and inner surfaces are ground after being heat-treated. The Linear Bushing is used in a broad array of applications, such as slide units of precision equip-ment including OA equipment and peripherals, measuring instruments, automatic recorders and dig-ital 3D measuring instruments, industrial machines including multi-spindle drilling machine, punching press, tool grinder, automatic gas cutting apparatus, printing machine, card selector and food pack-ing machine.
