TOAUTO 8" 24" Digital Readout 2 Axis Lathe DRO Display with Precision TTL Linear Scale 200mm+600mm

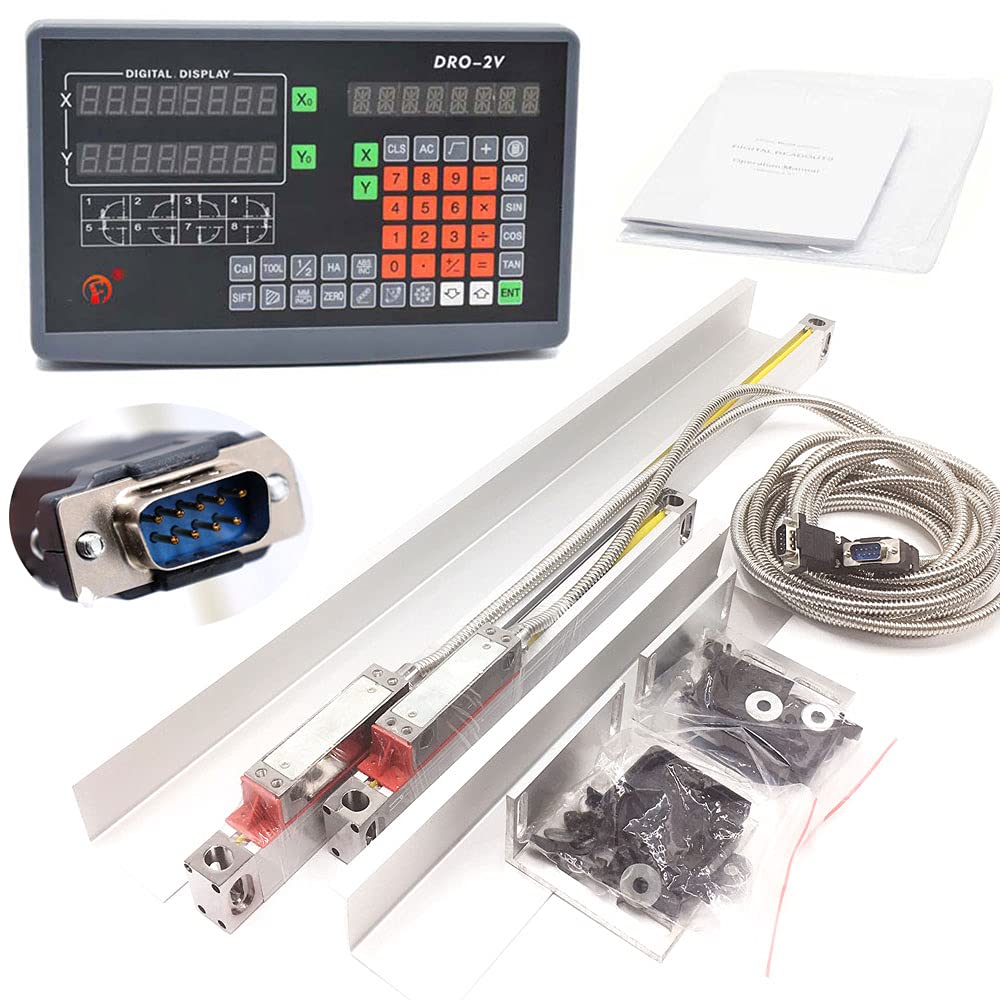

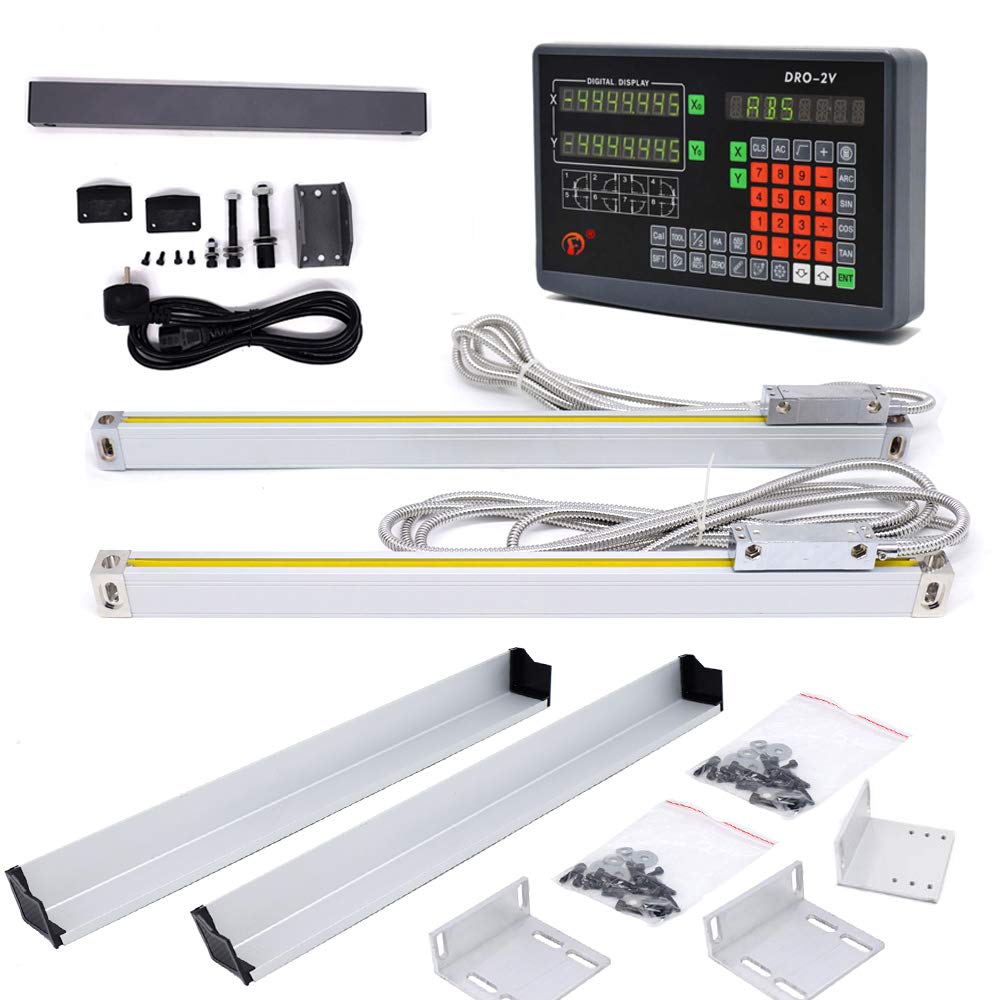

Package1 x 2 Axis Display2 x Linear Scale1 x English Manual1 set of AccessoriesFeature♦The signal line is protected by multi-layer isolating wire and metal soft shell♦The linear scale body is made of aluminum alloy, anodized, the head of the scale is die-cast, corrosion-resistant♦The sensor adopts precision measuring grating as the measuring datum♦Sliding parts have excellent repeatability♦The display screen have a good capacity of resisting disturbance, durable keyboard, easy to changeBasic Function8 bit LED High-definition nixie tube, mm/inch mode, ABS/INC coordinate, conversion, zero clearing, reset, liner error compensation, center of 1/2, R arc function(RAC), vibration filtering, digital filtering, sleep mode, divide circle evenly (PCD), 200 sets sub datum function, drilling of oblique line, taper measurement, Anti-interference resistance, high speed, high resistance to vibration;Special functionsLinear drilling, PCD function, R function, Smooth R function, The simple R function, Chambering (applicable to: Milling machine,Boring machine), Tool conpensation, Machining of oblique plane, Calculator, etcParametersSupply Voltage range:AC 80V~220V,50~60HzPower consumption:15VAOperating temperature:0~45℃Storage temperature:-30~70℃Relative humidity:Less than 90%Readout allowable input signal:TTL square waveAllowable input signal frequency:Less than 5M HzMax resolution of digital display length:5µmMin resolution of digital display angle:0.0001/pulseCable length:3 meterWeight:1.2kgDimensions:283x178x70mm (11.2x7x2.8")Linear Scale communicate:DB9(RS232Display language:EnglishBackup data for power fail:power off Memory by E2PROM for ten yearsLifetime:five million timesNote:Read the instructions manual carefully before use and strictly follow them. Keep the manual for future references.

• 2 Axis Digital Readout DRO Display.2pc precision linear scales included. Travel Lengths:200mm+600mm,Note：The total length = 340mm+740mm(Travel Lengths +140mm)Can be Customized , 5 μm (0.0002") resolution (at 45ºC) Complete set with a digital readout DRO display (2 axis) with high precision
• The digital readout display system is equipped with a variety of intelligent functions: SDM 200 sets memory, power-off memory for 10years , circumference drilling, oblique line drilling, 1/2 centering, etc.
• The linear scale DRO kit is a necessary device for industries including mould manufacturing, machining and precision measuring instrument
• A calculator is equipped for more convenient usage.Applicable for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement, X-Y-Z working table monitor, mechanical control as well as other area of linear scale and rotary encoder
• All Products from the TOAUTO will be provided for 2 year warranty after sales and lifetime technical support,and 30-day return.Premium after-sales service from high-quality product, we take full responsibility for our promise.
