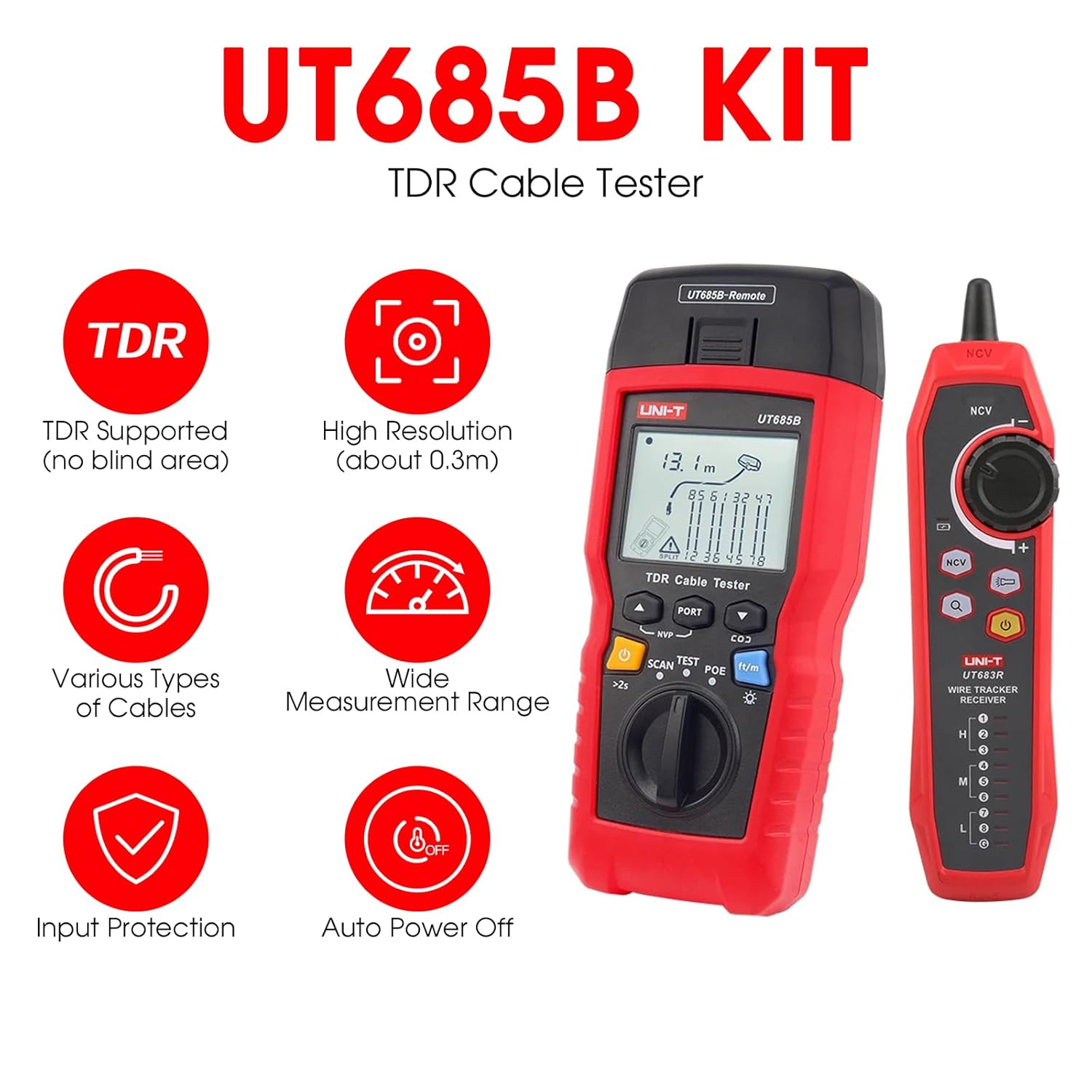

UNI-T Network Cable Tester,UT685B KIT TDR Cable Tester,ethernet Cable Wire Tracker Detector,LAN Tester RJ11 rj45 Tester Network Tools
4.4 (132 items)
Limited Time SaleUntil the end
00
50
42
$87.59 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $145.99
Product details
| Management number | 211306630 | Release Date | 2026/04/04 | List Price | $58.40 | Model Number | 211306630 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

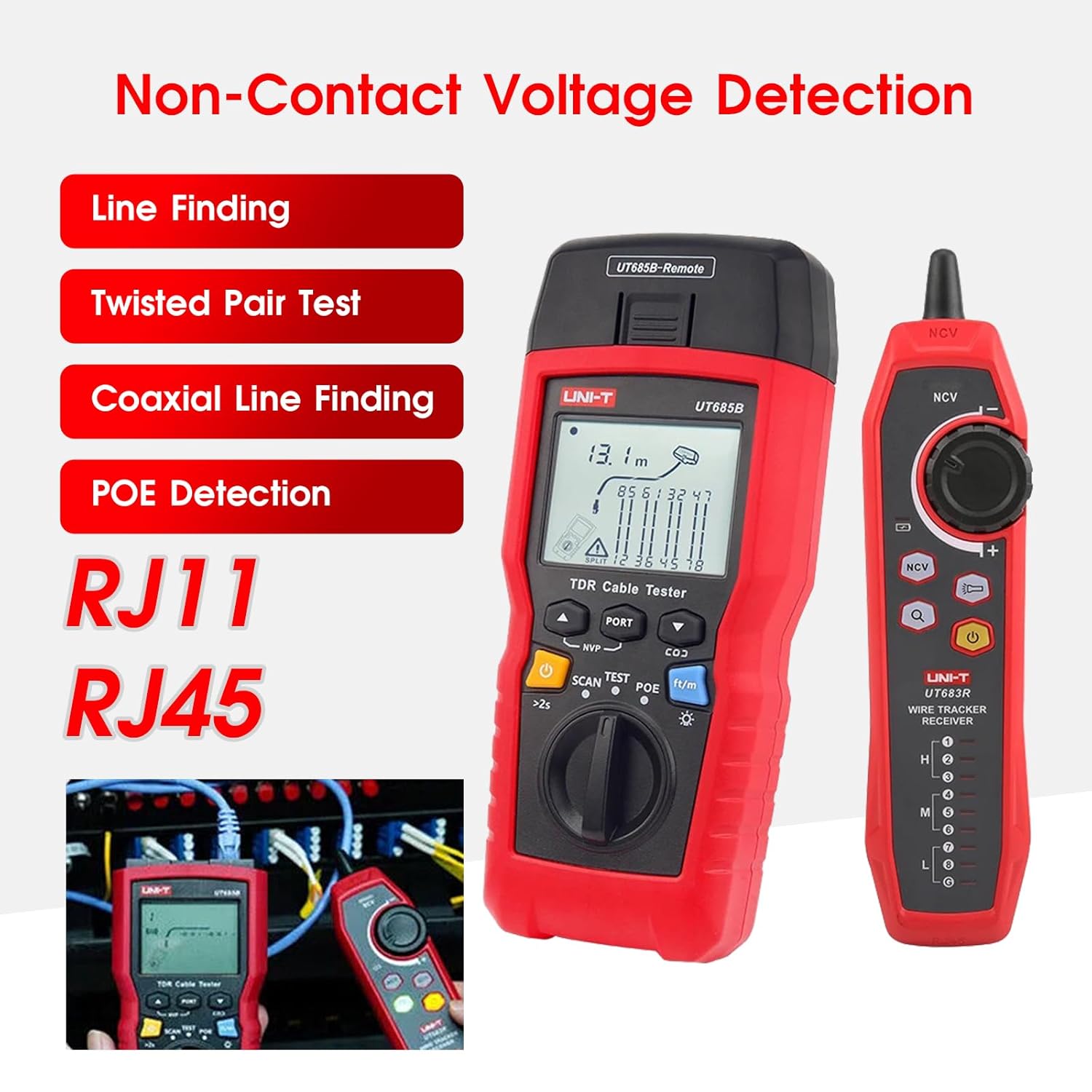

- 【UNI-T Upgraded Multi functional Network Cable Tester】 UT685B Kit TDR network has POE test, Cable length measurement,Line sequence test,Port detection,anti-interference RJ11 RJ45 CAT5 CAT6 cable test, continuity test, Ping network speed test, port flashing, sensitivity adjustment and LED flashlight function.
- 【Length measurement】UT685B cable tester range: 500m. Resolution: 0.3m. Typical accuracy: ± 4% or 0.6, whichever is greater (2ft). NVP uncertainty is an additional error. Calibration: Users can set the NVP values for twisted pair and coaxial cables. Actual NVP values are measured using cables of known length.
- 【Line sequence testing】used to detect wire faults, short circuits, misconnections, wire pair winding, and other issues. Draw the line length up to the fault point in proportion to visually represent the approximate location of the fault.
- 【Port detection】The UT685B RJ45 RJ11 cable line finder tester can accurately detect whether it is connected to an Ethernet port. At the same time, the port flashing function can be enabled while searching for lines.
- 【Application scope】 The UT685B cable tester and UT683R receiver are integrated to form an upgraded multi-functional TRD cable tester. This Network Cable Locator is mainly used for maintenance and testing of network communication rooms, network installation, wiring, network engineering, coaxial cable testing and other fields.
| Color | Red + Black |
|---|---|
| Model | UT685B Kit |
| Brand Name | UNI-T |
| Style Name | Handheld network cable tester |
| Item Weight | 0.8 Kilograms |
| Manufacturer | UNI-T |
| Power Source | Battery Powered |
| Item Dimensions | 3.94 x 1.57 x 7.87 inches |
| Measurement Type | Cable Test, Network Cable Tester, TDR Cable Tester |
| Specification Met | CE, RoHS, UKCA |
| Included Components | UT685B KIT TDR cable tester, UT683R Receiver |
| Maximum Operating Voltage | 1000 Volts |
| Minimum Operating Voltage | 40 Volts |
