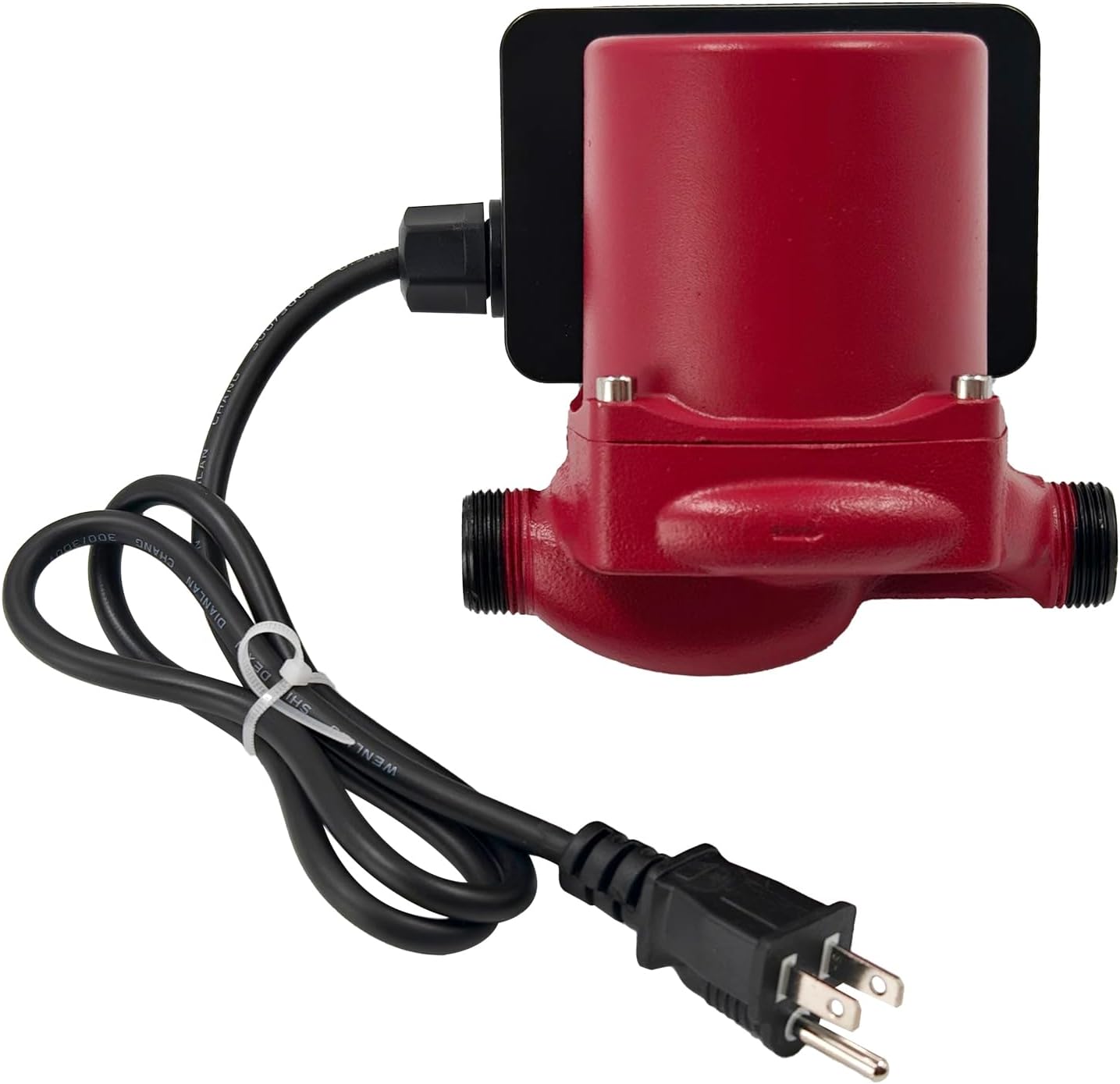

UP15-10SU7P/TLC 595916 Water Circulator Pump 115V 1/25 HP 3/4 Inch x 1/2 Inch NPT Reducing Union Compatible with Grundfos UP15-10SU7P Comfort Hot Water Recirculation Pump Replace 59896288P1
4.9 (117 items)
Limited Time Sale$99.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210144830 | Release Date | 2026/04/02 | List Price | $66.40 | Model Number | 210144830 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- REPLACE PART NUMBER: UP15-10SU7P/TLC, 595916, 59896288P1, GRU-595916. (TLC = Digital Timer, Line Cord, 6-Foot. )
- TECHNICAL SPECIFICATIONS: ①Voltage: 115V;②Phase: 1;③Horse Power: 1/25 HP;④Amperage: 0.23 Amps;⑤Main Frequency: 60 Hz;⑥Max Power Input: 25 W;⑦Max Ambient Temperature: 104 °F;⑧Max Operating Pressure: 145 Psi;⑨Flow Range: 0 - 6.3 GPM;⑩Head Range: 0 - 5.1 Foot;⑪Type Of Connection: 3/4" NPT;⑫Connection Size: 3/4 inch; ⑬Port-to-port Length: 5 1/8".
- APPLICATIONS: Water Circulation Pump Compatible with GRUNDFOS UP15-10SU7P/TLC, 59896288P1, 595916 Circulator Pumps. It Delivers Dependable And Quiet Circulation For Your Domestic Hot Water Systems--Hot Water On Demand for Ultimate Home Comfort.
- TIMER FUNCTION: The UP15-10SU7P/TLC Hot Water Recirculating Pump Is Equipped with A 24-Hour Timer. Users Can Precisely Set the Running Time Of the Pump According to Their Own Needs, Thereby They Can Obtain Instant Hot Water During the Necessary Periods While Reducing the Energy Consumption Cf Both the Pump And the Water Heater.
- INSTALLATION: This 59896288P1 Pump Can Be Directly Replaced Without The Need to Modify the System. If The Home Piping Is 3/4" NPT, It Can Be Installed Directly Without Any Additional Adapters; If It Is 1/2" NPT, This Pump Is Matched with A 3/4 Inch x 1/2 Inch NPT Reducing Union for 1/2 Inch Pipeline Connection.
