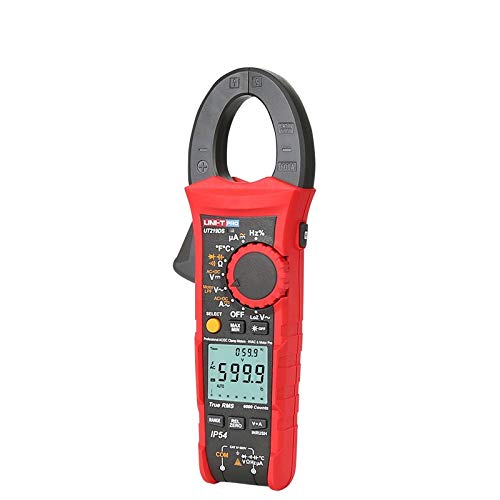

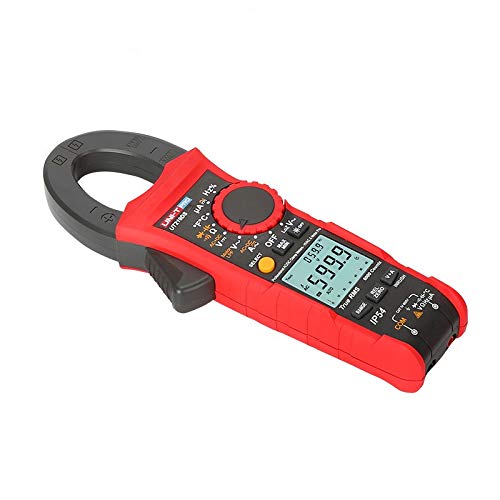

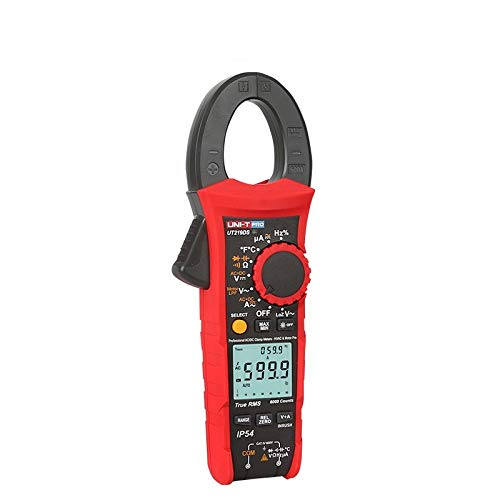

UT219DS IP54 600A True RMS Professional Digital Clamp Meter Jaw 33mm, LOZ ACV: 600V, DC Voltage: 600V, Resis.: 60MΩ, Capacitance : 60mF, Freq.: 600Hz~40MHz, Duty Cycle: 0.1%~99.9%, Temp.: -40~1000℃

MeterTo MeterTo mainly offers instruments and tools. Please confirm the product is offered by our store MeterTo when purchasing, otherwise we can't ensure the quality and after-sale service. Introduction UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians. Specification Model: UT219DS AC current (A) 600A ±(1.8%+6) DC current (A) 600A ±(1.8%+6) AC voltage (V) 600V ±(1%+6) DC voltage (V) 600V ±(0.6%+3) LoZ ACV 600V ±(2.5%+6) Resistance (Ω) 60MΩ ±(1%+3) Capacitance (F) 60mF ±(4%+7) Frequency (Hz) 600Hz~40MHz ±(0.1%+6) Duty cycle 0.1%~99.9% ±(2.6%+7) Temperature: -40~1000℃ ±(2%+5℃); -40~1832℉: ±(2%+9℉) Features Display count 6000 Auto/Manual range √ Jaw opening 33mm True RMS √ AC current frequency response 40Hz~400Hz AC voltage frequency response 40Hz~400Hz 3-phase motor sequence test 600V √ Low pass filter 1kHz, 3db attenuation √ V+A displays voltage and current at the same time √ Diode test 3V Measurement sampling rate 3 times/s Analog bar sampling rate 20 times/s Analog bar 31 segment Display interface (LCD) Dual Auto power off/MAX/MIN √ Low battery indication √ Data hold (H)/Relative mode (REL) √ ZERO mode √ Function selection (SELECT) √ Auto backlight/2m drop test √ IP rating IP54 Input impedance ≥10MΩ √ General Characterisitics Power 1.5V battery (R03) x 3 Display 35mm x 31mm Product net weight 310g Product size 234.6mm x 82mm x 47mm Standard accessories Test leads, batteries, carrying bag, PC software

• 3-phase motor sequence test: 600V;
• AC+DC voltage 7; V+A dual display;
• Auto/Manual range √;
• Analog bar 31 segment;
• Temperature and μA measurements (flame sensor).
