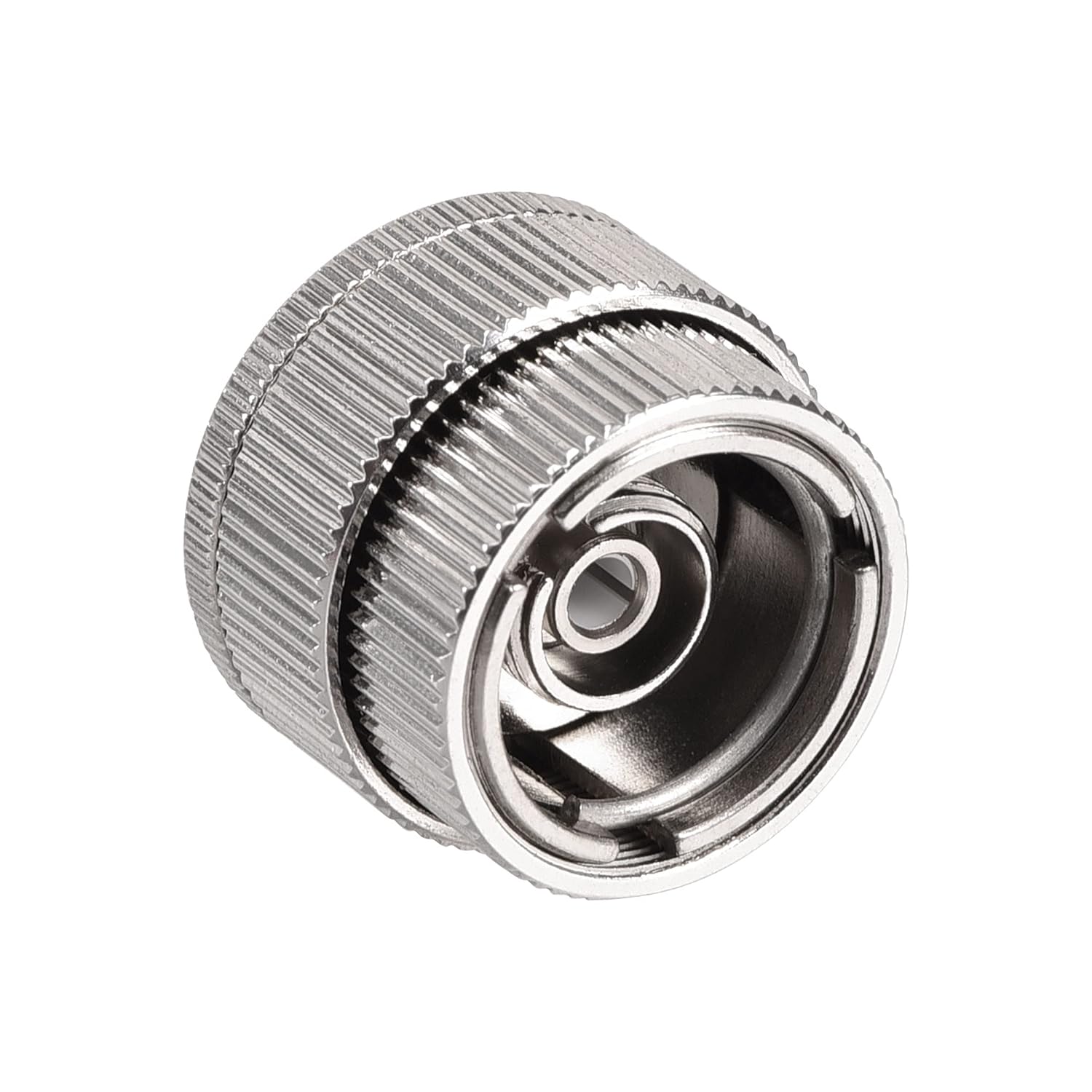

uxcell FC UPC Mechanically Variable Optical Attenuator, Single Mode/Multi-Mode 0-30dB Adjustable Fiber Optic Attenuator

Description:1. Both end of the adapters are the FC UPC connector.2. To ensure the optical power stay in a stable level on its original transmission wave.3. The fiber optical attenuator applies to single mode or multimode.4. High attenuation accuracy, low added loss and good stability.7. Widely used in the fiber optic communication system, for example, optical instrument calibration or fiber signal attenuation.Specification:FC: Ferrule ConnectorConnector: FC/UPC Female to FC/UPC FemaleAdjustable Attenuation Value: 0-30dBFiber Mode: 9/125 Single mode / 62.5/125 Multi-modeOperation Wavelength: 1310nm, 1550nm, 850nm, 1550nmOperation Temperature: -40 to +75°CMaterial: Metal, PlasticColor: Red, SilverTotal Size: 24x20mm / 0.94x0.79-inch(L*D)Package Included: 1 pcs x Fiber Optic Attenuator

• [MAIN PARAMETER]: FC/UPC; Fiber Mode: 9/125 Single mode / 62.5/125 Multi-mode.
• [ADJUSTABLE]: Mechanically Adjustable Attenuation Value: 0-30dB.
• [FEATURE]: To ensure the optical power stay in a stable level on its original transmission wave.High attenuation accuracy, low added loss and good stability.
• [SPECIFICATION]: Operation Wavelength: 1310nm, 1550nm, 850nm, 1550nm.
• [APPLICATION]: Widely used in the fiber optic communication system, for example, optical instrument calibration or fiber signal attenuation.
