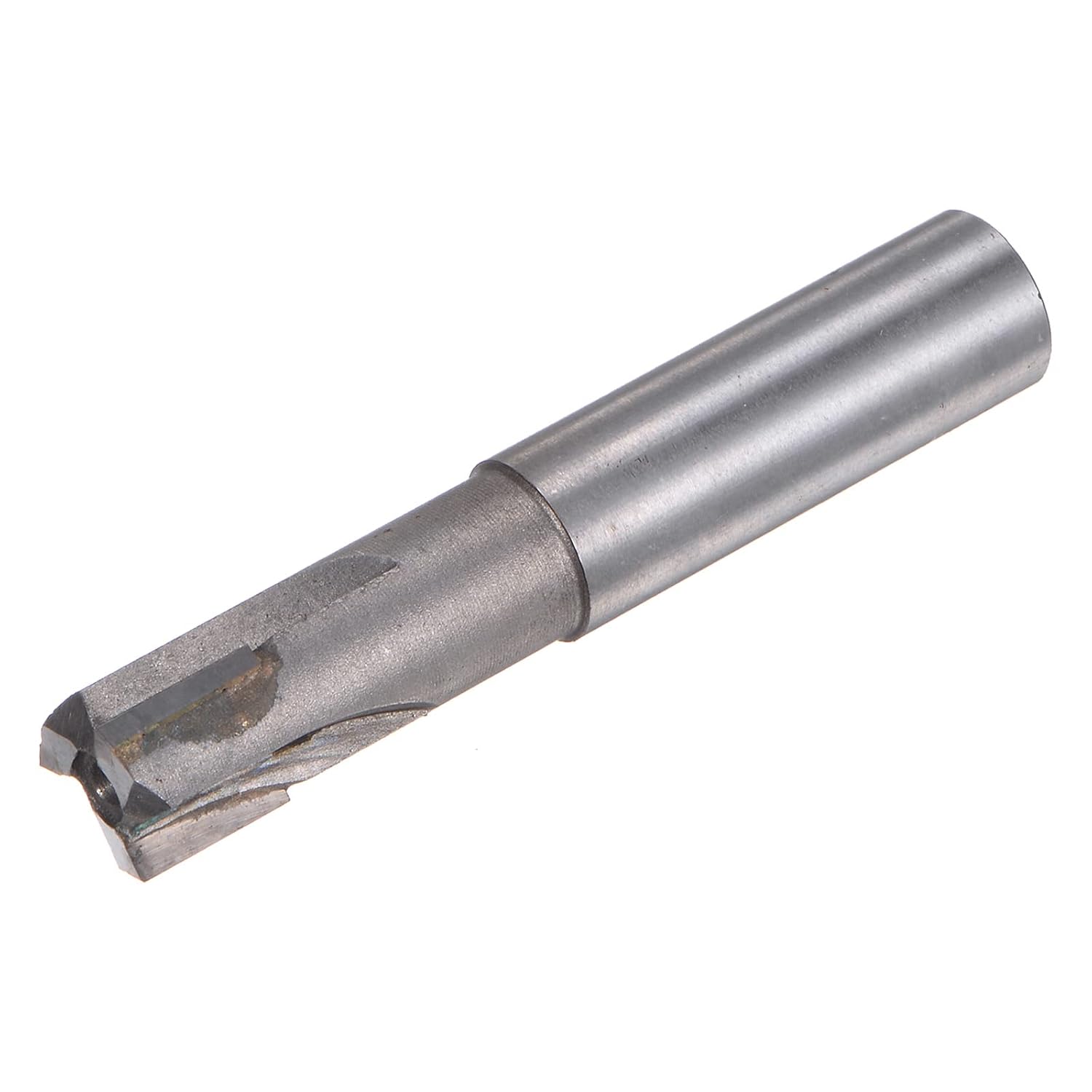

uxcell Square Nose End Mill, 12mm Cutting Dia Tungsten Carbide Tip 3 Straight Flutes Milling Cutter with 12mm Straight Shank
4.7 (108 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211139559 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211139559 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:Cutting Diameter: 12mm / 0.47"Cutting Flute Length: 15mm / 0.59"Overall Length: 80mm / 3.15"Straight Shank Diameter: 12mm / 0.47Tip Material: Tungsten CarbideShank Material: High Speed Steel (HSS)Number of Flutes: 3 FlutesEnd Cut Type: Square EndPackage Content: 1pcs x Square Nose End MillDescriptions:Tungsten carbide tip has high hardness, high strength, wear resistance. With good milling and cutting performance, carbide can run at higher speed than high-speed steel.Suitable for cutting alloy steel, stainless steel, cast iron, carbon steel, aluminum, copper, plastic, etc.. For shallow groove machining, side milling and finishing. Use on CNC machining centers, milling machines, drilling machine, lathes and other high-speed CNC machine tools.Features square end cut, 3-flute design. Straight flute tool allows chips to collect in the flutes when cutting, well suited for most applications in shallow cuts. Features just the base substrate without any coatings, good for general purpose cutting in wide ranges of applications.The longer the length of the tool clamped by the chuck, the better. If the clamping length is shorter, you need to lower the feed rate and cutting speed to reduce vibration and extend the tool life.Tips: Combined with the material to be processed, select an appropriate feed rate and cutting speed to improve the tool life and obtain better processing accuracy and performance.
- Square Nose End Mill: Cutting diameter: 12mm / 0.47"; cutting flute length: 15mm / 0.59"; straight shank diameter: 12mm / 0.47; overall length: 80mm / 3.15"; number of flutes: 3 flutes.
- Carbide Tip: Tungsten carbide tip has high hardness, high strength, wear resistance. With good milling and cutting performance, carbide can run at higher speed than high-speed steel.
- Wide Applications: Suitable for cutting alloy steel, stainless steel, cast iron, carbon steel, aluminum, copper, plastic, etc.. For shallow groove machining, side milling and finishing.
- Features: Square end cut, 3-flute design. Straight flute tool allows chips to collect in the flutes when cutting, well suited for most applications in shallow cuts. Features just the base substrate without any coatings, good for general purpose cutting in wide ranges of applications.
- Tips: Use on CNC machining centers, milling machines, drilling machine, lathes and other high-speed CNC machine tools. The longer the length of the tool clamped by the chuck, the better. Select an appropriate feed rate and cutting speed.
| Shape | Square |
|---|---|
| Cut Type | Finishing, Square |
| Size Name | 12mm |
| Brand Name | uxcell |
| Unit Count | 1.0 Count |
| End Cut Type | Square End |
| Finish Types | Unfinished |
| Manufacturer | uxcell |
| Material Type | Tungsten Carbide |
| Cutting Length | 15 Millimeters |
| Tolerance Held | Standard |
| Cutting Diameter | 12 Millimeters |
| Number of Flutes | 3 |
| Number of Cutting Edges | 3 |
