Variable Resistor Potentiometer Solder Lug Splined Shaft Audio Volume Control Logarithmic A T18SL (A100K)

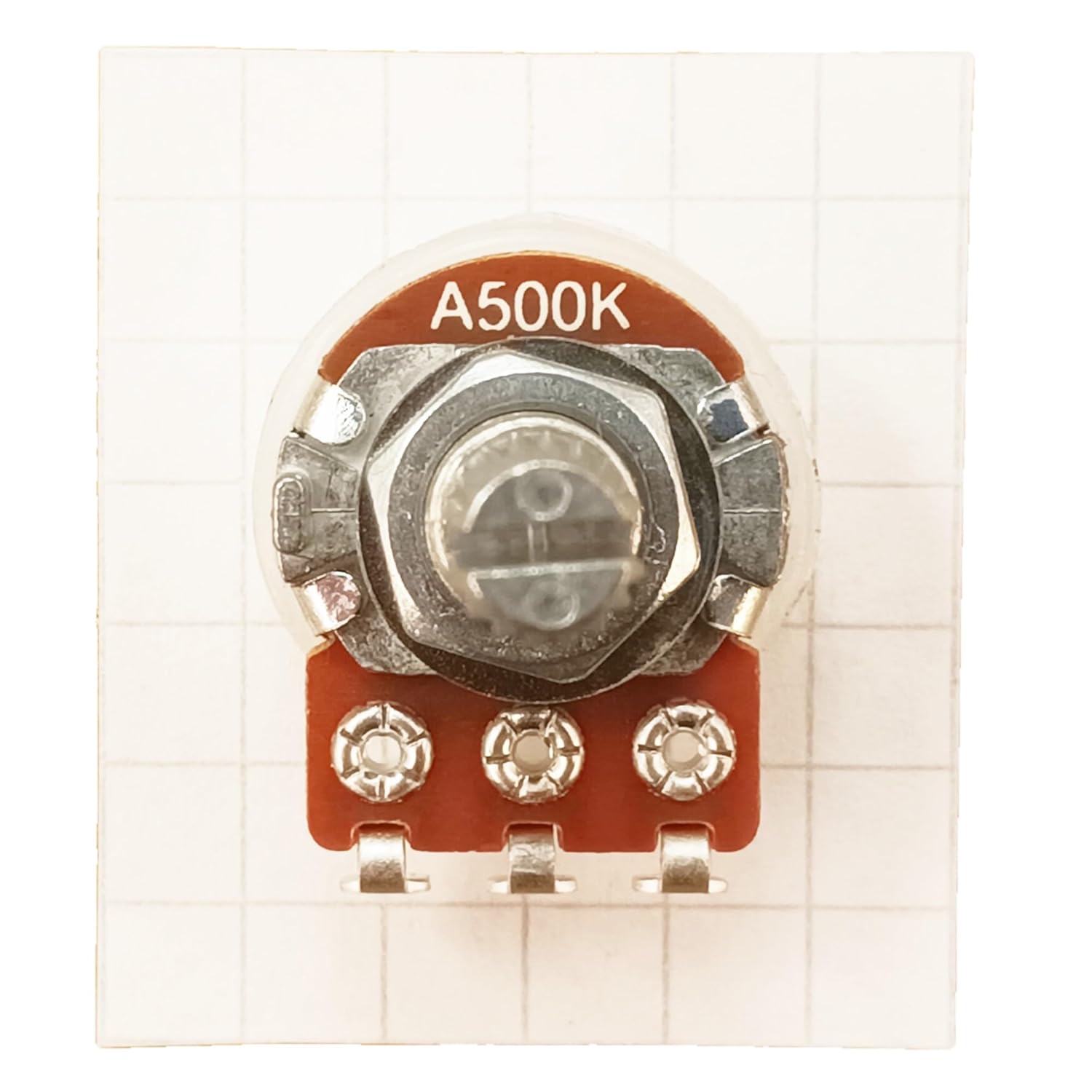

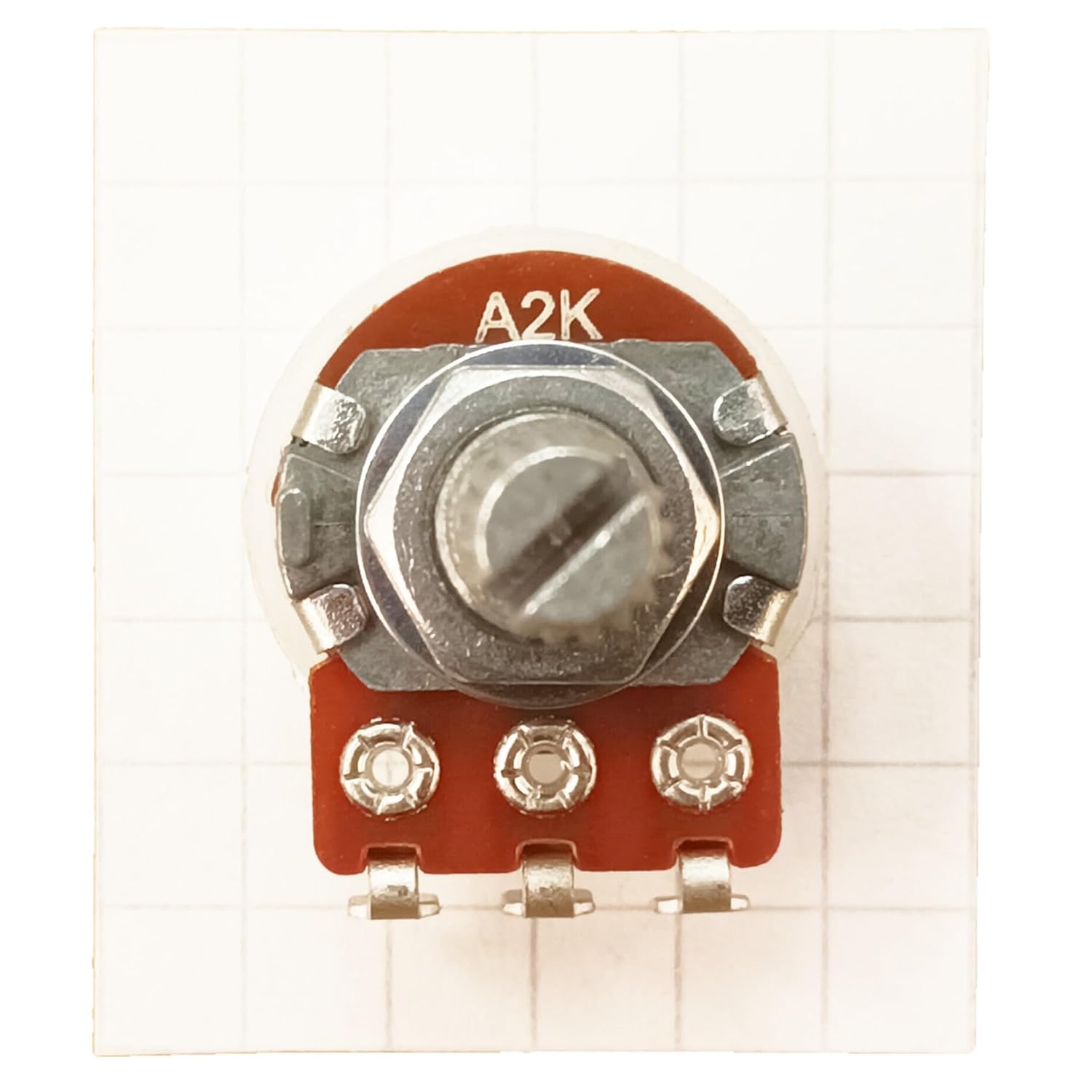

Solder Lug Connection 16mm Logarithmic Variable Resistor Potentiometer, Mono Audio Log A Track Pot. This is one item of new, single track logarithmic audio taper carbon track potentiometer with solder lug connections in various track resistances. These are new items and come with a nut and a washer for mounting on a front panel. The splined T18 shaft is 6mm diameter. The mounting hole required is 7mm diameter. The connection pins are solder lugs. The "A" prefix before the track resistance value denotes a logarithmic track taper. The max power rating is 0.1W. The total shaft length is 16mm. 6mm of this is the thread and 10mm of this is the turning part. The connections are 5mm apart. The main body diameter is 16mm. Not all the resistance variations have a rear plastic cap and an anti-rotation lug. The variation pictures show the exact parts. If you have a pot with a track label of A503, this is an A50K where 3 is the number of zeros after 50 in Ohms. A 502 would be 5K, a 472 would be 4K7 or 4.7K etc. Sometimes pots may also be labelled with the A as a suffix i.e. 50KA.

• Replacement splined shaft audio volume control
• Logarithmic A audio track taper
• Solder lug connections
• 0.1 Watt track power rating
• Various track resistances available
