VEVOR Split Charge Relay Kit, 6mtr 12V, Automatic Dual Battery Isolator Kit with 140AMP Voltage Sense Relay VSR, Compatible with RV Marine Car Vehicle Truck Caravan Camper Yacht ATV UTV Boats Workshop
4.8 (16 items)
Limited Time Sale$50,268.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 214267385 | Release Date | 2026/04/12 | List Price | $33,512.00 | Model Number | 214267385 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

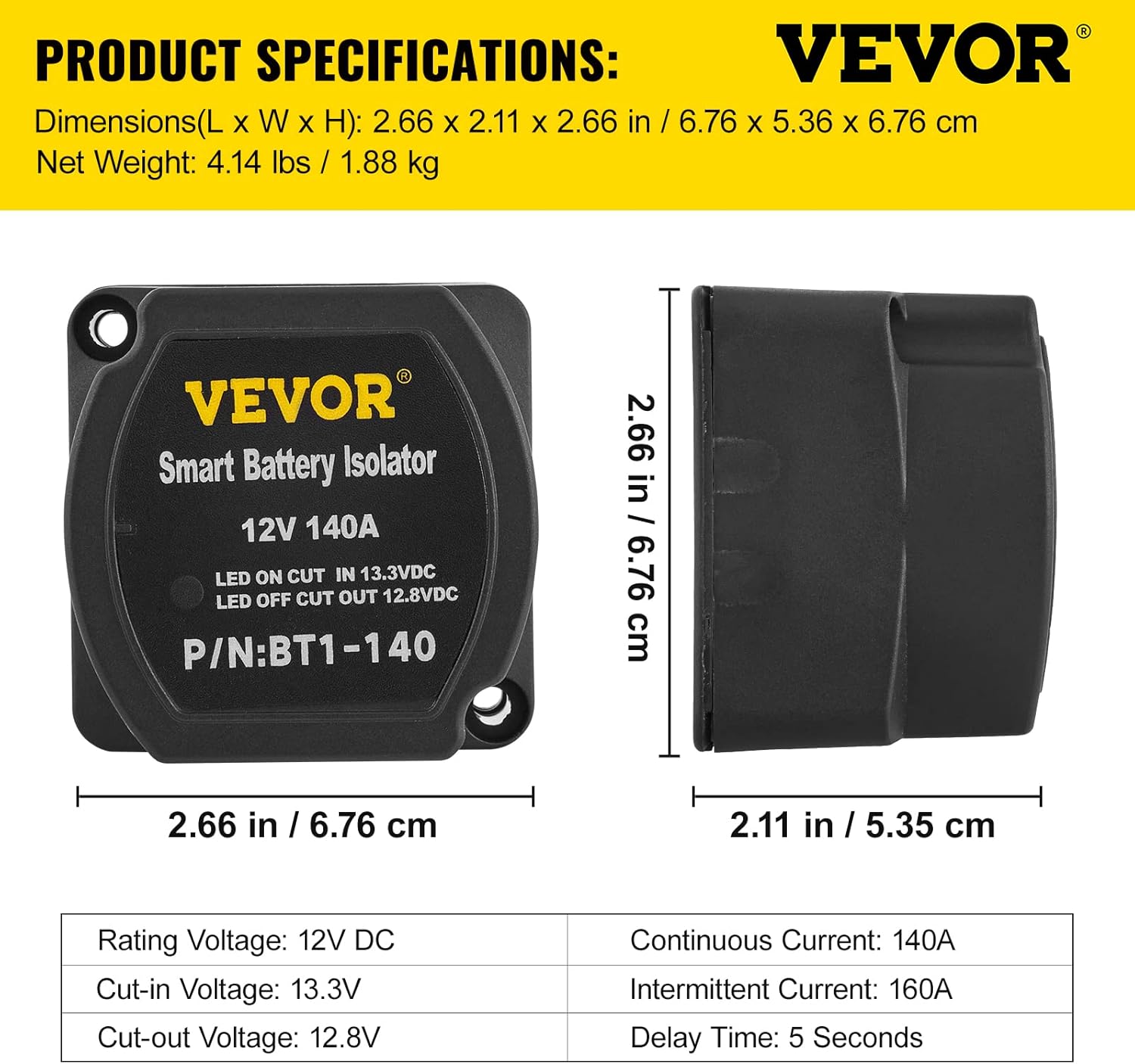

SpecificationsModel: JDQTJ-6MRating Voltage: 12V DCContinuous Current: 140AIntermittent Current: 160ACut-in Voltage: 13.3VCut-out Voltage: 12.8VIP Rating: IP65Material: Nylon PlasticCurrent Draw-Charging: 280mACurrent Draw-Standby: 8mAPower Studs: M6 Stainless SteelDelay Time: 5 SecondsPackage Content1 x Split Charge Relay6 x 1 mtr Red Battery Cable 110A1 x 1 mtr Black Ground Cable 110A1 x Negative Marine Battery Terminal1 x Positive Marine Battery Terminal2 x Fuse Holders3 x Lug Connector3 x Insulated Blue Ring Terminal15 x Cable Ties2 x 250 mm Red 110A Cable2 x Shrink Tube1 x Drill Bit1 x Black Split Conduit1 x Set of Screws

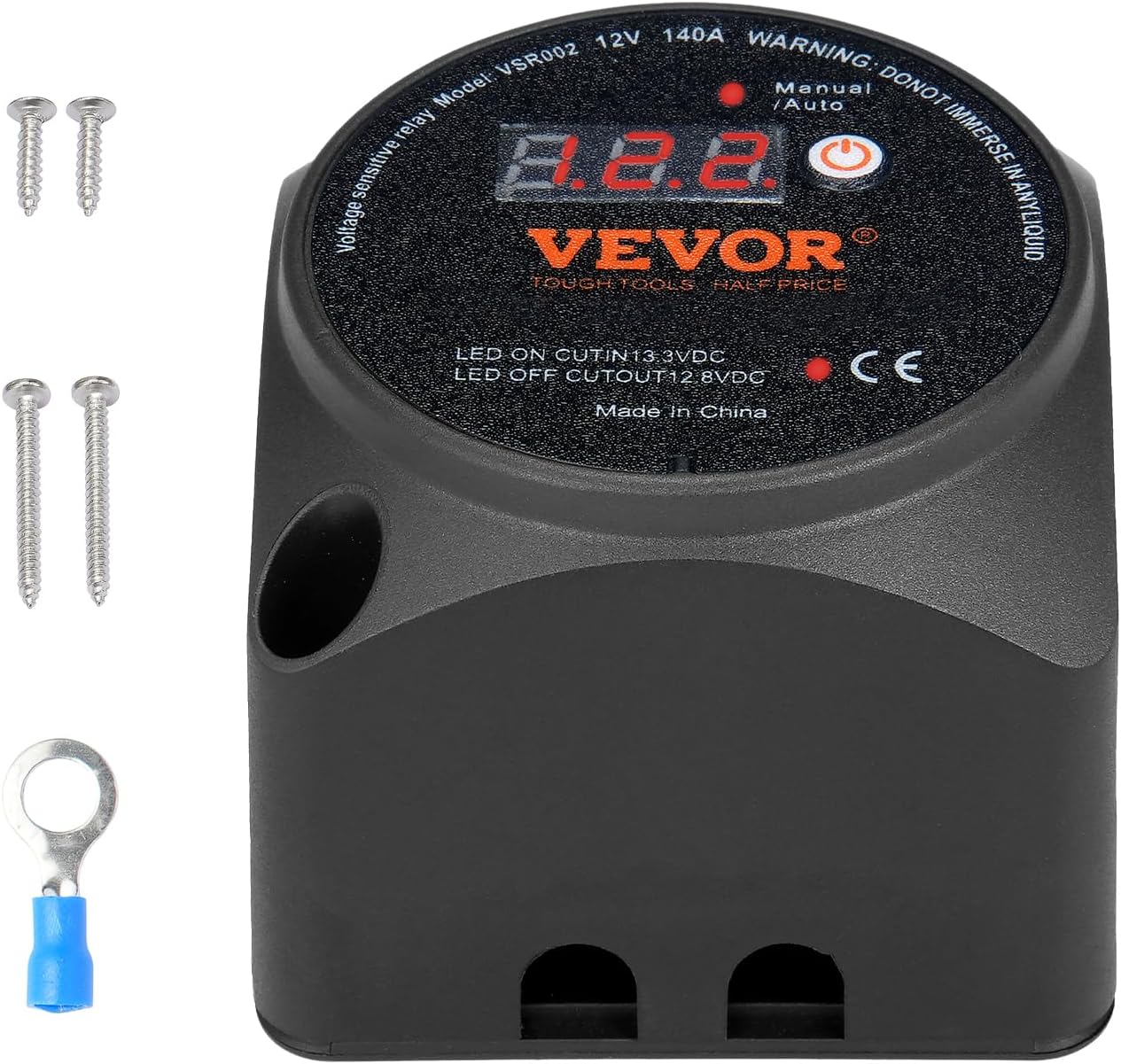

- Dual Battery Isolator: The smart battery isolator cuts in at 13.3 volts and cuts out at 12.8 volts to ensure your primary battery is always charged and ready to start your vehicle. It can charge two batteries simultaneously and isolate them from each other when the vehicle is turned off.
- Easy to Install: This split charge relay kit comes with complete accessories, allowing you to start installing directly without purchasing additional components. Besides, we have detailed instructions for you to complete the installation easily and flawlessly.
- Rugged & Durable: Split charge relay is made of a premium plastic material, which is shockproof and dustproof, ensuring maximum strength and durability for long-lasting usage. You will always be prepared and confident to take on any challenge.
- Superb IP65 Waterproof: Voltage sensitive relay is waterproof up to IP65, which means that your isolator is secure for use even in dusty, wet, and unexpected extreme weather environments. Great for extreme vibration applications as well.
- Fit Various Vehicles: This isolator kit 12v has a compact size of 2.66" x 2.11" x 2.66", suitable for almost anywhere. Mainly used in off-road vehicles, camper vans, RVs, caravans, 4x4s, leisure vehicles, ships, yachts, marine applications, etc.
| UPC | 197988561941 |
|---|---|
| Model | JDQTJ-6M |
| Wattage | 3.36 watts |
| Brand Name | VEVOR |
| Part Number | Split Charge Relay Kit 6mtr 12V |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Open |
| Manufacturer | VEVOR |
| Mounting Type | Screw Mount |
| Connector Type | Screw |
| Current Rating | 140 Amps |
| Item Type Name | 6mtr 12V, Automatic Dual Battery Isolator Kit with 140AMP Voltage Sense Relay VSR, Compatible with RV Marine Car Vehicle Truck Caravan Camper Yacht ATV UTV Boats |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Specification Met | CE |
| Included Components | 1 x Split Charge Relay |
| Contact Current Rating | 140 Amps |
| Minimum Switching Voltage | 13.3 Volts |
