VGA LCD Controller Board for 21.5 inch LM215WF3 SDC2 1920x1080 40 Pin EDP LCD Screen 12V
4.8 (63 items)
Limited Time Sale$28.50 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209106811 | Release Date | 2026/03/29 | List Price | $19.00 | Model Number | 209106811 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

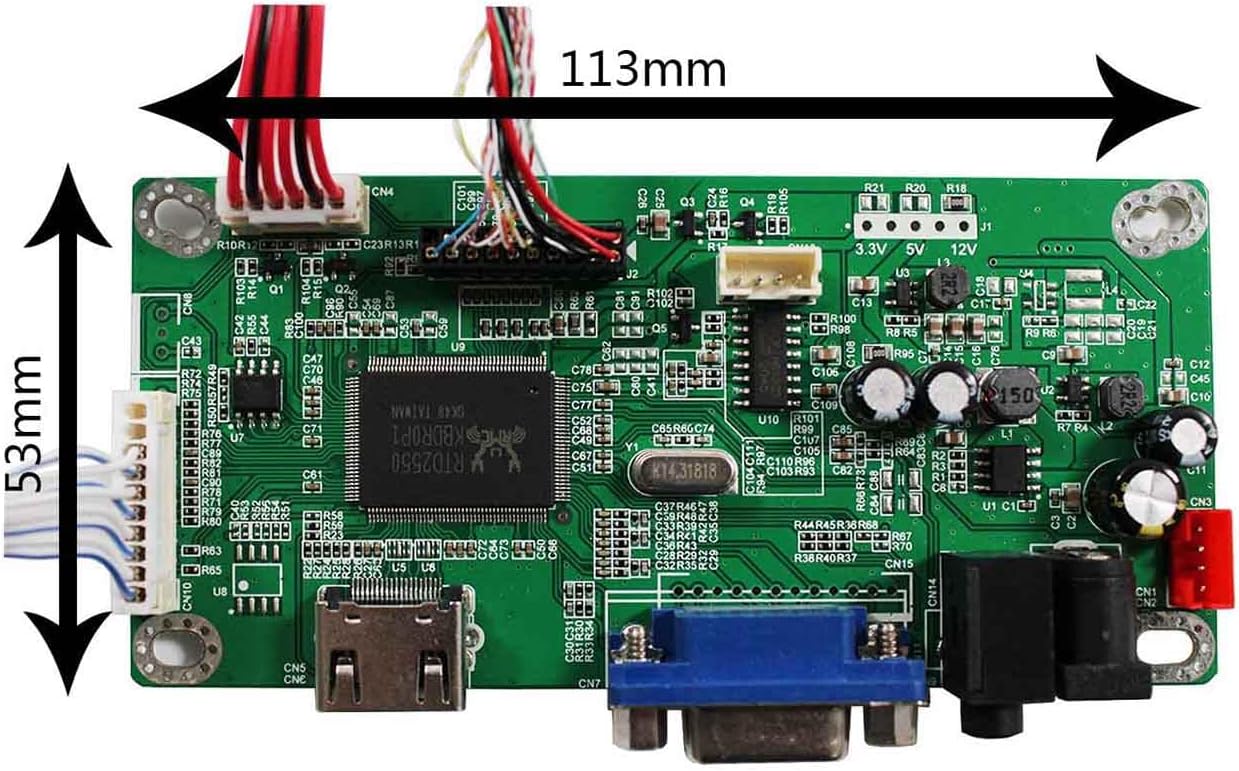

LCD Controller Board: VGA Board Work for 40Pin EDP LCD ScreenInput Power Adapter:12Vdc More than 3A.Come In Standby Model When Not Input SignalStandby Model <0.3WAudio Input: VGAAudio Output: EarphoneOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: English Board Size: 113mm x 53mm x 16mmCompatible Work With:21.5inch 1920x1080LM215WF3-SDC2 Packing list :1× VGA LCD Controller Board VS-XY-VH2E556-V201× Inverter card with cable1× EDP Cable1× Keyboard with cable
- 【Compatible Screen model 】 21.5 inch 1920x1080 LM215WF3-SDC2 40pin eDP LCD screen
- 【LCD Controller Board】Video input: VGA,Audio Output:Earphone ，Pls ensure that the board is used in an insulated environment to avoid short circuits.
- 【Input Power Supply】12V DC more than 3A (power adapter not included in package ,should be prepared by yourself) .

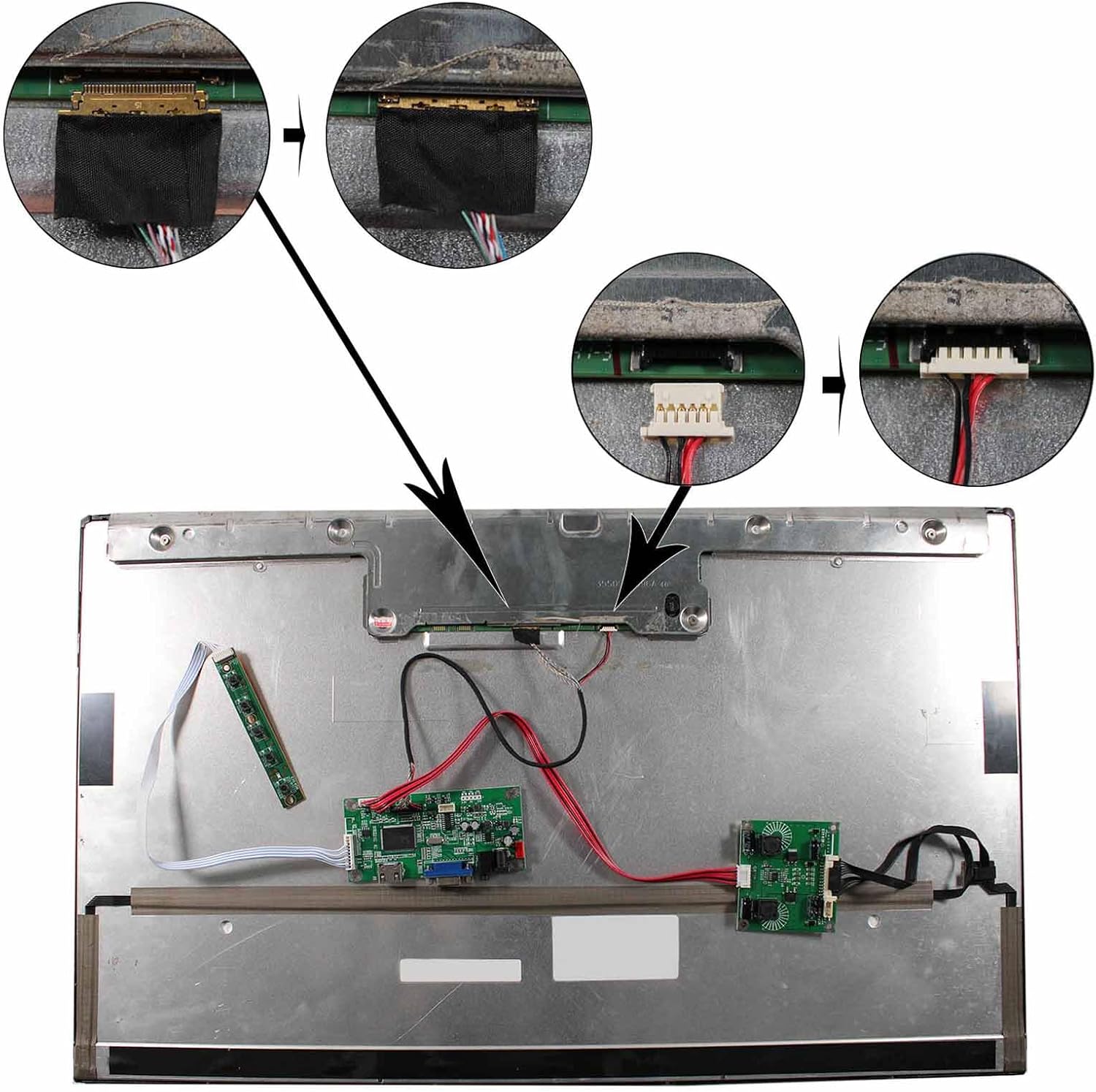

- 【Plug and play】 Connecting the cables and ports according to link picture details (if screen white screen ,or led light flash,that means the signal cable connecting wrong ) ,Power on ,enter signal cable ,Button light become green,the screen can work well.
- 【Packing lists】1× VGA LCD Controller Board VS-XY-VH2E556-V20,1× Inverter card with cable,1× EDP Cable,1× Keyboard with cable
| UPC | 619438624872 |
|---|---|
| Brand | FanyiTek |
| Color | for LM215WF3-SDC2 |
| Manufacturer | FanyiTek |
