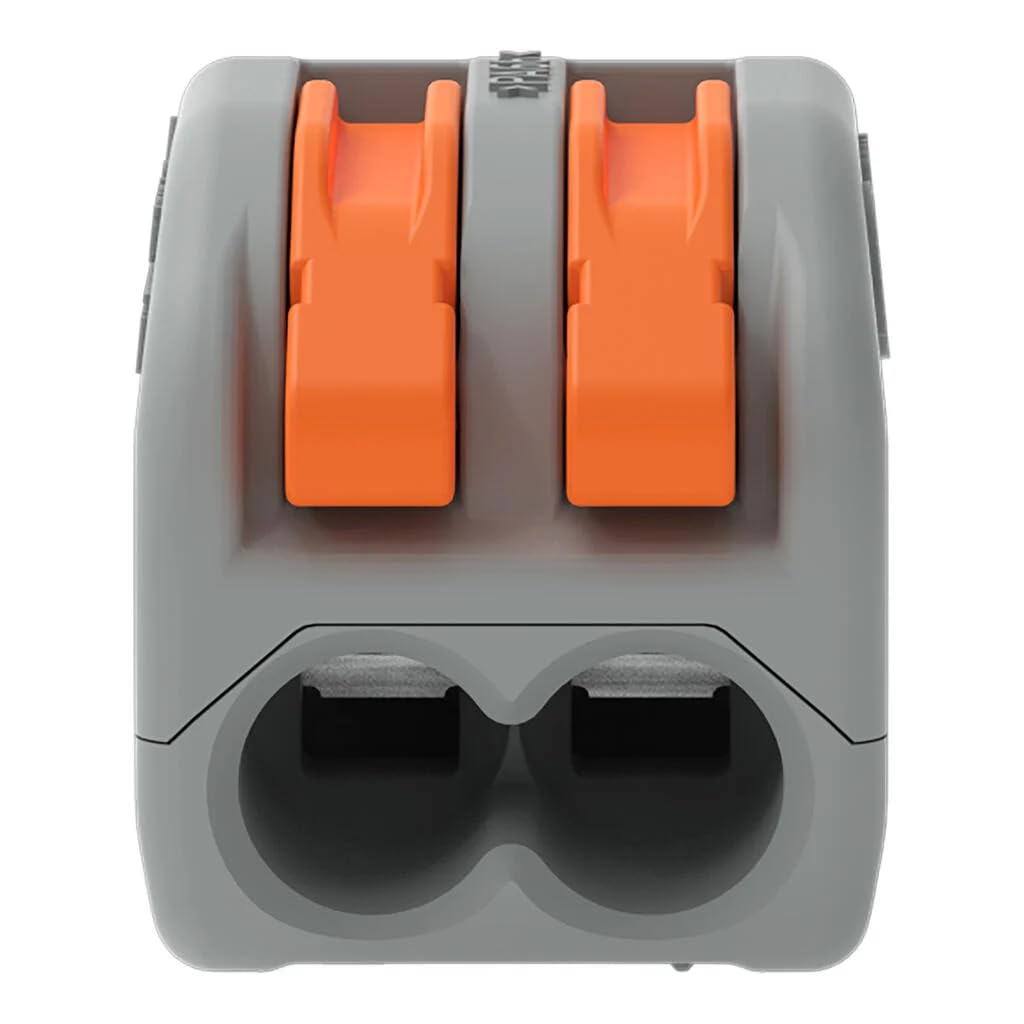

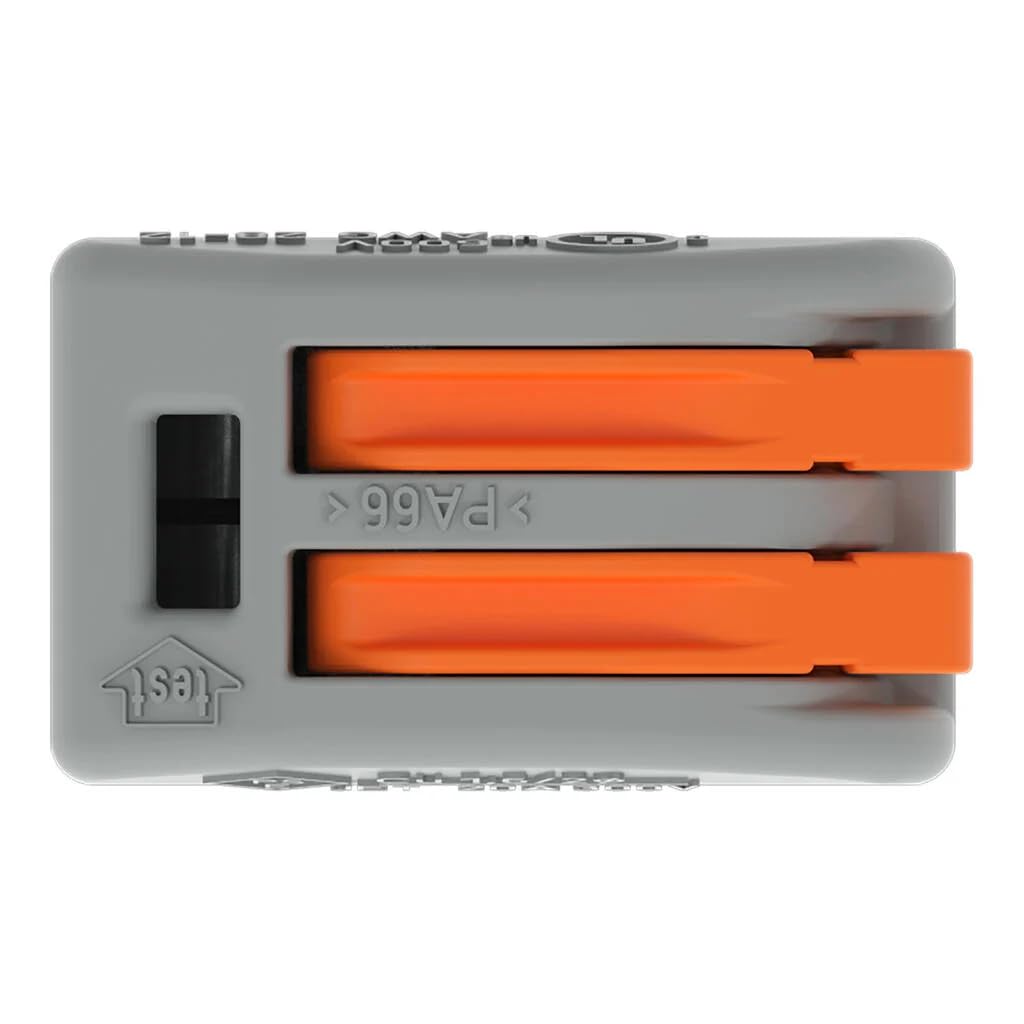

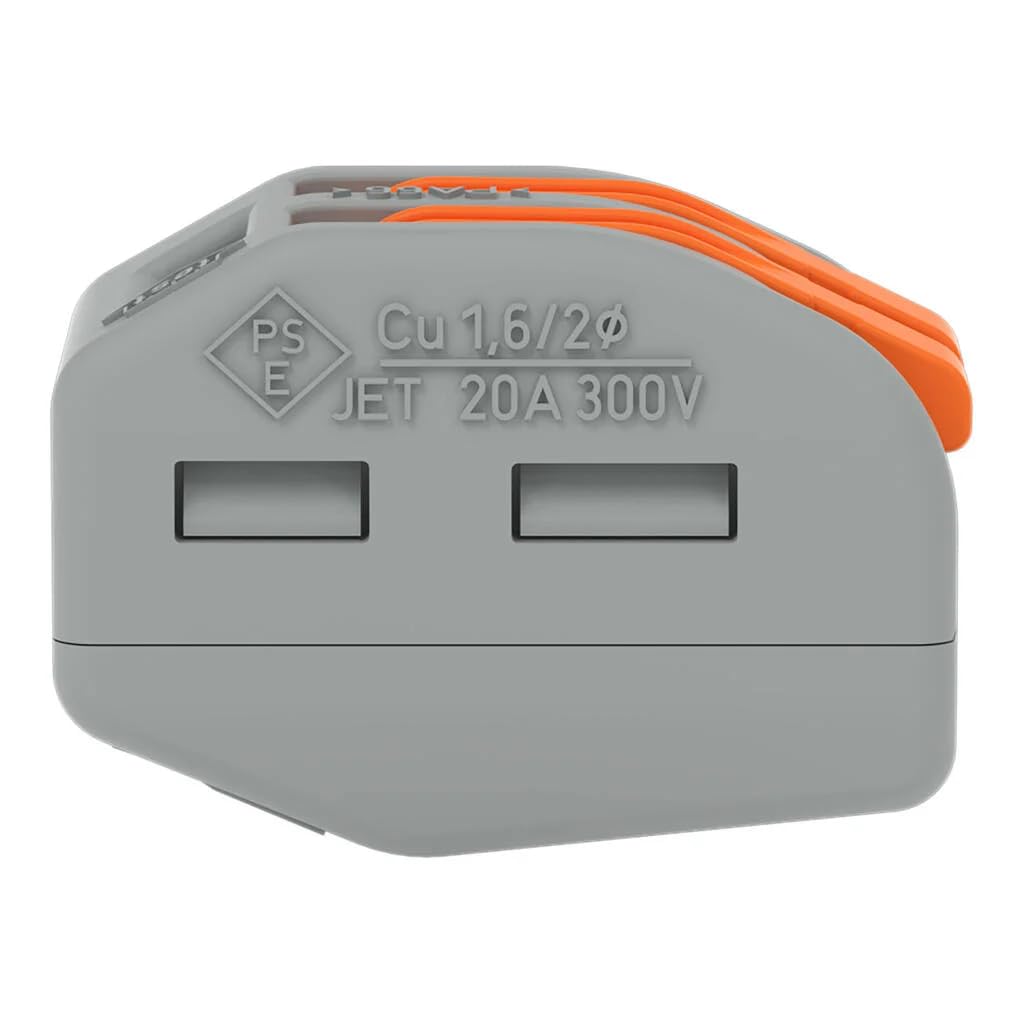

Wago 222-412 LEVER-NUTS 2 Conductor Compact Connectors 100 PK
4.9 (38 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211029632 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211029632 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The 2-conductor 222-412 is ideal for compact and complex applications where space is at a premium For all connections requiring... Stranded / solid wires Wide range of wire sizes. Combination of different wire sizes and types in one connector Small space consumption Built-in test point Protection against electrical shock, touch safe Low installed cost and safe operation Maintenance-free connection A reusable connector
- Cross section: 28 - 12 AWG (stranded and solid)
- Electrical specs: 600 V (1000 V signs and fixtures) 20 A maximum
- Strip length: 9 - 10 mm / 0.37 in
- Maximum operating temperature: 105 C
| UPC | 638183899885 696735387518 783961831127 |
|---|---|
| Color | Gray |
| Gauge | 12.0 |
| Model | 222-412 |
| Pitch | 9 Millimeters |
| Voltage | 600 Volts |
| Brand Name | WAGO |
| Unit Count | 1 Count |
| Item Weight | 150 Grams |
| Part Number | DZ-4RUJ-TQ3A |
| Manufacturer | Wago Corp. |
| Material Type | Copper |
| Mounting Type | DIN Rail Mount |
| Connector Type | Lever-nuts |
| Current Rating | 20 Amps |
| Number Of Poles | 2 |
| Specification Met | UL |
| Temperature Range | 105 Degrees Celsius |
| Number Of Contacts | 2 |
| Number of Positions | 2 |
| Upper Temperature Rating | 105 Degrees Celsius |
