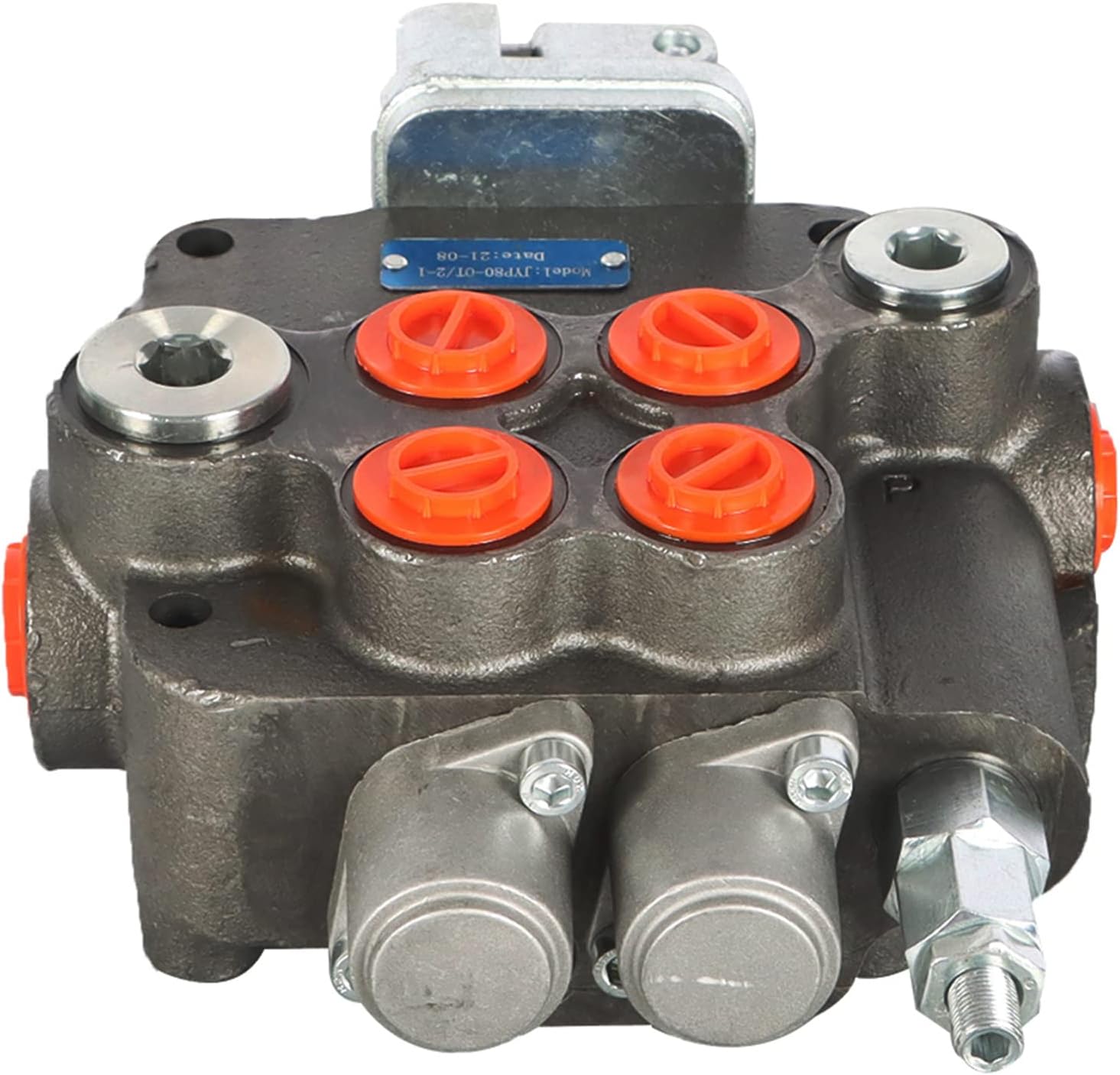

waltyotur Hydraulic Directional Control Valve 2 Spool 21 GPM Hydraulic Loader Valve, SAE Ports, 3625 PSI Double Acting Valve for Small Tractors Tractors Loaders Log Splitters

2 Spool 21gpm Hydraulic Directional Control ValveSpecification:Material: cast ironNominal flow: 21GpmMax operating pressure: P=3625 PSI, T=725 PSI, A & B=4350 PSIA & B Work Ports: 10 SAE O-Ring (7/8" -14) ThreadInlet Port: 10 SAE O-Ring (7/8" -14) ThreadOutlet Port: 12 SAE O-Ring (1-1/16" -12) Thread3-5/16" Mounting HolesFeatures:-High Performance: This hydraulic directional control valve is designed to manage and direct hydraulic oil flow between hydraulic pumps and hydraulic cylinders, motors, tanks, etc.-Spring Return: All spools are standard double acting with spring return to the neutral position, for double-acting cylinders.-Inner Check/Relief Valve: The valve body's check valve and check valve can ensure that the hydraulic oil does not return and help you complete your work better and securely.-Durable & Rigid Structure: Precision ground and hard chrome-plated spools assure a long life, high-tensile strength cast iron monoblock construction,and SAE O-Ring ports ensure solid seal and prevent blockages.-Handle Design: The control handle is convenient to operate, which has a spring on the bottom of the handle that resets it to the neutral position.-Wide Application: For use in small tractors, tractors loaders, log splitters, and etc.Package Included:1 x 2 Spool Hydraulic Directional Control ValveNote: The oil port dimensions of this product are PT: 7/8 inches in the US standard, AB: 3/4 inches in the US standard, and C port: 7/8 inches in the US standard

• Hydraulic Spool Valve: Equipped with 2 spools and SAE type ring inlet/outlet port. Maximum pressure of this hydraulic is 3625 PSI, and maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
• Double Acting Cylinders: Hydraulic control valve used to operate double-acting cylinders. All standard spools are spring-returned and can be reset to the neutral position. There are springs at the bottom of the handles that make the joysticks easy to control.
• Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
• Structure: This hydraulic directional control valve comes with 2 spool, with cast iron construction for long-time use, and the solid structure can provide long-term service. The design allows it to install in narrow areas and maximizes its control capabilities.
• Wide Application: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.
