waveshare PoE HAT (H) with Case for Raspberry Pi 5 / CM 5,Power Over Ethernet HAT (H) Expansion Board,802.3af/at Network Standard,Isolated Switched-Mode Power Supply,5V 5A Output
4.3 (77 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212285471 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212285471 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

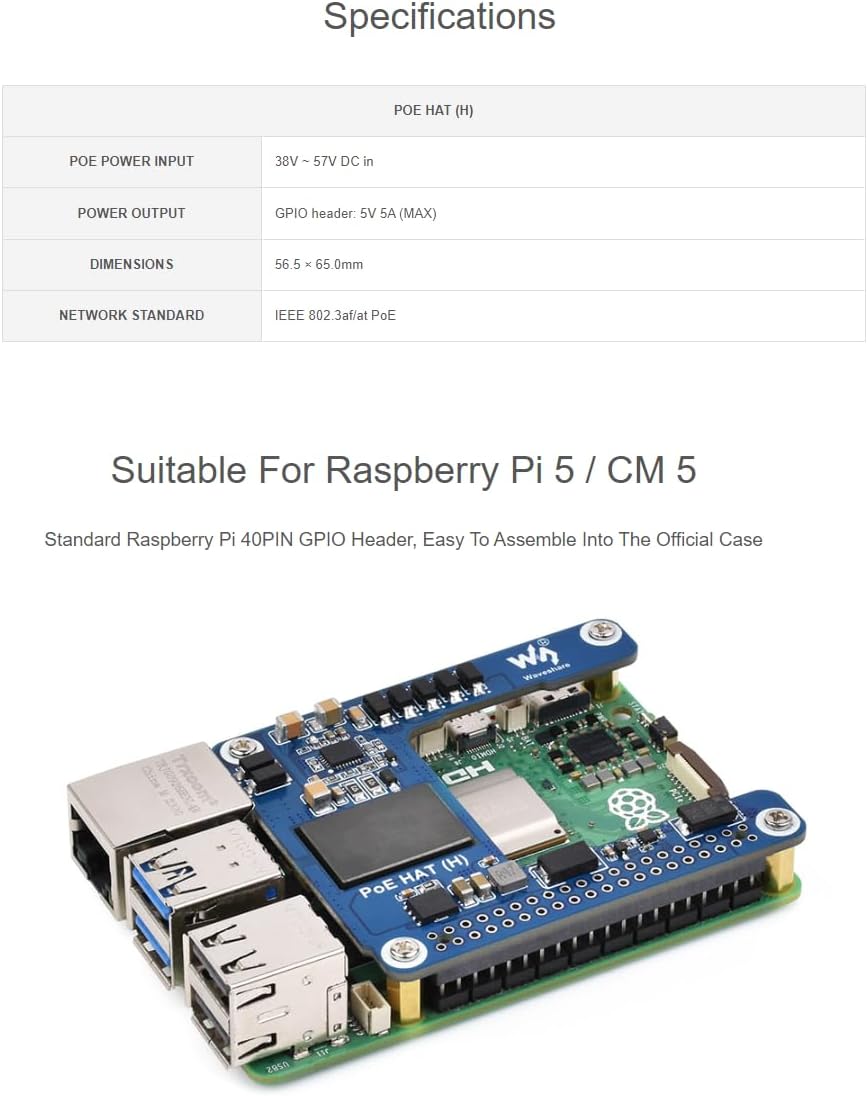

Introduction PoE HAT (H) is a power-over-Ethernet (PoE) expansion board for Raspberry Pi 5, supporting IEEE 802.3af/at network standards Designed to work with PoE routers or switches that support the IEEE 802.3af/at network standards, the Raspberry Pi can achieve both network connectivity and power supply with just a single Ethernet cable. Features Based on Raspberry Pi 40PIN GPIO interface Supports Power over Ethernet (PoE), supports IEEE 802.3af/at PoE network standard Adopts isolated SMPS (Switching Mode Power Supply) Compact and easy to assemble Specifications PoE input voltage: 37V ~ 57V DC input PoE-GPIO pin header: 5V 5A (MAX) Network standards: Supports IEEE 802.3af/at PoE Product size: 56.5 x 65.0 (mm) Application Example With This Product, You Can Use An Ethernet Cable With PoE Function To Power The Raspberry Pi 5 / CM 5 Directly Package Content PoE HAT (H) x1 Raspberry Pi 5 Official Case x1 Standoffs pack x1 FAQ 1.Can PoE HAT (H) be used on PI4B or PI3B+? No, PoE HAT (H) only supports PI5 2.Will PI 5 have a limited current warning? The Raspberry Pi board will detect the USB power supply current, if it does not reach the maximum current of 5A, the USB output will be limited, because the PoE HAT (H) is powered to the board through 40PIN, there will also be a current limit. You can add the following statement to the /boot/firmware/config.txt file to remove the current restriction: usb_max_current_enable=1
- PoE HAT (H) For Raspberry Pi 5,Suitable For Raspberry Pi 5 / CM 5, Supports IEEE 802.3af/at Network Standard,5V 5A Output, Compatible With Raspberry Pi 5 Official Case

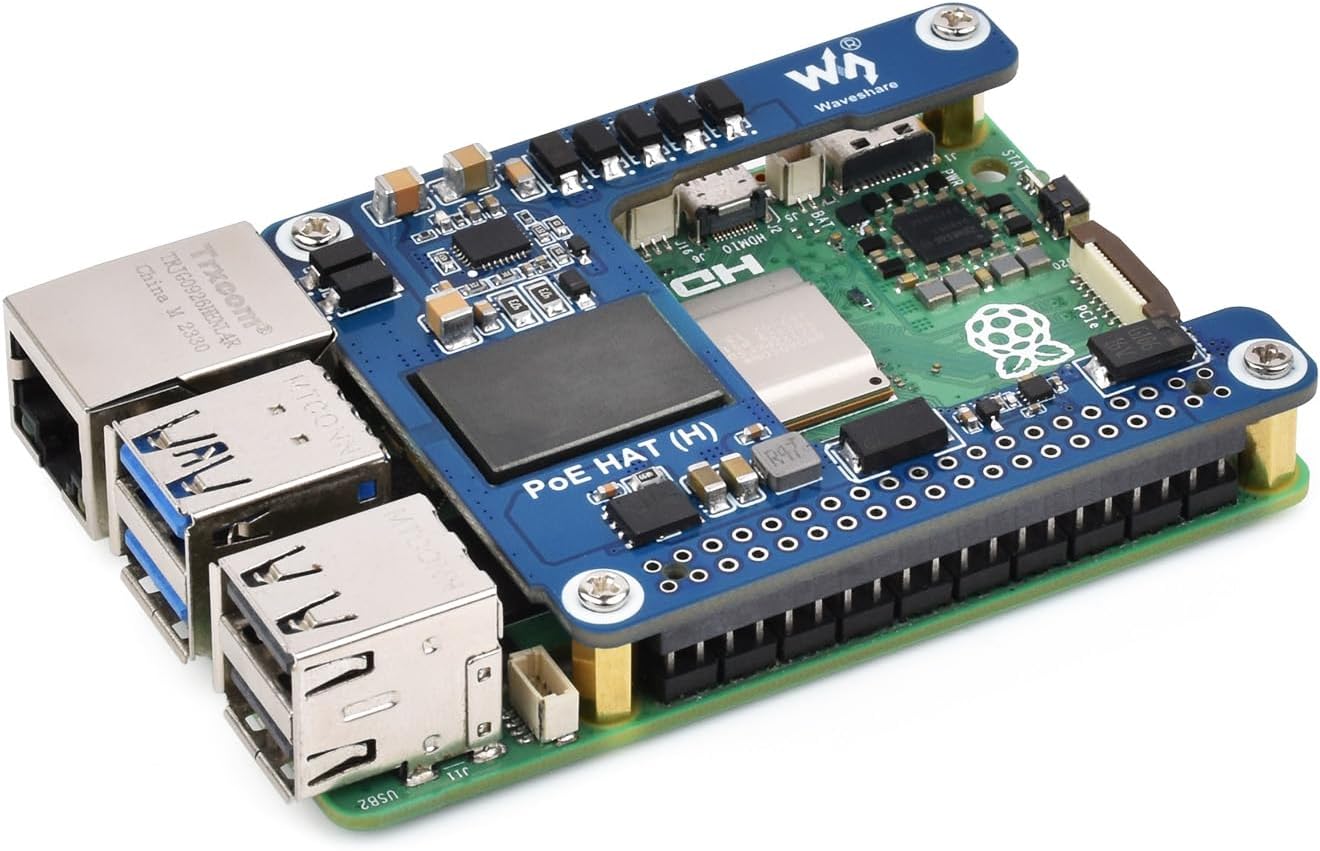

- Suitable For Raspberry Pi 5 / CM 5,Standard Raspberry Pi 40PIN GPIO Header, Easy To Assemble Into The Official Case
- Power Over Ethernet,Providing Both Network Connection And Power Supply For The Raspberry Pi 5 / CM 5 In One Cable
- Installation With Raspberry Pi 5 Official Case
- Compatible With Raspberry Pi 5 Official Active Cooler
| UPC | 788046389753 |
|---|---|
| Brand | waveshare |
| Model Name | PoE HAT (H) |
| Item Weight | 0.15 Kilograms |
| Manufacturer | Waveshare |
| Model Number | PoE HAT (H) Acce A for Pi5 |
| Mfr Part Number | PoE HAT (H) Acce A for Pi5 |
| Processor Brand | ARM |
| Processor Count | 1 |
| Operating System | Linux |
| Compatible Devices | Raspberry Pi 5, Raspberry Pi CM 5 |
| RAM Memory Technology | LPDDR4 |
| Connectivity Technology | Ethernet |
