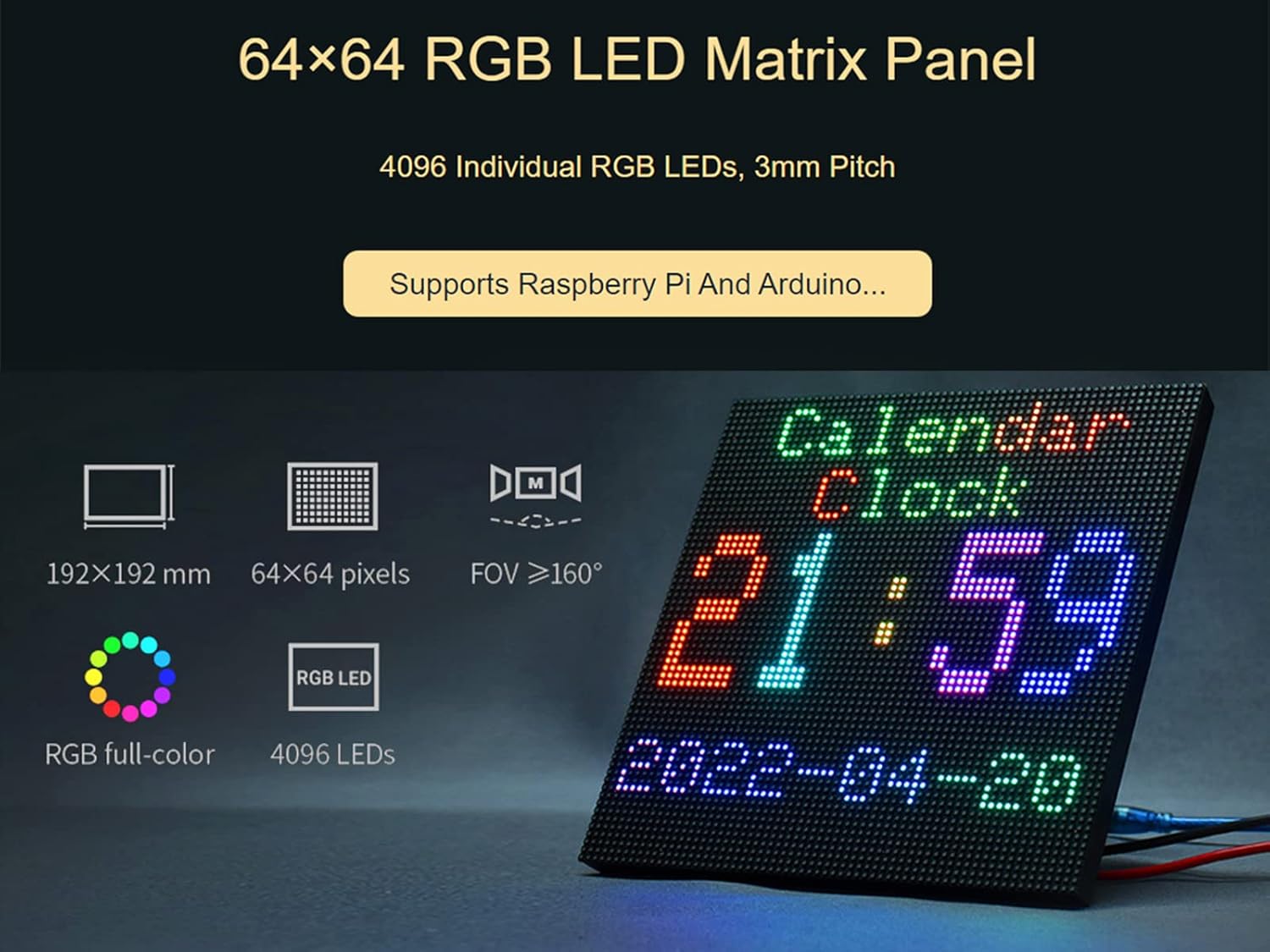

Waveshare RGB Full-Color LED Matrix Panel 3mm Pitch 64×64 Pixels 4096 Individual RGB LEDs Adjustable Brightness Compatible with Raspberry Pi

Overview 64×64 pixels LED matrix panel full-color display, with 4096 RGB LEDs onboard, 3mm pitch, supports Raspberry Pi and Arduino, etc. It provides supporting open source demos and tutorials, suitable for makers or electronics Enthusiasts start learning, or DIY secondary development into other desktop or wall-mounted display applications. Features 4096 individual RGB LEDs, full-color display, adjustable brightness 64×64 pixels, 3mm pitch, allows displaying text, colorful images, or animation 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display Onboard two HUB75 headers, one for controller data input, one for output, chain support Provides open-source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on, If you need, please contact us via buyer messages. Note 1. This product is a bare screen and needs to be displayed with the main control board such as Raspberry Pi, and Arduino. 2. The new version of Raspberry Pi no longer supports wiring pi, if you must use the Raspberry Pi board, please refer to the github information: Demo, rgb-led-matrix/blob/master/wiring.md wiring reference 3. The power supply ports (VCC and GND) of the display screen are 5V power supply, do not connect to other power supply voltages, so as not to burn the display screen Package Content RGB-Matrix-P3-64x64 LED matrix and accessories x1 Power supply terminal adapter x1 16P wire ~30cm x1

• 64×64 pixels RGB full-color LED matrix panel, adjustable brightness 4096 individual RGB LEDs bare screen compatible with Arduino, Raspberry Pi
• 3mm pitch RGB LED full-color display allows displaying text, colorful image, or animation, 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
• Chainable design, onboard two HUB75 header, one for controller data input, one for output, multi LED matrix panel can be chained together to build a larger panel via HUB75 input/output header
• Viewing angle ≥160°, 1R1G1B pixel form, synchronization control type, 1/32 scan driving, 5V / 4A (VH4 header input) power supply, power ≤20W
• Development Resources and Technical Support are provided, please feel free to contact us if you need!
