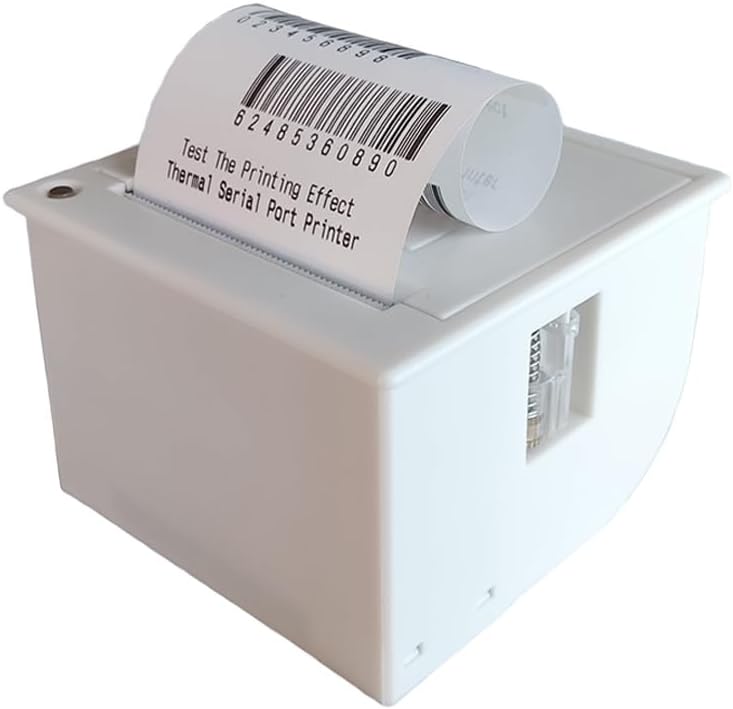

White 58mm Embedded Thermal Bill Printer RS232/TTL Micro Panel Ticket Thermal Receipt Serial Printer Module 5 to 9V

The thermal receipt paper used by the printer is a common thermal paper roll on the market; This thermal receipt printer supports the voltage range between 5V and 9V, and the maximum voltage cannot exceed 9V. It is recommended to use 3A for current; The printer is mainly embedded in the equipment, so it is equipped with a 2Pin power terminal line. The printer comes with its own paper bin, which can accommodate the paper roll with a diameter of 50MM, thus reducing the frequency of paper changing efficiently. Provide TTL+RS232 interface, which is convenient for you to choose different interfaces to connect to the upper computer. This printer also comes with a paper tearing device, which can quickly and conveniently tear off the printed receipt paper manually and quickly!This thermal bill printer can print clearly, and the paper bin can accommodate thermal paper rolls with a diameter of 50MM, which can be easily embedded in testing instruments to realize the function of data printing. The printer can be connected to platforms such as Arduino, MCU, Android, Linux and Windows, and Android provides a secondary development kit. You can easily print text, pictures, barcodes, QR codes, etc.Product packing list: Thermal Receipt Printer *1 (White); 2Pin Power Cord * 1; RS232/TTL Serial Port Line * 1; Thermal Paper Roll * 1; (Specification 57*40)In order to help you realize the development easily, we have compiled a more common example of instruction set printing according to customers' common instructions. After submitting the order, we will send you this printing example and development materials by email. You can change what you need to print according to our example. Super convenient!

• 58mm embedded panel thermal receipt printer has excellent performance, clear printing and beautiful structure, and is widely used in medical instruments, testing instruments and self-service vending machines. Can provide CAD or 3D drawings. It works perfectly with your device, making printing easier than ever. It is easy to be embedded in any type of printing instrument.
• This thermal bill printer can be connected to Arduino, MCU, Android, Linux, Windows and other platforms, and Android provides a secondary development kit. You can easily print text, pictures, barcodes, QR codes, etc. Provide ESC/POS printing instruction set and development materials.
• The printer supports a voltage range between 5v and 9V, and the maximum voltage cannot exceed 9v. It is recommended to use 3A for current; The label printer provides two physical interfaces, namely RS232+TTL, which is convenient for you to choose different interfaces to connect to the upper computer, and can effectively avoid confusion due to insufficient interfaces of the upper computer.
• The printer supports printing barcode, QR code, text, pictures and other information, and supports secondary development. The printer has the function of automatic paper cutting, and supports full cutting or half cutting. We have compiled an example of instruction set printing according to customers' common instructions. Due to limited space, please feel free to contact us for more information.
• Open the paper bin cover on the front panel to change the paper, which is simple and convenient to operate. The structure is beautiful. There are fixed sliders on both sides of the printer. By screwing the screws on both sides in the paper bin, the slider can be moved up and down to fix the printer on the upper computer equipment.
