Wireless High Voltage Ratio Tester High Voltage Current Transformer High Pressure Tester with Ratio Measurement Range 1 to 500

Technical specifications Power: DC6V alkaline dry battery LR03 (1.5V AAA×4) continuous operation 30 hours (batteries are not included in the shipment!!) Test method:lamp CT Range: 0.0A～800A; Resolution: 0.1A; Precision: ±0.5%FS Secondary current testing accuracy: range: 0.00mA～800A; resolution: 0.1A; accuracy: ±0.5%FS Range: 0.00mA～5A; Resolution: 0.01mA; Accuracy: ±0.5%FS Measuring range of ratio:1～500 Variable ratio resolution:0.1 Primary current clamp size: Jaw size: φ48mm; external dimensions: 76mm×255mm×31mm; Secondary current clamp size: Jaw size: φ8mm; external dimensions: 137mm×40mm×19.5mm. Gear shift: full-automatic gear shift Sampling rate: 3 times / sec. Data storage: 3000 groups, press the left arrow key to keep the data and automatically numbered storage (power down or replace the battery will not lose data) Auto shutdown: the meter will shut down automatically after about 15 minutes of powering on. battery voltage: when the battery voltage is lower than 4.8V, "" display, remind to replace the battery Primary current clamp transmission distance: wireless transmission distance 100M Secondary current clamp connection line length:2M Display mode LCD: 128dots × 64dots; backlight function, suitable for dim places LCD size display field: 44mm × 27mm Host size:78mm×165mm×42mm Instrument quality: 5kg (including toolkit and insulating rod) External interference: avoid strong electromagnetic field; avoid 433MHz, 315MHz same frequency interference. Working temperature and humidity:-15℃～50℃;below 70%Rh Storage temperature and humidity:-10℃～60℃;below 70%Rh Insulation pole size: φ32mm, 1m/section, 5 sections Voltage resistance of insulating pole:110KV Insulation strength mainframe and tester: AC1000V/rms (between shell and screw)

• The mainframe LCD display is clear at a glance, and it also has a large storage space, capable of storing 3,000 sets of data.
• The current clamp is made of high-performance PoMo alloy and magnetic shielding technology, which is virtually unaffected by the external magnetic field, ensuring high precision, high stability and high reliability for year-round uninterrupted monitoring.
• Wireless HV Current Transformation Ratio Tester breaks through the traditional structure, specializing in on-line measurement of high-voltage current transformer in service under 60KV, primary and secondary current of transformers, transformation ratio, and leakage current(it also with phase, polar, ratio difference, angle difference Indication).

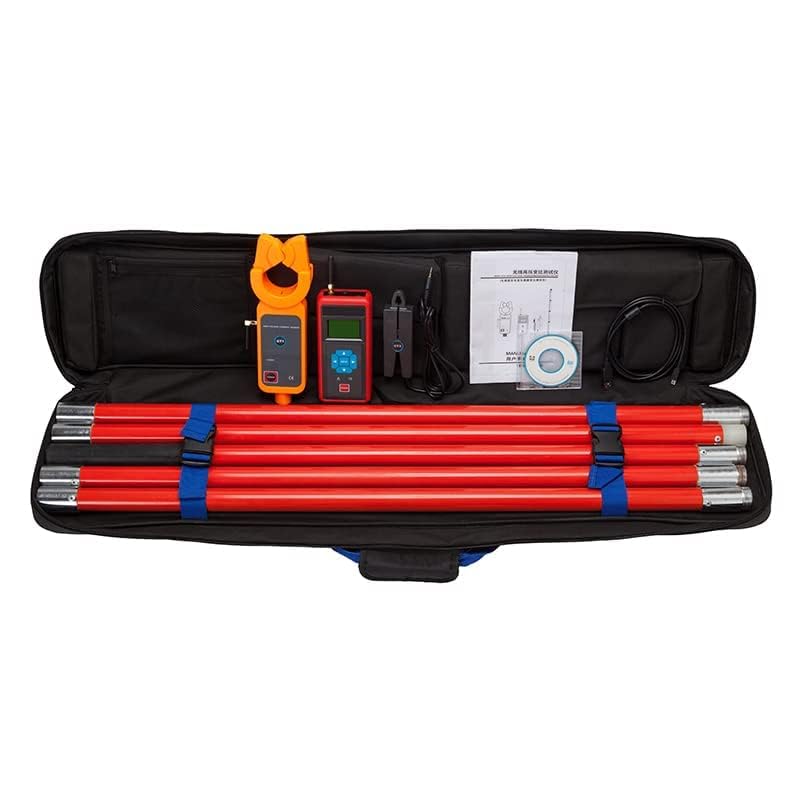

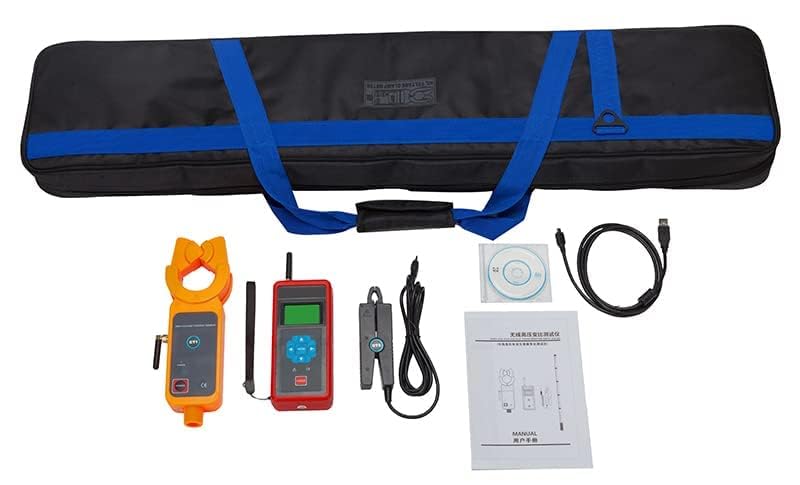

• It consists of high voltage detector, low-voltage secondary current clamp, main engine, high-voltage insulation rods. The wireless transmission signal is able to penetrate obstacles, such as walls of buildings. The signal’s linear transmission distance is about 30m. The HV high accuracy clamp ammeter can be used to measure the current and leakage current varying from 0.01mA to 1000A.
• Wireless HV Current Transformation Ratio Tester is called Wireless Transformation Ratio Tester for high voltage; meanwhile it can function as high/low-voltage clip-on ammeter, for high-altitude current tester, high-altitude leakage current tester, clip-on leakage current meter with high accuracy and other products.
