Wireless Leeb Hardness Tester Leeb Hardness Testing Equipment Metal Hardness Meter Durometer for 10 Common Metal Materials with Test Block Wireless Probe D HL/HRC/HRB/HB/HV/HS/σb

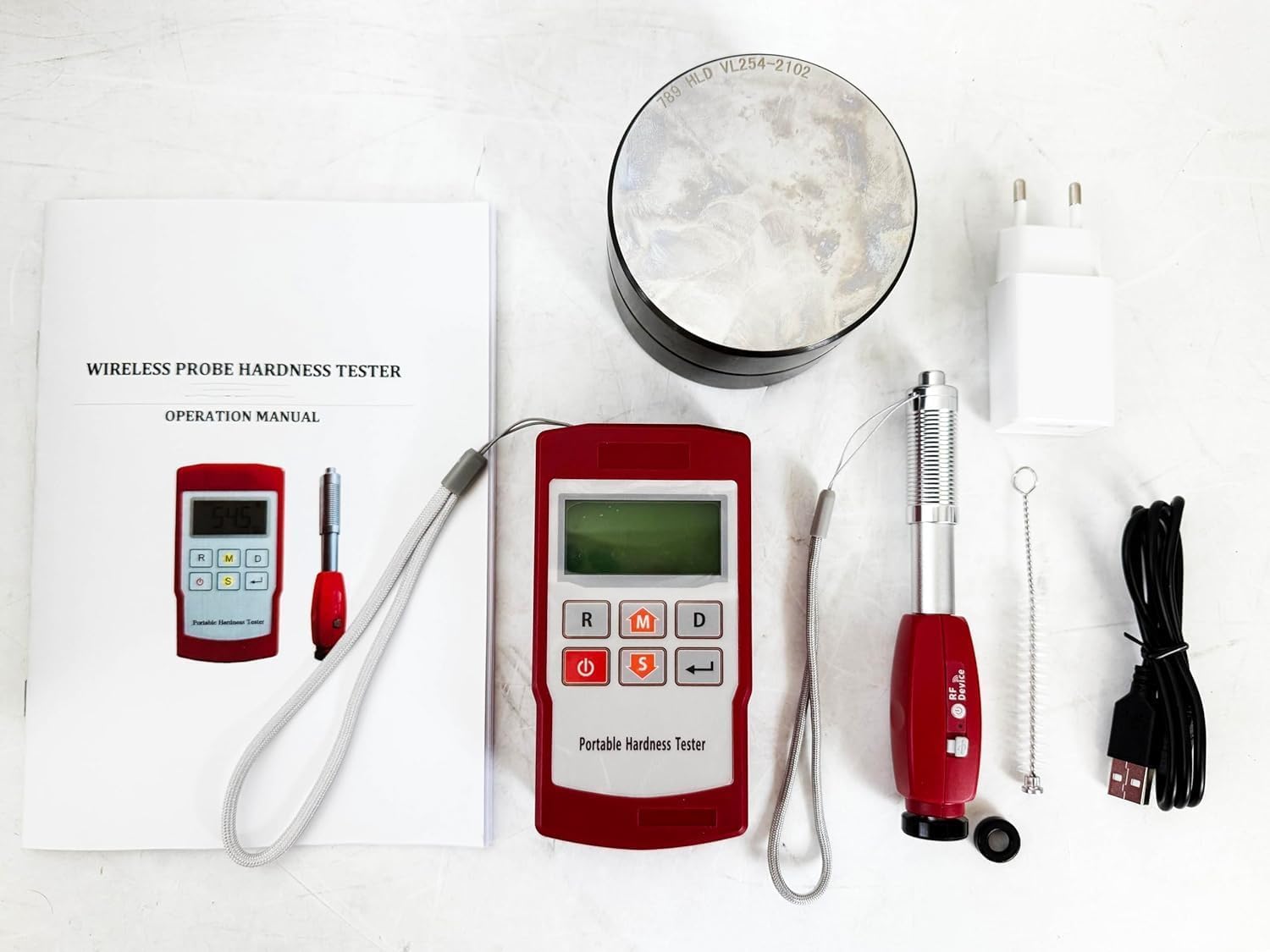

Introduction:◆This hardness tester is an innovation of portable leeb hardness tester. It works with a wireless probe, The wireless probe can transfer measuring hardness value to main unit wirelessly via RF module within the range of 10 meters. There is a rechargeable Li-ion battery inside RF probe and can be charged directly by USB port of PC. The main unit with LCD display can be placed around anywhere. Besides, the main unit with magnetic housing can also be attracted upon to the surface of workpiece to avoid of dropping to damage. Advantages:◆1. wireless probe ◆2. Universal impact direction mode, it does not need to set up different impact direction.◆3. Linear accuracy for any angles ◆4. Different probe can be indentified automatically ◆5. No compensation for impact direction ◆6. Dual values ( Leeb value and one conversion value) can be displayed at the same screen ◆7. Ten testing materials including forged steel Technical Specifications◆Methods of measurement: measurements of hardness on the Richter scale◆Accuracy / repeatability: ±HRC0.2◆Hardness scale: HL/HRC/HRB/HB/HV/HS/ σb ◆Measuring range: HL170-960/HRC17-69/HRB13-101.7/HB20-655/HV80-940/HS32-99.5/ sigma B (RM) 255-2180N/mm2◆Communication distance: open area 10m◆Impact direction: full angle◆Impact device: Wireless probe D◆Storage capacity: 300 data can be stored and read again◆Statistics: automatic calculation◆Calibration: user can calibrate by himself◆Automatic shutdown;Low power prompt◆Alarm: upper and lower alarm◆Power supply, 2 1.5V, AA alkaline battery (host), 3.7V lithium rechargeable battery, USB interface charging (wireless probe)

• ◆(1)Big LCD display with backlight gives exact and clearly reading although you stay at the somber conditions.
• ◆(2) Leeb Hardness Tester is no need to set up impact direction when taking measurement by any angle.
• ◆(3)Measure the hardness scale HL HRC HRB HB HV HS and strength σb.
• ◆(4)Memories with 300 data, data can be re-readable easily Customer re-calibration allowed.
• ◆(5)Leeb hardness tester works with a wireless probe, The wireless probe can transfer measuring hardness value to main unit wirelessly via RF module within the range of 10 meters.
