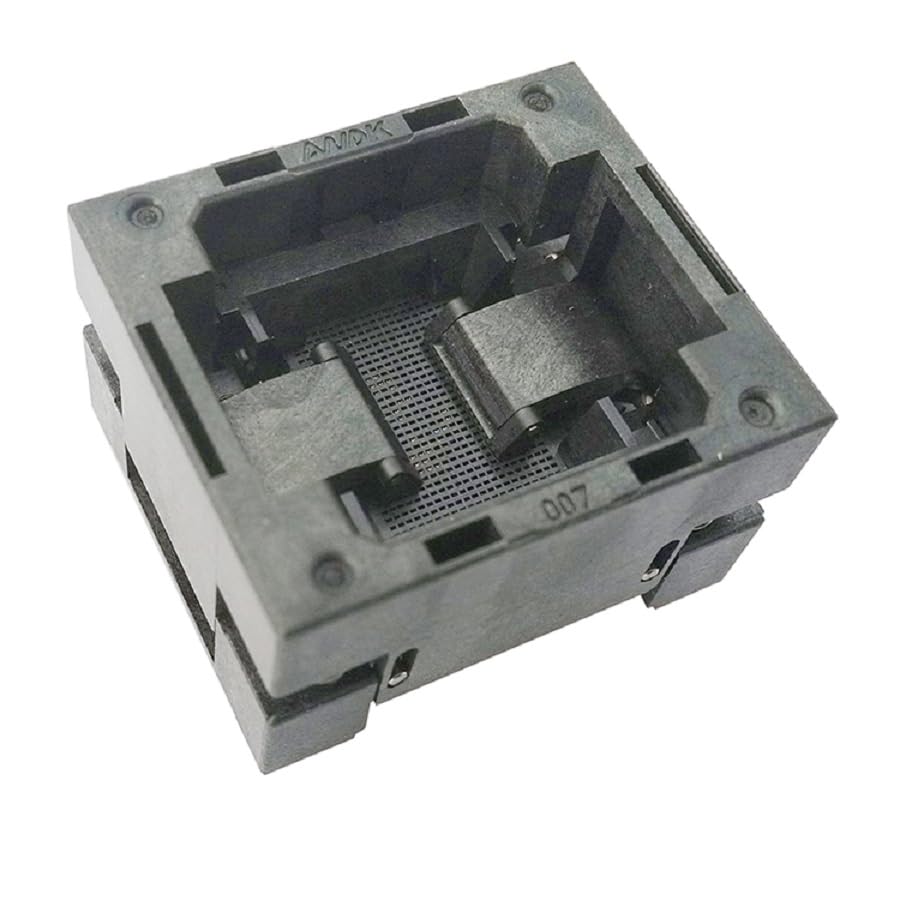

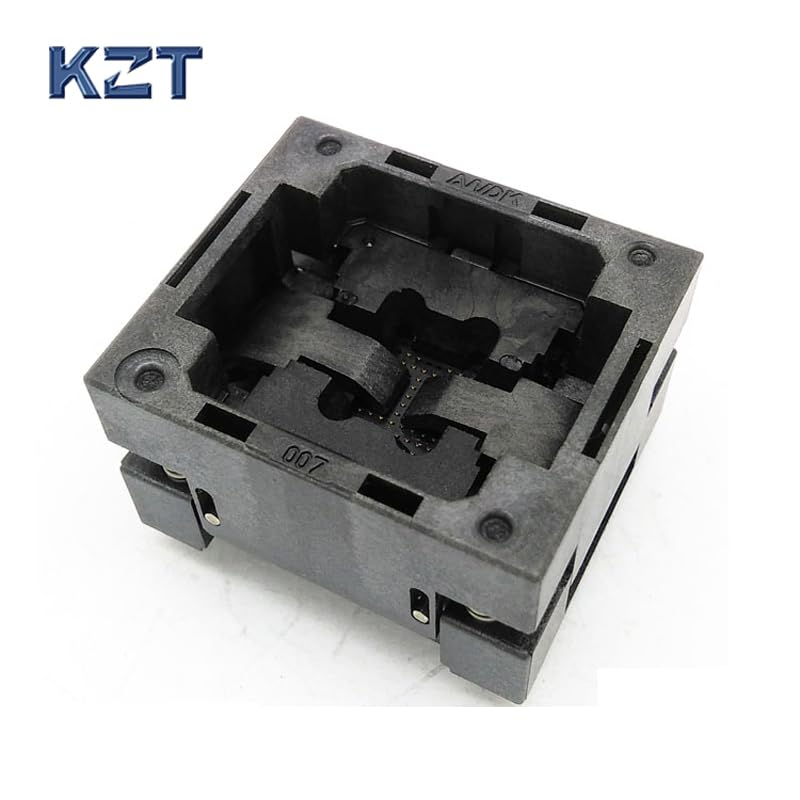

Wiring Connecting Terminals - BGA115 Open TOP Burn in Socket Pitch 0.8mm IC Size 12 * 18mm BGA115(12 * 18)-0.8-TP01NT BGA115 VFBGA115 Burn in Programmer Socket

BGA115 OPEN TOP burn in socket pitch 0.8mm IC size 12*18mm BGA115(12*18)-0.8-TP01NT BGA115 VFBGA115 burn in programmer socketSpecifications:Part number:BGA115(12*18)-0.8-TP01NTIC Package includes:BGA115 , VFBGA115Pin Pitch:0.8mmPin Count:115pinsIC Size:12*18mmStructure:OPEN-TOPMaterial & Performance:socket Body: PEIContacts:Beryllium Copper AlloyContact Plating:Gold over NickelOperation Force:2.0KG min, the more PINs the greater force.Contact Resistance:50m maxDielectric:700V AC for 1 minuteInsulation Resistance:1,000M 700V DCMax Current Capacity : 1ATemperature Rating:-55~+175Life Span 25,000 Times (Mechanical)A:Tips:, ,please leave message to us.Thanks. B.BGA socket New creationa.connect with PCB ways InnovationWelding structure : No need of welding structure:Way:Fix by welding Way:Fix by 4 screwsPin length1.83mm Pin length0.25mmTwo structure Features:1.Welding structure :Adopt traditional welding type to fix the socket and PCBA board , stable but waste time andeffort , and once the socket is welded , it cant be recycle .2.No need of welding structure :Adopt innovative screws locking type to fix the sockets and PCBA board , make sure contact isstable , meantime shorten the assembly time , time-saving and reduce effort , and socketcan be removed from the PCBA board , recycle and reduce test cost .b.Connect with IC ways Innovation1.Open-top/Clamshell structure2.Accommodates pitch :4/0.5/0.65/0.8/1.0mm3.Compact size and low Actuation Force4.Field exchangeable package location plate5.Ucontact support any type of solder ball shapeBall\\no ball\\damaged ball,the drop of contactsurface is more than 0.2mmC.HD picture to show the detailed produ

• Package Includes: BGA115 , VFBGA115 | Pin Pitch:0.8mm | Pin Count:115pins | IC Size:12*18mm | Structure:OPEN-TOP | Material & Performance: | socket Body: PEI | Contacts:Beryllium Copper Alloy | Contact Plating:Gold over Nickel | Operation Force:2.0KG min, the more PINs the greater force. | Contact Resistance:50m max | Dielectric:700V AC for 1 minute | Insulation Resistance:1,000M 700V DC | Max Current Capacity : 1A | Temperature Rating:-55~+175 | Life Span 25,000 Times (Mechanical) | A:
• 1.Welding structure :
• Adopt traditional welding type to fix the socket and PCBA board , stable but waste time and
• effort , and once the socket is welded , it cant be recycle .
• 2.No need of welding structure :
