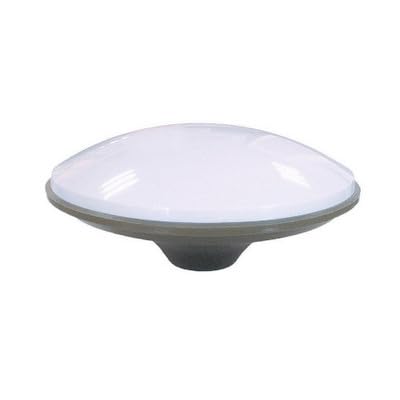

Wiring Connecting Terminals - JCA228E L1 L2 L5 High Precision RTK GNSS External Antenna with TNC Female Connector
4.1 (99 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212345139 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212345139 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

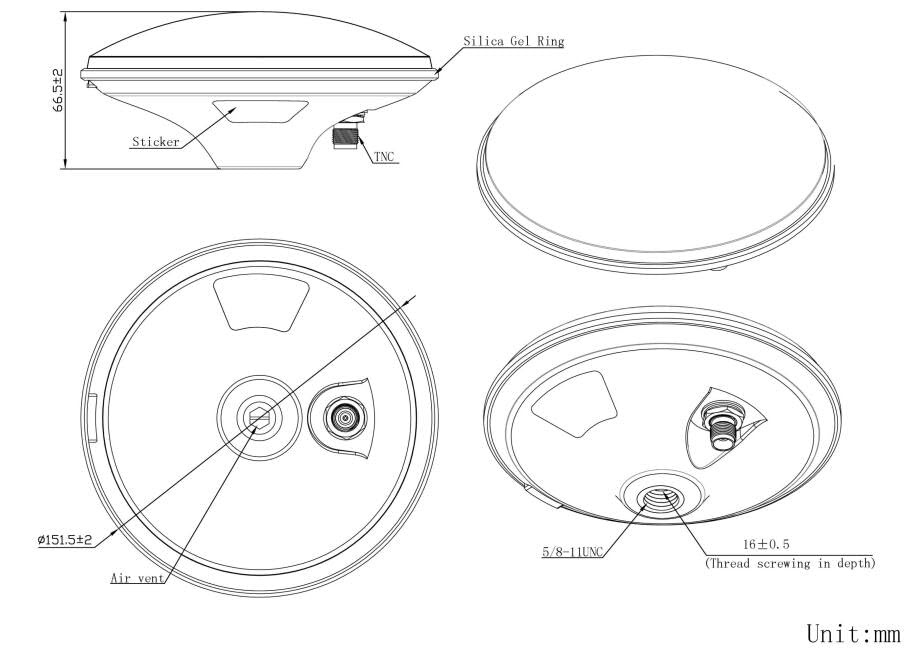

JCA228E L1 L2 L5 High Precision RTK GNSS External Antenna with TNC Female connector Item Specifications:Antenna Frequency GPS L1/L2/L5 GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5a/E5b/E6 Polarization RHCP Axial Ratio 3dB V.S.W.R 1.5 Peak Gain 5dBi Impedance 50 Phase Center Error 2mm Horizontal coverage angle 360 LNA Gain 40 2dB Noise Figure 1.5dB Passband fluctuation 1dB Supply Voltage 3~5.5V DC Current Consumption 45mA V.S.W.R 2.0 Mechanical Connector TNC-K Radome Material ABS Mounting Method Screw Environmental Operating Temperature -40 ~+85 Relative Humidity Up to 95% Ingress Protection IP67 (exclude Air vent in screw hole) Environmentally Friendly ROHS Compliant JCA228 SeriesRelated GNSS AntennaClick Here!!!
| Brand | Generic |
|---|---|
| Manufacturer | CHIKIMIKI |
