Worm Gearbox Speed Reducer NRV050-VS Double Input Shaft 14mm Ratio 5:1-100 :1

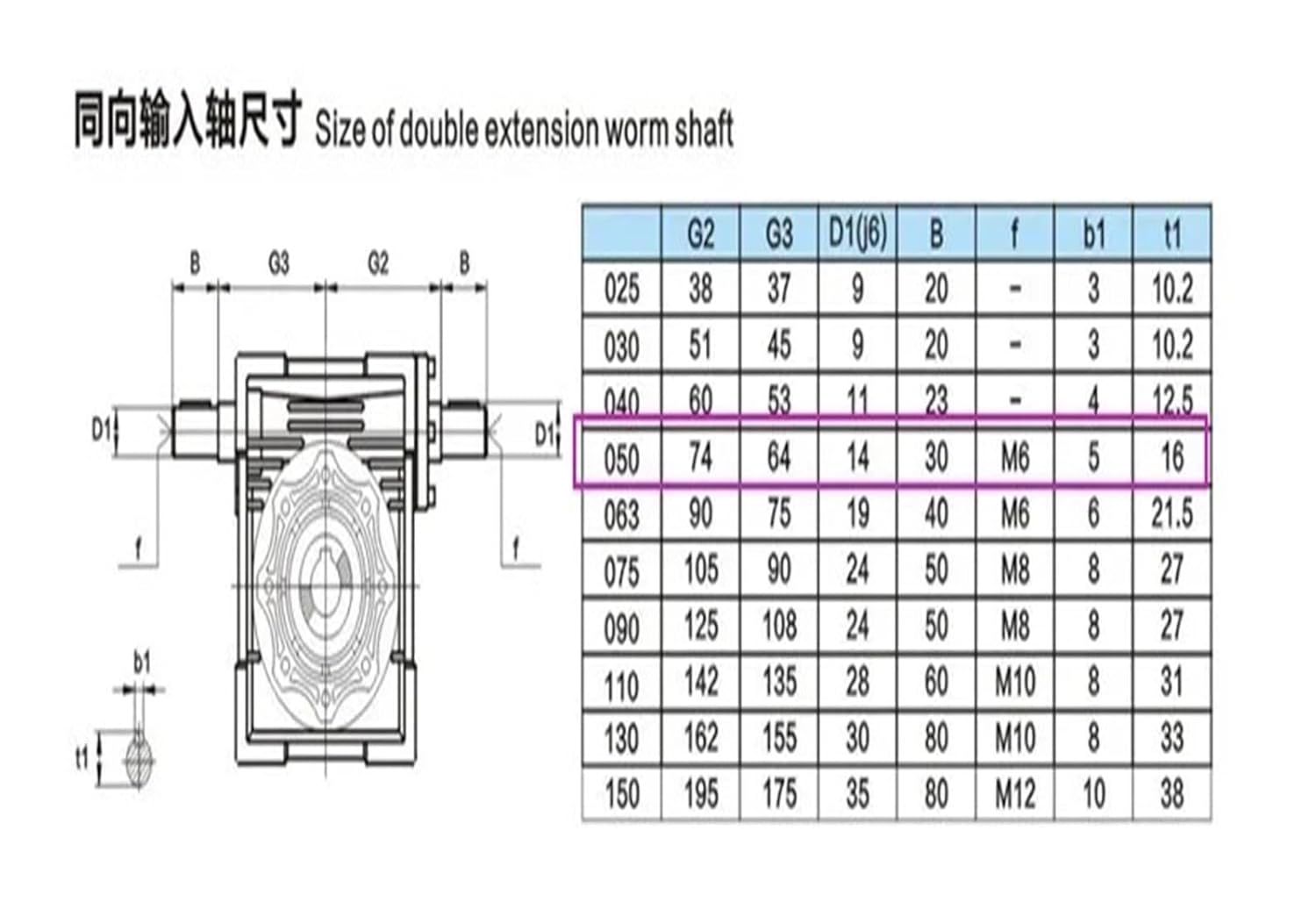

Worm Gearbox Speed Reducer NRV050-VS double input shaft 14mm Ratio 5:1 - 100 :1Worm Reducer*1pcNote:With gear ratio 5:1,7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1,40:1, 50:1, 60 :1, 80:1, 100:1for customers. this link with ratio This is double shaft input reducer and hole output. if need shaft output, please contact us.We also have NMRV 25/30/40/63/75/90 Models, if need, contact us please.Color: silver and blue (sometimes just one color)Material for worm reducer:housing:aluminum alloy die castWorm gear: Nodular cast iron and bronzeFeature ofworm reducer gearbox:1) High quality aluminum alloy die cast gearbox2) High accuracy worm gear and worm shaft3) Less noise and lower temperature increase4) Easy mounting anc connection, high efficiencyDimensional drawing of worm reducer NRV050-VS:(unit:mm)We also have worm reducerparts such asoutput shft, torque arm and output flange,If you need to click on the following link to buy:NMRV50 Dual or Single output shaft:Torsion arm :NMRV50 Output flangeThe production line and stock view:Torque : 21N.m-89N.mModel Number : NRV050/RV50Output Power : 0.12KW - 0.75WInput Speed about : 1500rpmOutput Speed : Varies with changes in speed ratioOutput hole diameter : 25mm
