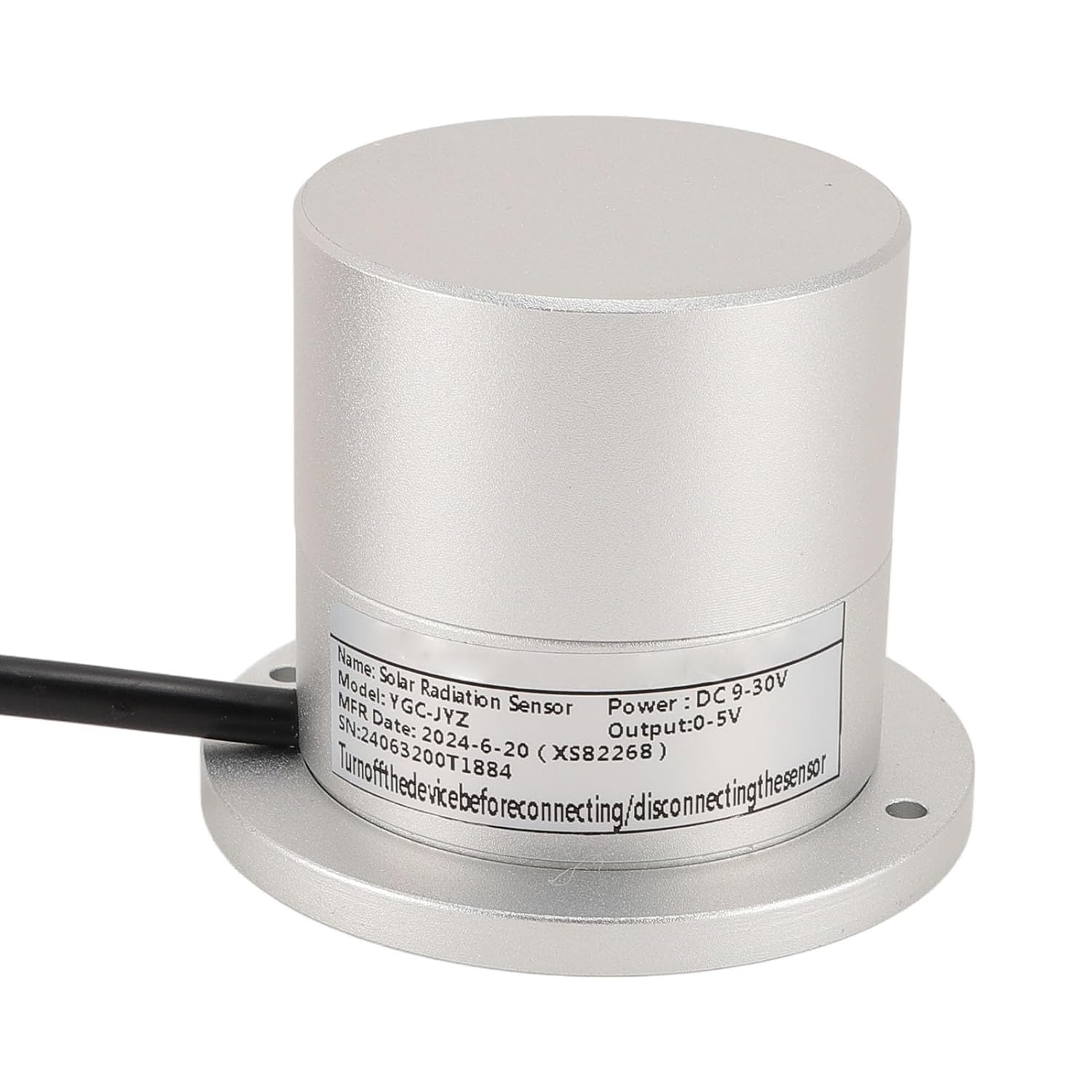

Sunshine Hour Meter Aluminum Pyranometer Solar Radiation Sensor for Construction Work (YGC-JYZ-KV-V)

1. SUPERIOR MEASURING CAPABILITIES This sensor can accurately measure total solar radiation within the spectrum range of 0.3 to 1.1μm. When placed down, it can also measure reflected radiation. Also, with a shading loop, you can measure scattered radiation. 2. ALUMINUM CONSTRUCTION - Made of premium aluminum alloy, this solar radiation sensor offers long-lasting durability. It uses a precise photosensitive component, ensuring superior stability and accuracy. 3. Weatherproof The solar radiation detector is equipped with a precise quartz glass cover created through precise cold optical processing, effectively protecting it from environmental factors that could affect performance. 4. EASY TO USE - The cover can protect the sensor from solar radiation during transportation and prevent it from damage in adverse weather. Simply twist and unscrew when in use. 5. WIDE APPLICATION - With a power supply range of 9-30V and low consumption of 0.48W, this sensor is suitable for a wide range of applications in meteorology, energy, agriculture, construction and more. Specification: Element Type: Solar Radiation Sensor Material: aluminium alloy. Weight: approx. 298.00g/10.5oz Product size: approx. 65x52x49mm/2.56x2.05x1.93in Bottom hole distance: approx. 57mm/2.24in Wire Order: Red Wire: Positive Power Green wire: negative power Cable : Signal Power supply: 9 to 30V Spectrum range: 300 to 1100 nm Resolution: 1W/m2 Measuring range: 0 to 1500W/m2 Sensitivity: 7 to 14 μV/W M-2 Accuracy: ±5% Load capacity: current output impedance RL≤250Ω Voltage output impedance RL≥1KΩ Response time: Cosine Answer: Non-linearity: Annual variation: Operating environment: temperature -40℃ to 60℃; Humidity ≤100%rh Power consumption: 0.48W For Modbus CRC checksum steps: 1. Initialize a 16-bit register to HEX FFFF, called the CRC Registry. 2. Xor The first 8 data bits with the low byte of the CRC register and store the result in the CRC record. 3. correct the contents of the register by one bit, filling the highest bit with 0 and check the lowest bit. 4. If the lowest bit is 0: Repeat step 3 (change again). If the lowest bit is 1: XOR the CRC register with the polynomial A001 (1010 0000 0000 0001). 5. Repeat steps 3 and 4 for a total of 8 turns, processing the complete 8-bit data. 6. Repeat steps 2 through 5 for the following 8-bit data. The final CRC record obtained is the CRC code (Byte low first, Byte high to last). Troubleshooting: The value displayed on the instrument is incorrect during output. This may be due to wiring problems or communicating port failure, preventing correct data acquisition. Check the wiring for correctness and stability, make sure the serial port is not being used by other devices, and verify that the serial port configuration is correct. How to use: 1. Make sure the mounting bracket is parallel to the ground. 2. Secure the sensor to the mounting bracket through the two mounting holes on the sensor with M3 screws and nuts. 3. Avoid disassembling the sensor during installation. Packing List: 1 x Solar Radiation Sensor 1 x Specification Note: 1. Check if the package is intact and check if the product model is consistent with the selection 2. Do not connect the wires with electricity, check the wiring is correct before turning on the power 3. The length of the sensor line will affect the output signal of the product, do not change when using 4. The sensor is an accurate device, do not disassemble the sensor, touch the sensor surface with cutting objects or corrosive liquids during use to avoid damage to the product 5. When the sensor is in use, remove the.

• [Robust Material] Built with aluminum alloy for durability and longevity, ensuring the sensor performance remains consistent over time.
• [Enhanced Stability] Uses precise photosensitive component for superior stability and accurate readings, ideal for long-term monitoring and analysis.
• [Versatile Use] Ideal for a variety of applications including weather, energy, agriculture and construction due to its wide power supply range and compatibility.
• [Efficient Design] Weatherproof sensor with quartz glass cover for protection against environmental elements, maintaining performance in various conditions.
• [Easy to Use] Easy to operate with a simple mechanism, making it convenient for transportation and use in various weather conditions.
